GF82.62-P-4220CW Speaker System, Component Description

GF82.62-P-4220CW Speaker System, Component Description
- except CODE (810) Sound system

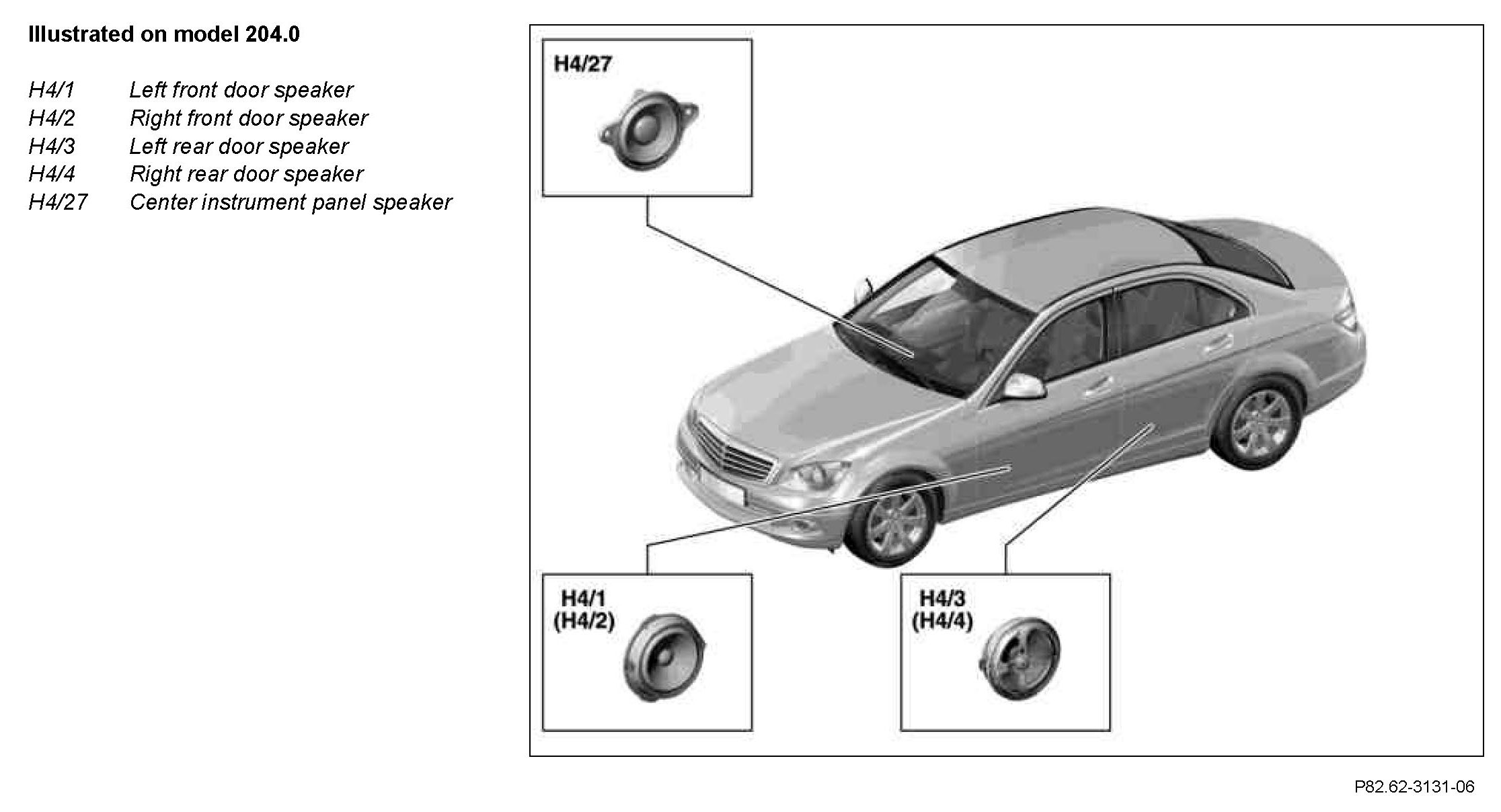

Component Identification:

Location
^ The left front door speaker and the right front door speaker are installed in the front left or right door, behind the respective door trim.
^ The center instrument panel speaker is installed in the center at the top of the dashboard.
^ The left rear door speaker and the right rear door speaker are installed in the rear left or right door, behind the respective door trim.

Task
During voice output, for hands-free mode or when outputting audio applications, the task of the speaker system is to convert the electrical signals into acoustic (audible) signals.
