GF82.61-P-0001-01CWB Auto Pilot System (APS), Location of Components



GF82.61-P-0001-01CWB Auto Pilot System (APS), Location Of Components
- with CODE (525) MB Audio 50 APS radio
- with CODE (511) Audio 50 APS with DVD changer

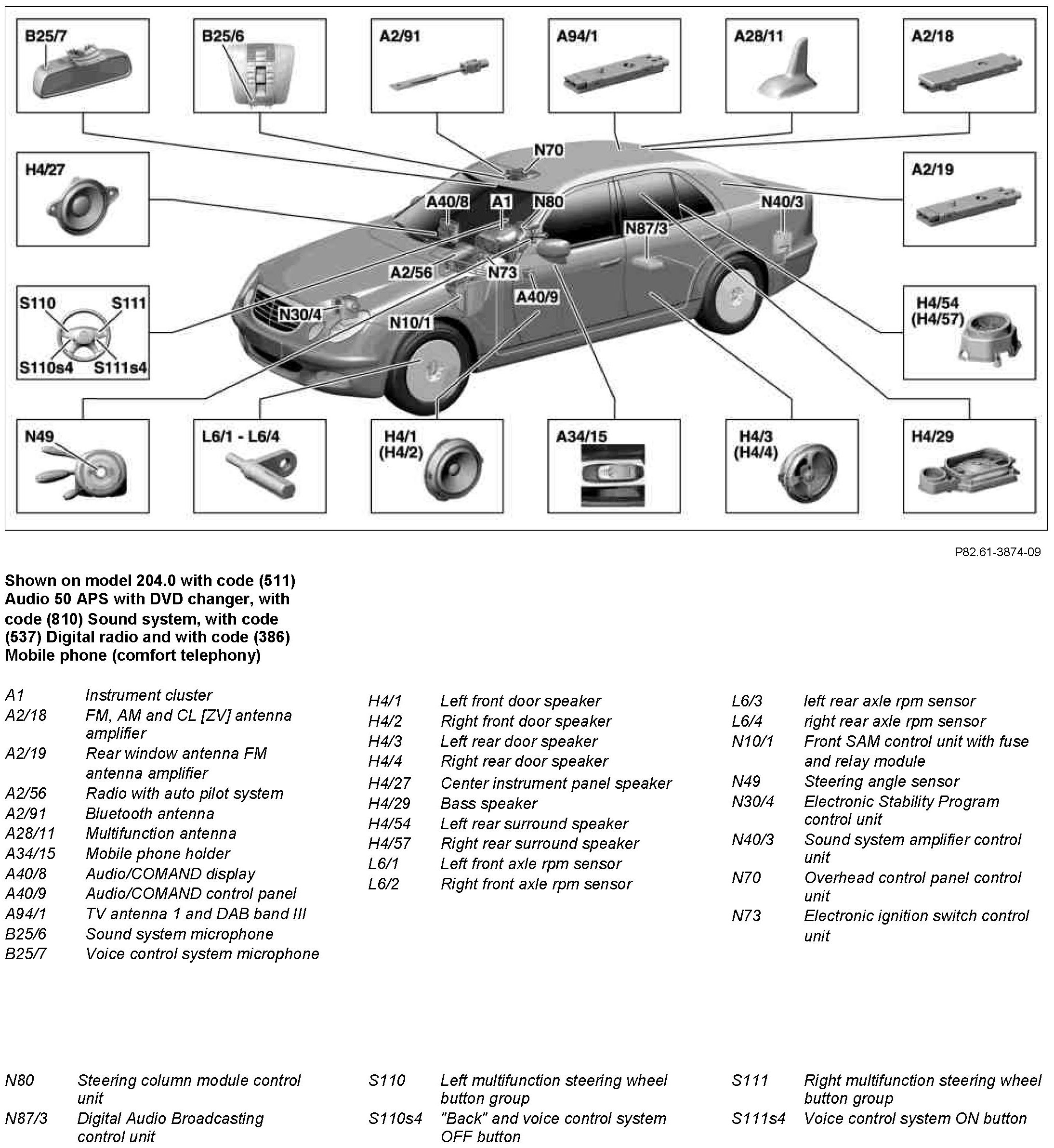

Component Identification:
