Procedures

AZ82.60-P-0014CW Retrofit IPod
- with CODE (442) Comfort multifunction steering wheel
- with CODE (523) MB Audio 20 radio
- with CODE (510) Audio 20 with CD changer
- with CODE (525) MB Audio 50 APS radio
- with CODE (511) Audio 50 APS with DVD changer
- with CODE (527) COMAND APS (with navigation)
- with CODE (512) COMAND APS with DVD changer
- with CODE (528) COMAND with DVD chanegr
- except CODE (518) Media interface

Component Identification:

Component Identification:

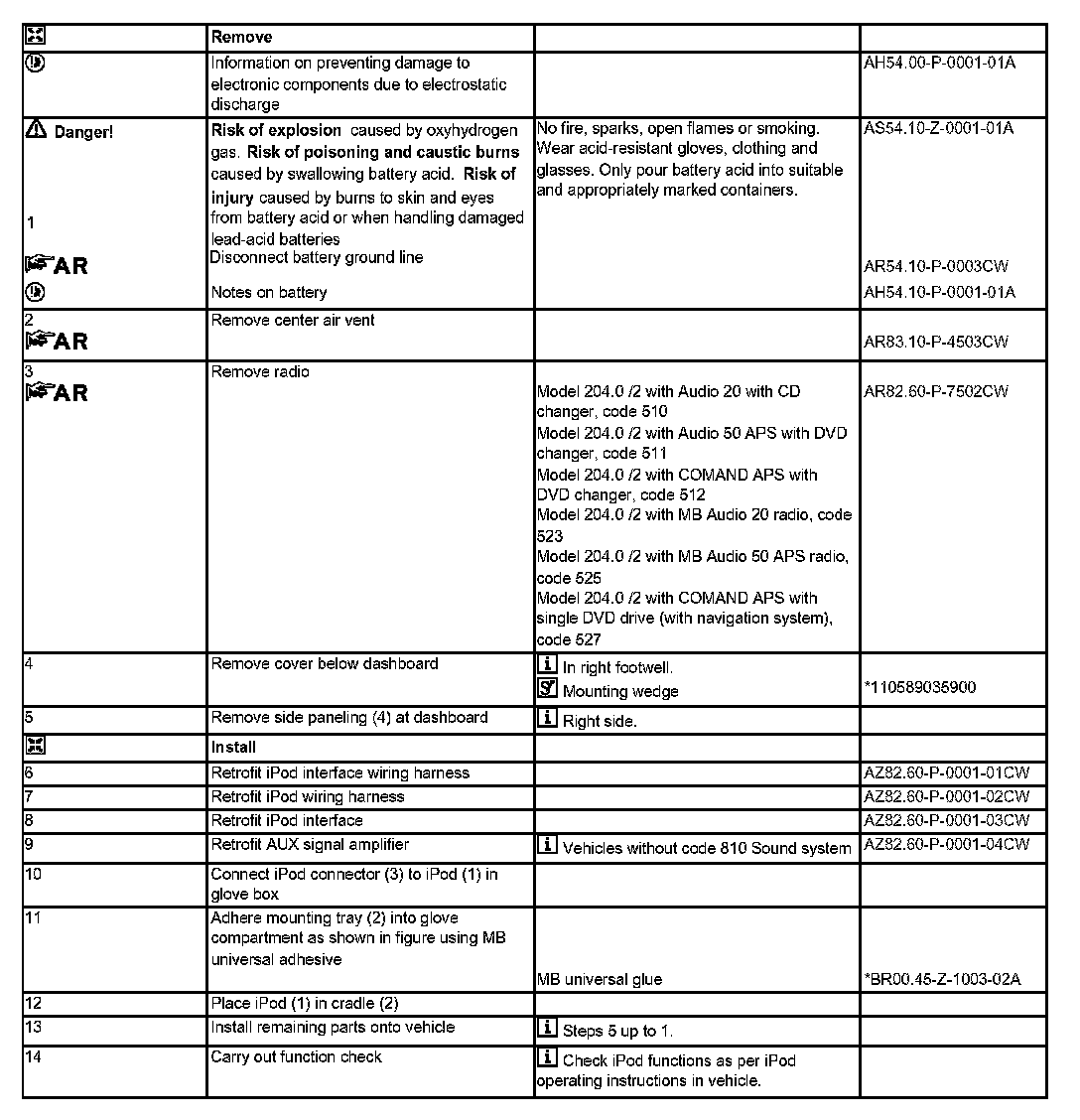

Steps 1 - 14:

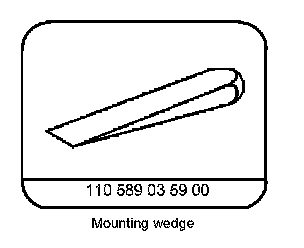

Special Tools:

Repair Materials:

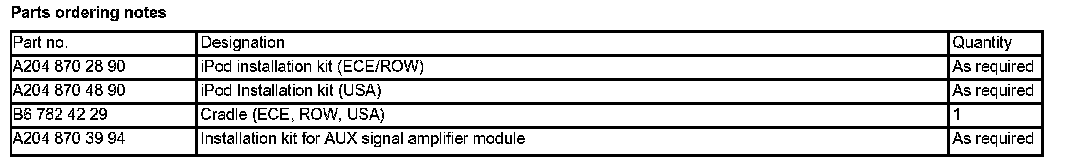

Parts Ordering Notes:
