GF82.62-P-5001CWK TV Antenna, Component Description

GF82.62-P-5001CWK TV Antenna, Component Description
- with CODE (498) Japan version
- Antenne 3

Component Identification:

Location

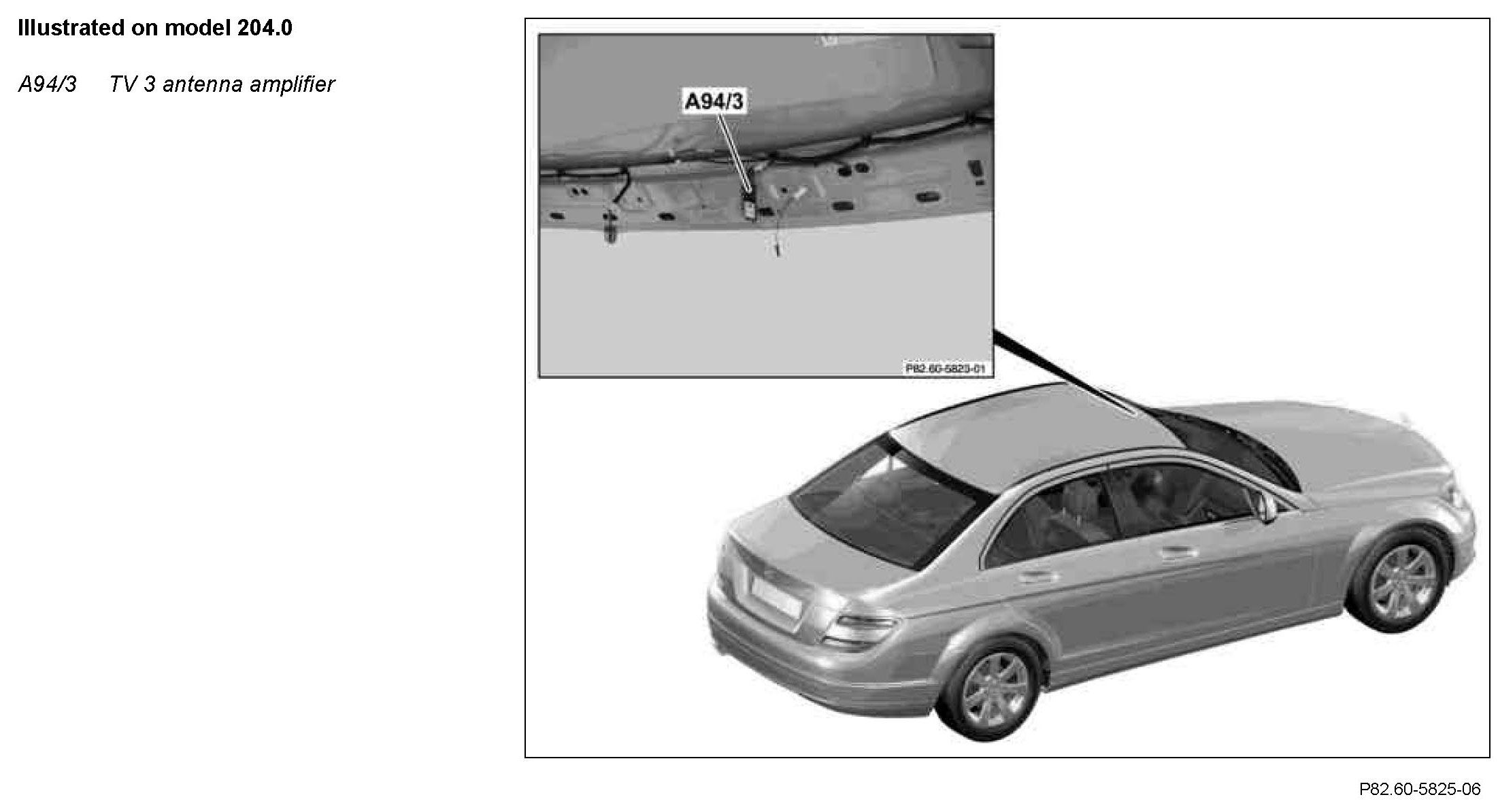

The TV 3 antenna amplifier is installed in the center, above the windshield, under the headliner, on the roof frame.

Task
The TV 3 antenna amplifier receives the TV3 signals and forwards them over a discrete line to the TV tuner control unit (N143).
