GF82.62-P-5001CW TV Antenna, Component Description

GF82.62-P-5001CW TV Antenna, Component Description
- except CODE (494) USA version
- Antenne 1

Component Identification:

Location

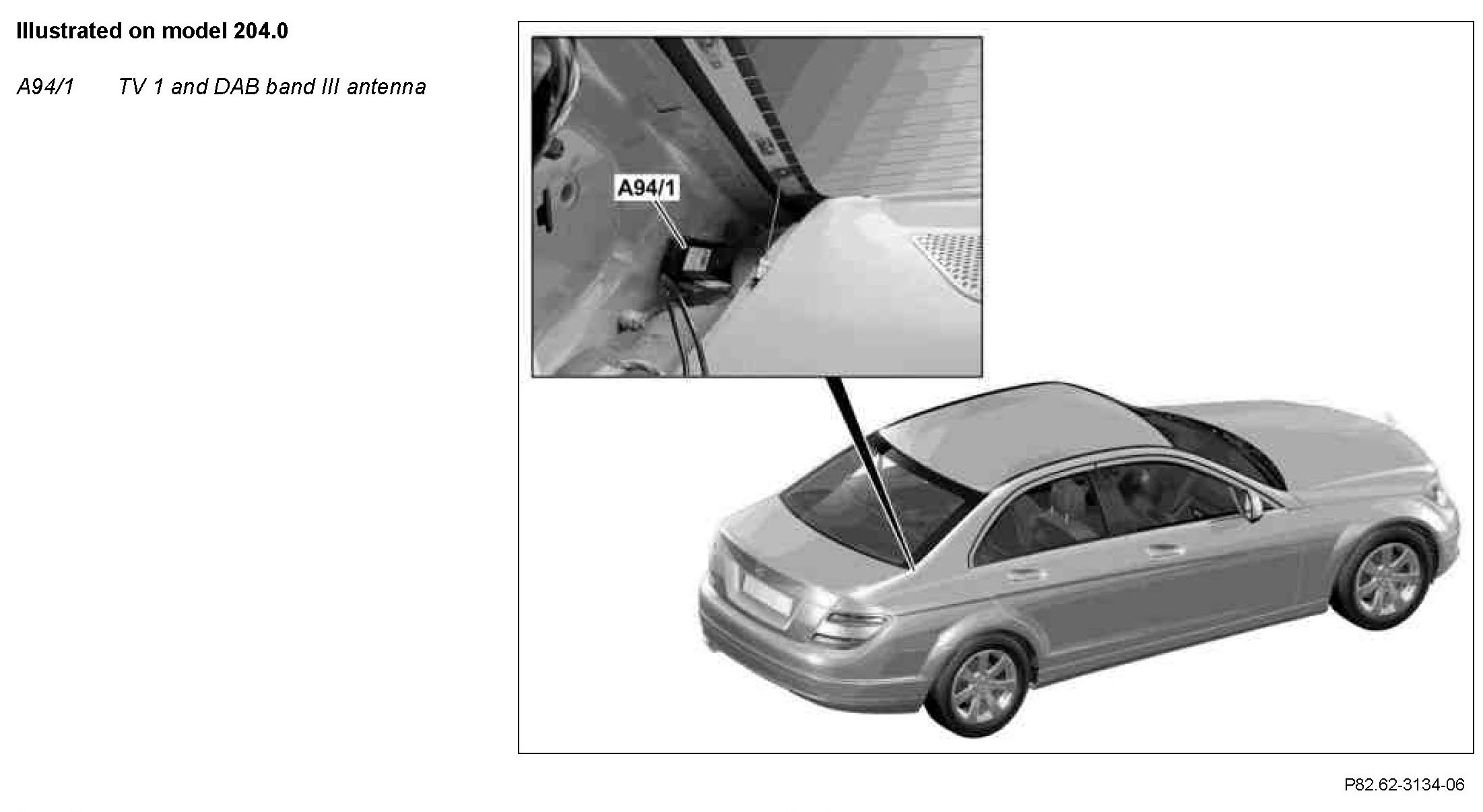

The TV 1 antenna amplifier and DAB Band III on model 204.0 is installed in the rear area at the right rear C-pillar under the side trim panel. The TV 1 antenna amplifier and DAB Band III on model 204.2 is installed above the right rear window under the panel.

Tasks
The TV 1 antenna amplifier and DAB Band III receives Digital Audio Broadcasting (Digital Radio) (DAB) signals and forwards them to the Digital Audio Broadcasting control unit (N87/3).
