GF54.65-P-0003-01CW Parktronic Location of Components



GF54.65-P-0003-01CW PARKTRONIC Location Of Components
- with CODE (220) Parktronic system (PTS)

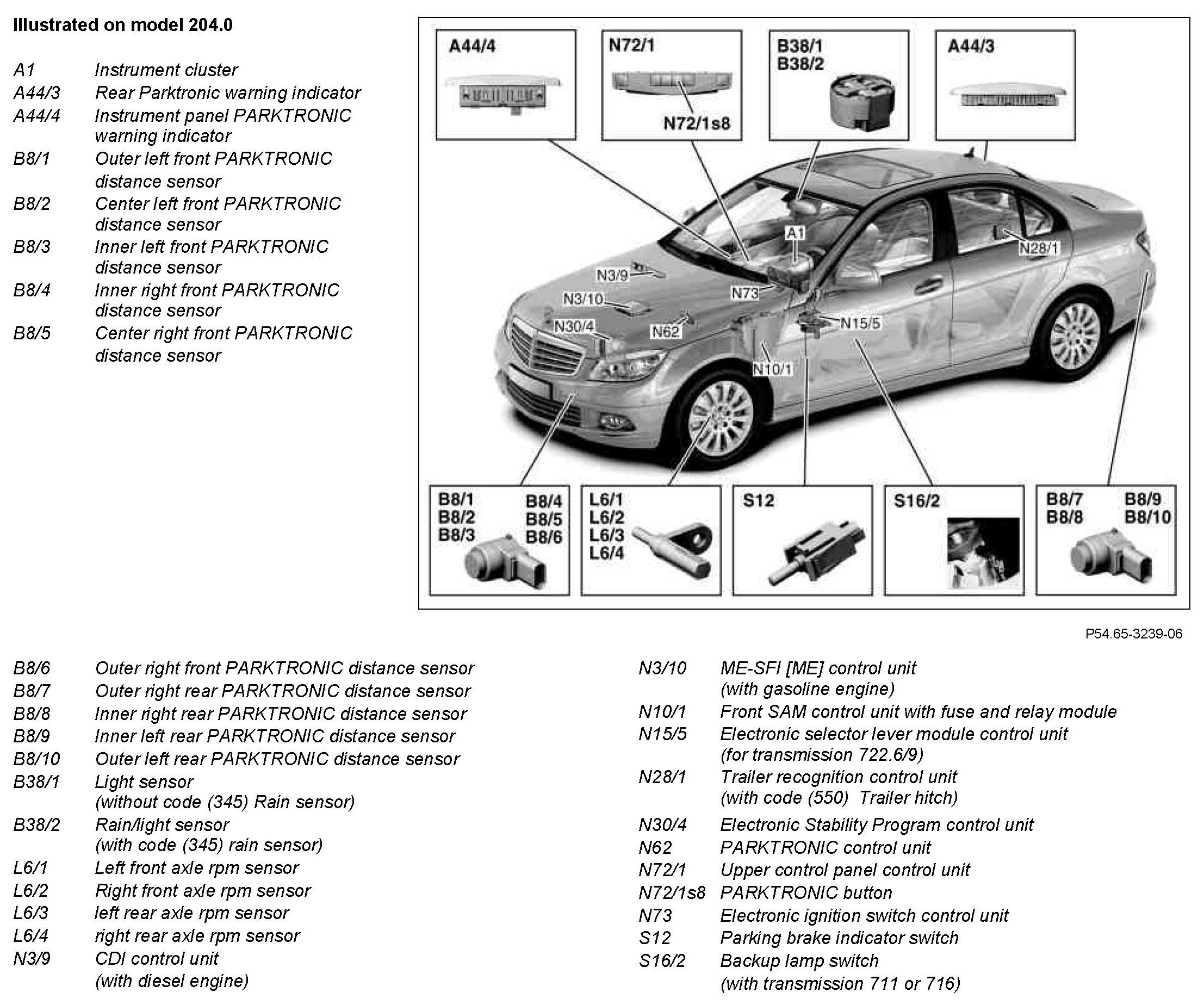

Component Identification:
