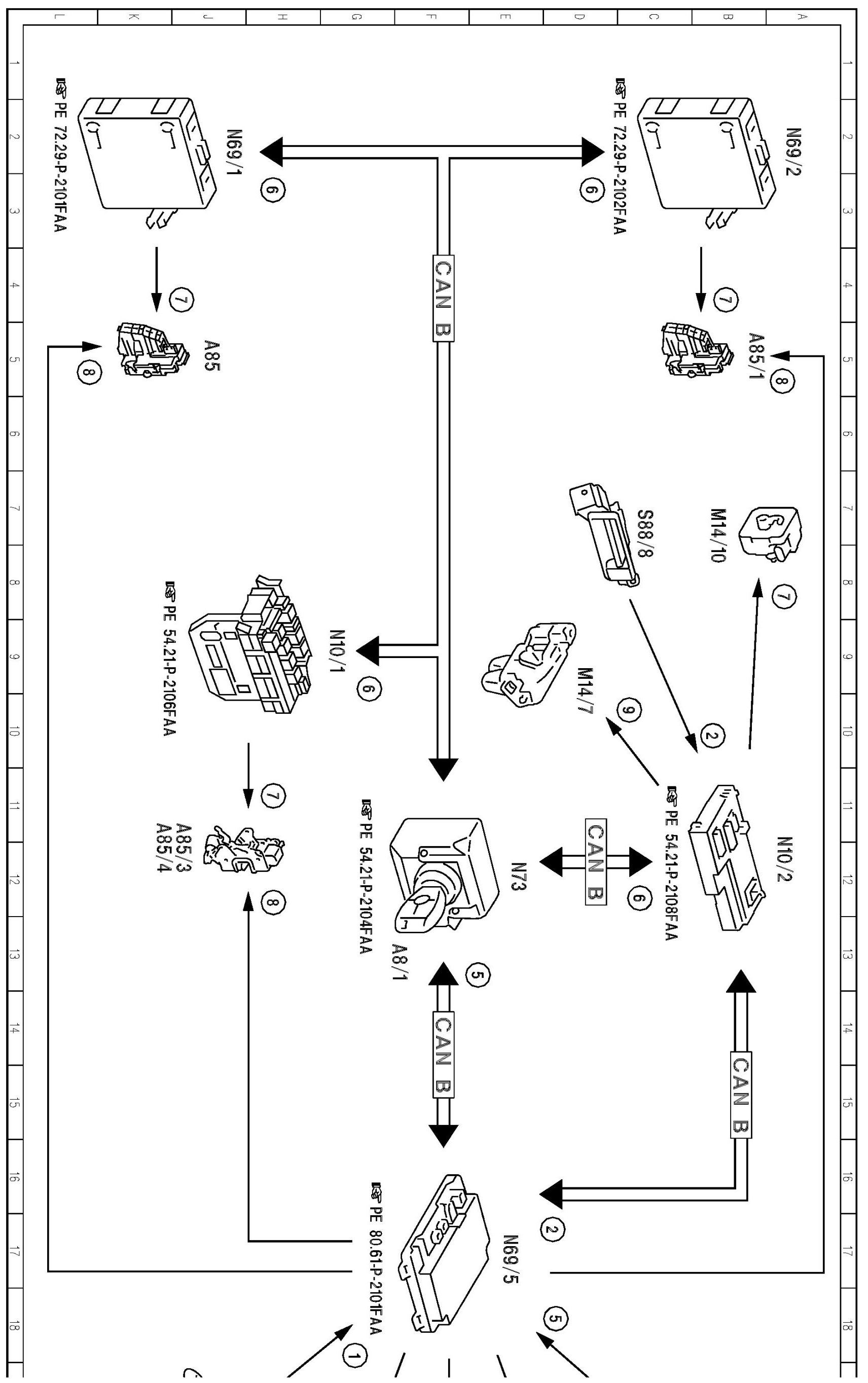

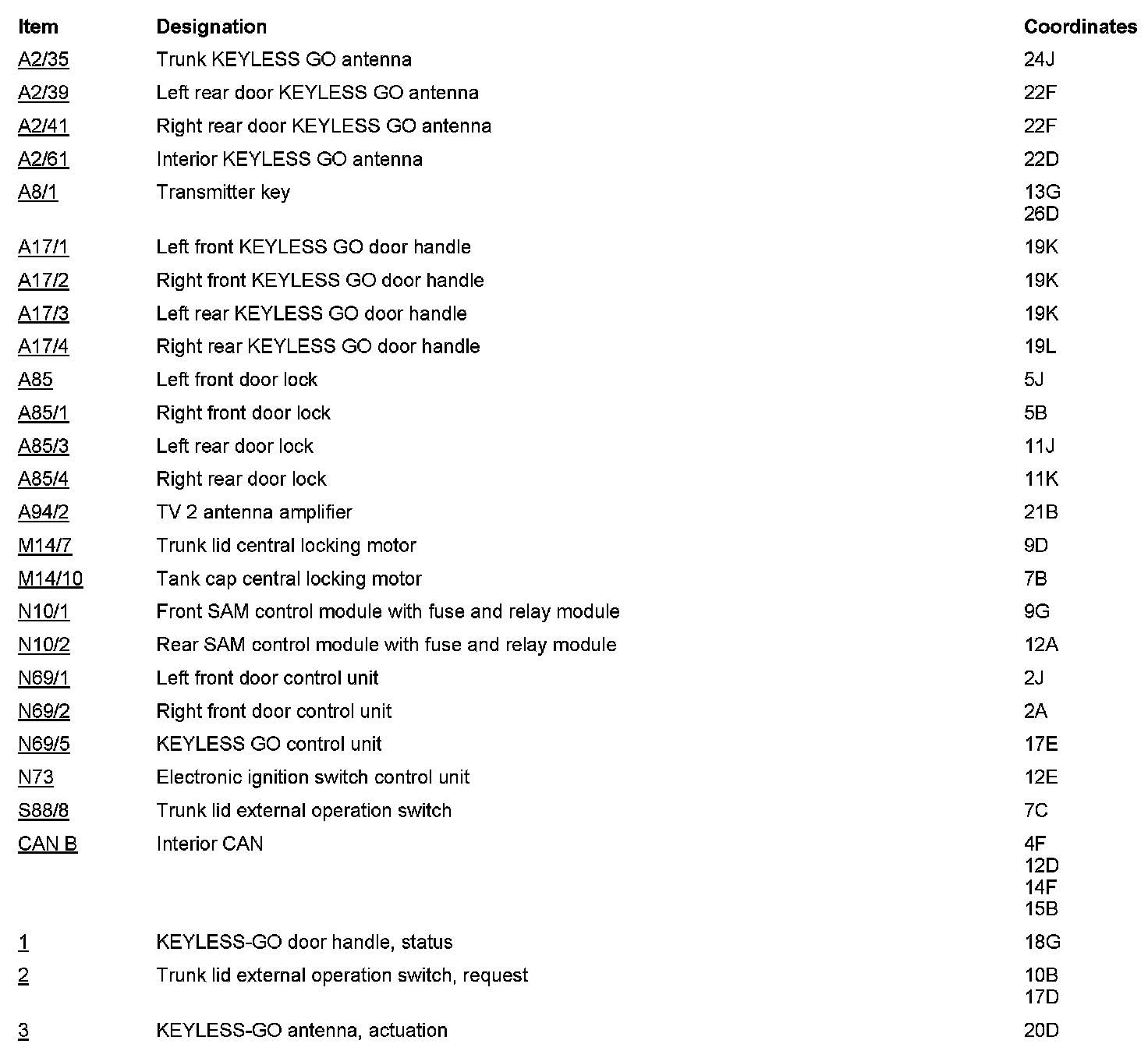

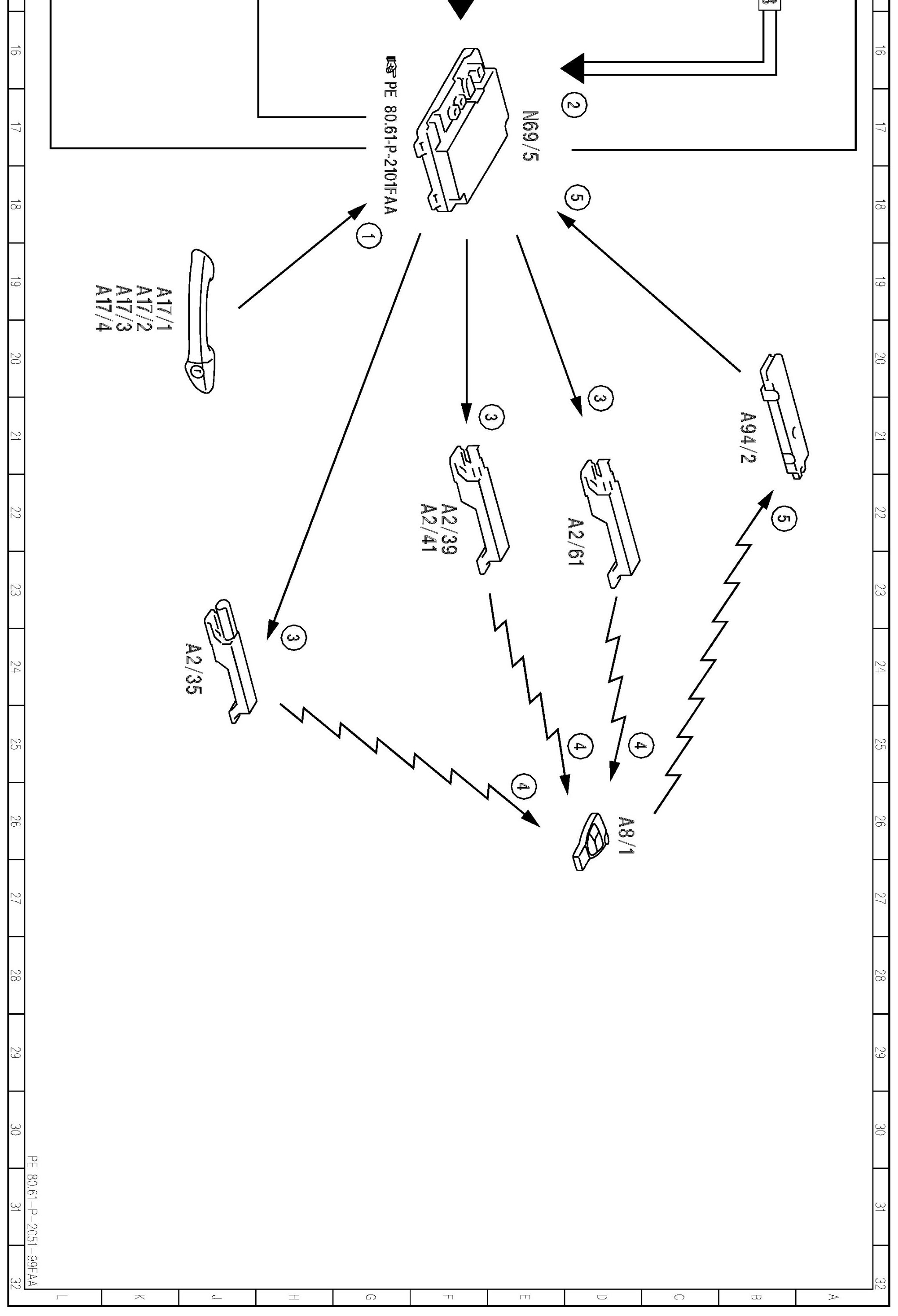

PE80.61-P-2051FAA Electrical Function Schematic For KEYLESS GO Locking And Unlocking

PE80.61-P-2051FAA Electrical Function Schematic For KEYLESS GO Locking And Unlocking

MODEL 204.0
- with CODE (889) Keyless Go
- up to model year 08 /YoM 07

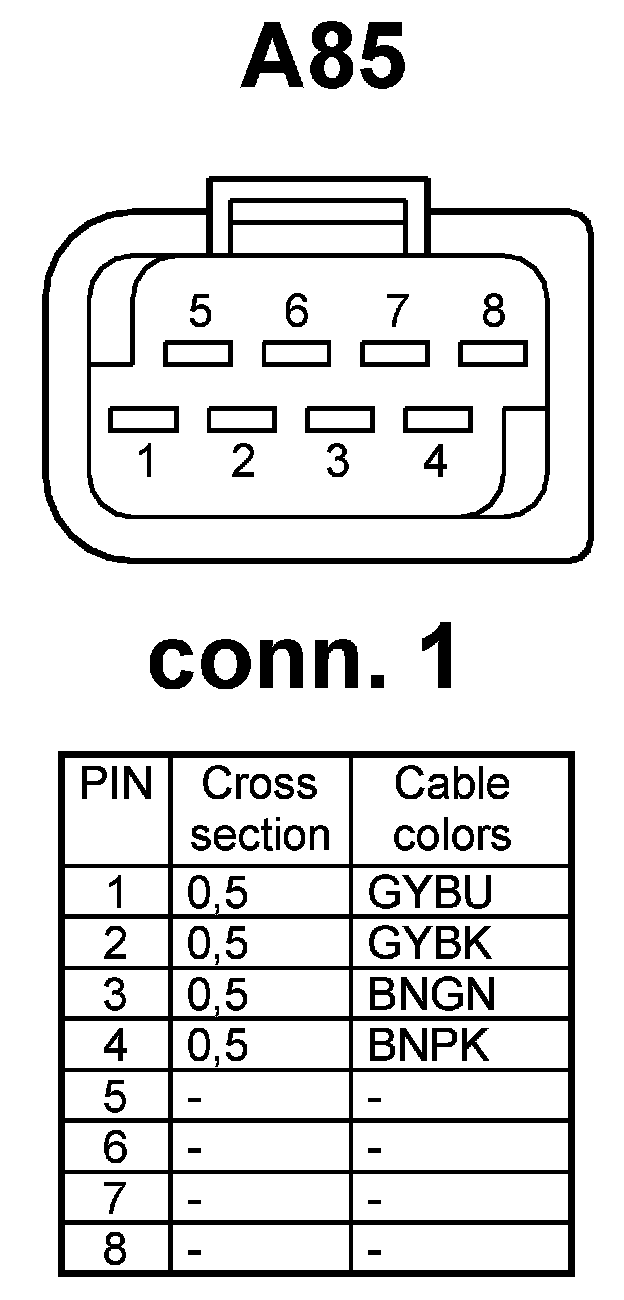

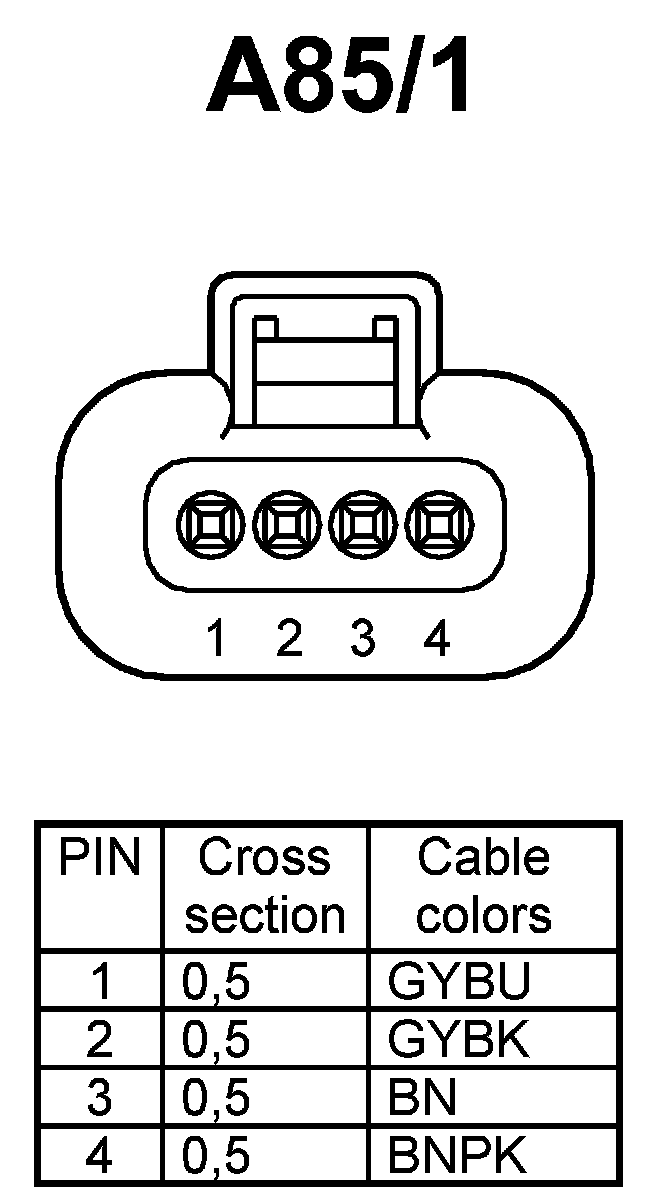

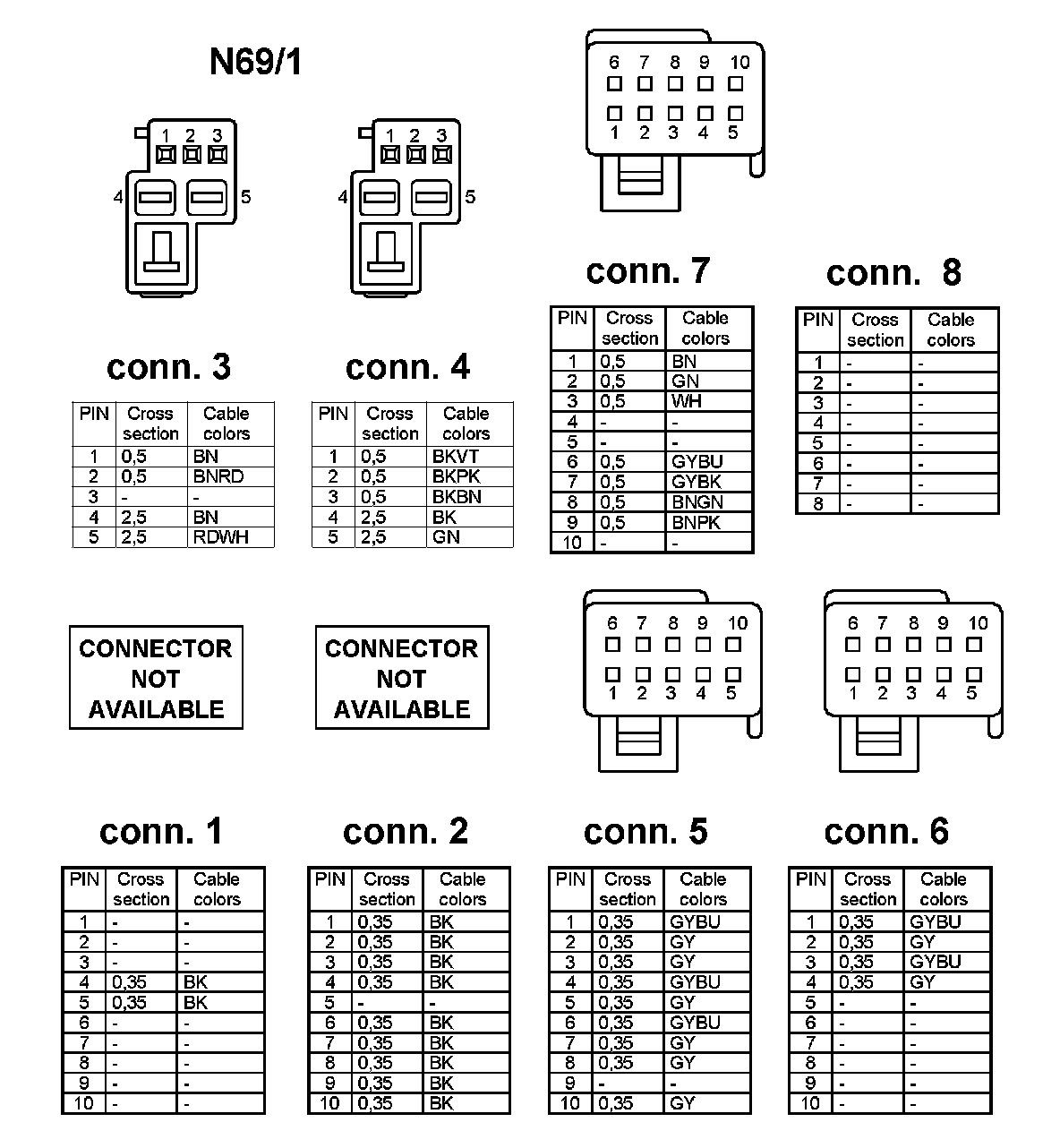

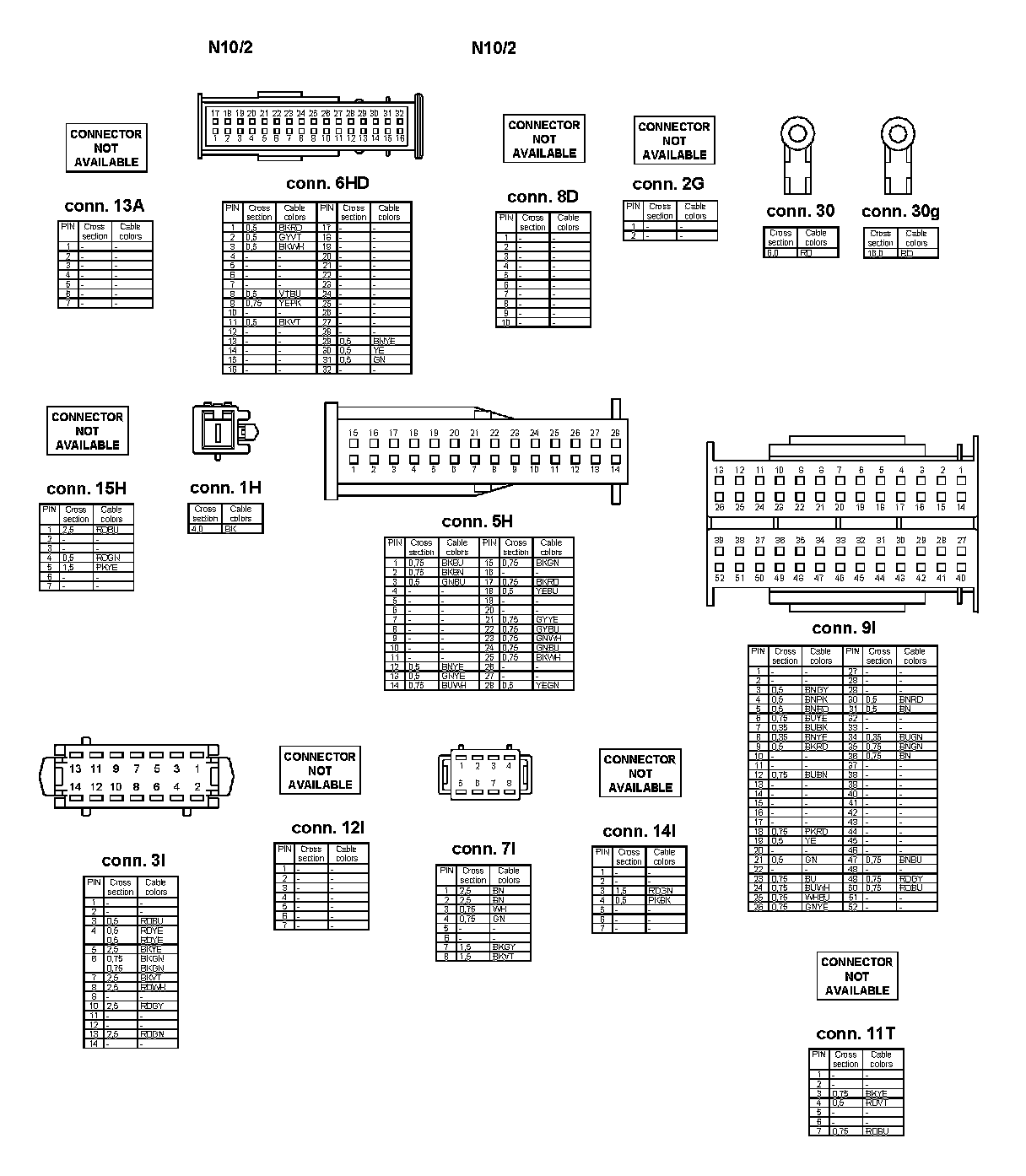

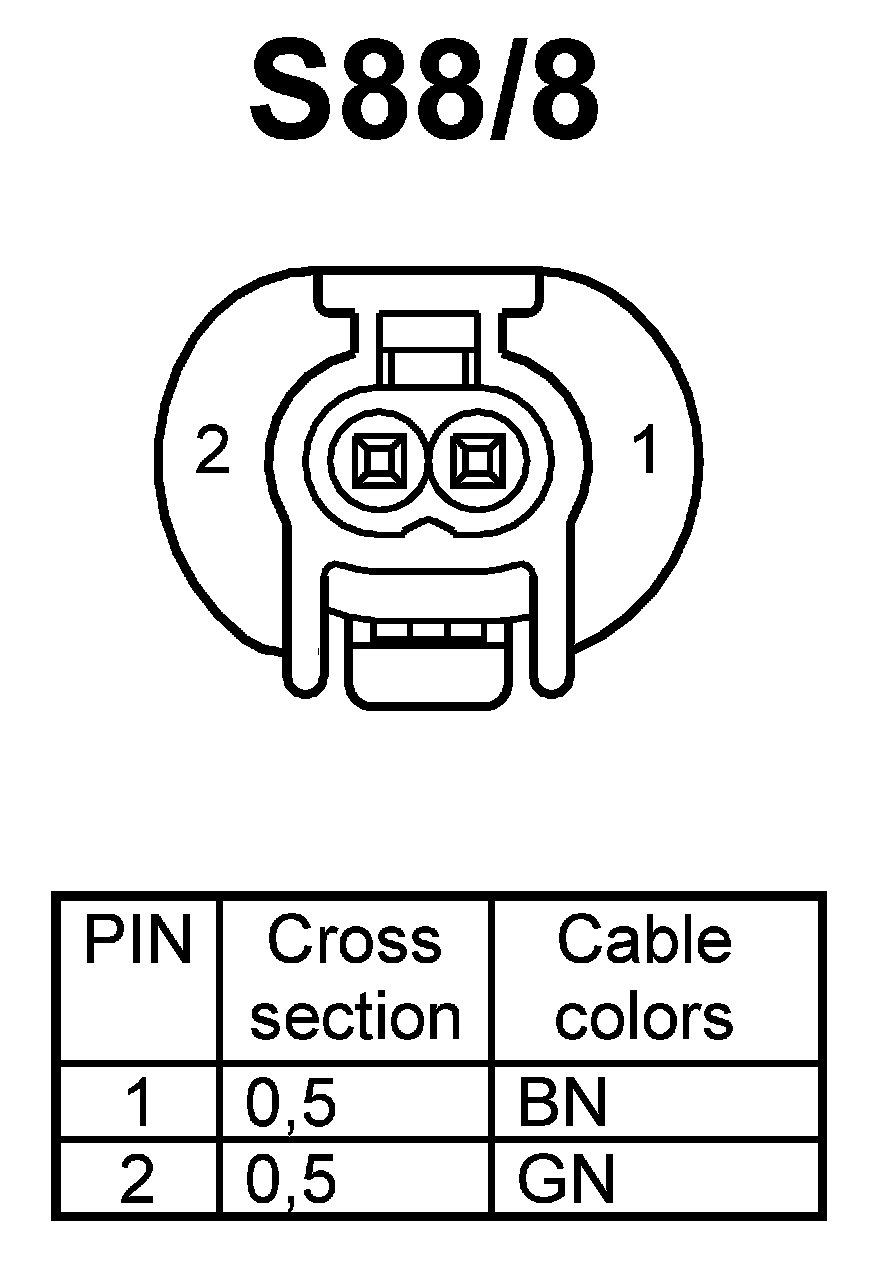

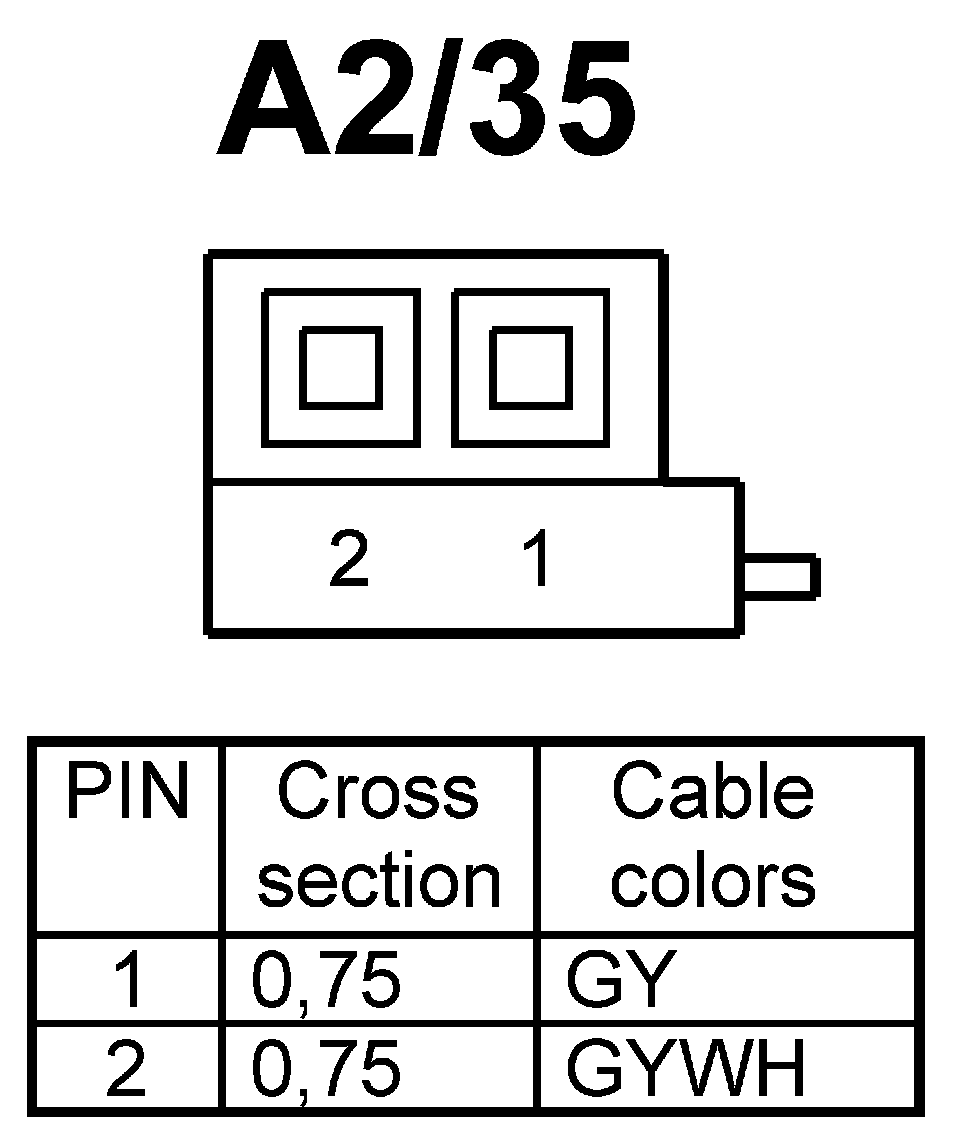

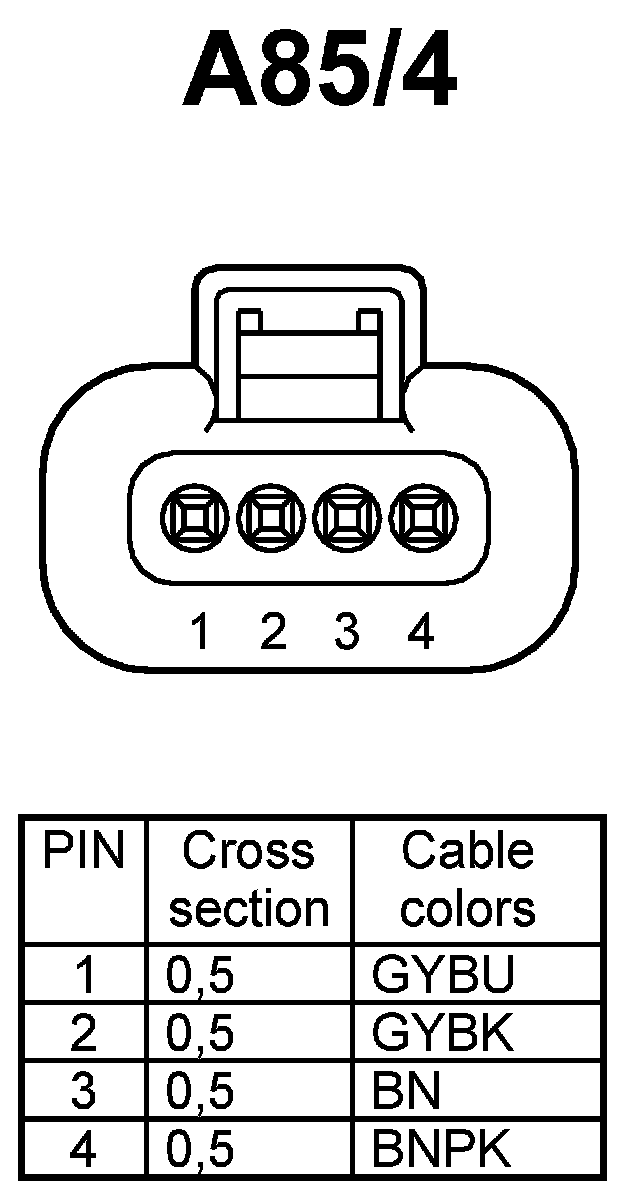

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
