GF80.50-P-4130CW Interior Protection and Tow-Away Protection Control Unit, Component Description

GF80.50-P-4130CW Interior Protection And Tow-away Protection Control Unit, Component Description
- with CODE (882) Interior monitoring (with ATA [EDW] only)

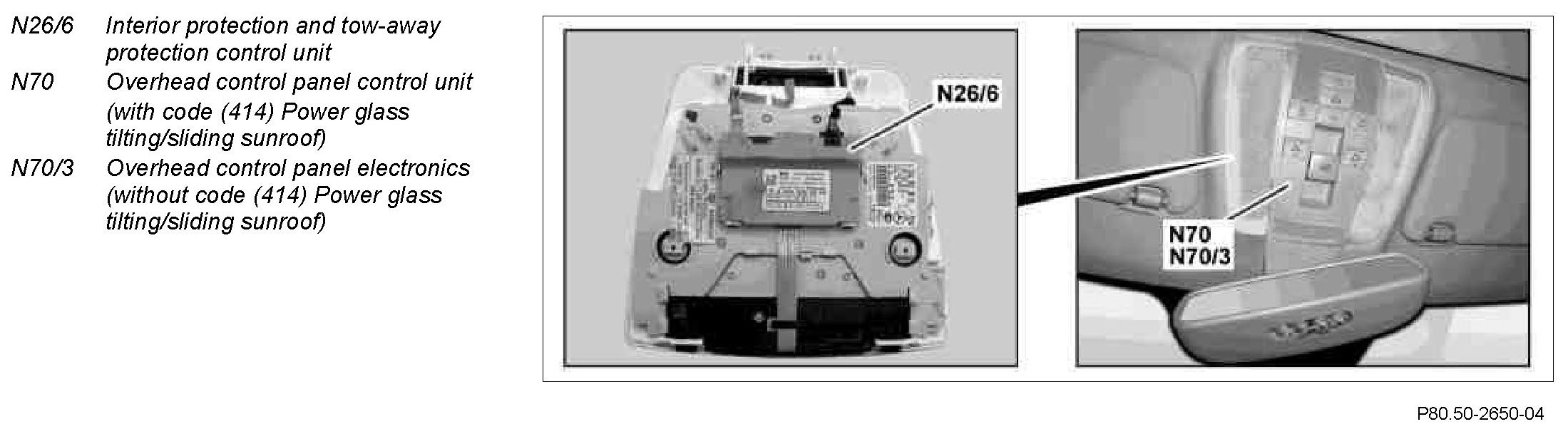

Component Identification:

Location
The interior protection and tow-away protection control unit is installed on the overhead control panel, which is located in the front area of the vehicle headliner.

Task
The interior protection and tow-away protection control unit monitors motion in the interior compartment. If the interior protection and tow-away protection control unit recognizes an alarm-relevant motion in the interior compartment, this data is transmitted to the rear SAM control unit with fuse and relay module (N10/2) with rear SAM-LIN for alarm actuation.
