GF82.62-P-4119CW Telephone and GPS Roof Antenna Component Description

GF82.62-P-4119CW Telephone And GPS Roof Antenna Component Description
- with CODE (386) Mobile phone
- with CODE (389) Mobile phone preinstallation with universal interface, USA/Canada
- with CODE (359) TELE AID emergency call system
- with CODE (525) MB Audio 50 APS radio
- with CODE (511) Audio 50 APS with DVD changer
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (512) COMAND APS with DVD changer
- with CODE (537) Digital radui
- with CODE (536) SIRIUS satellite radio
- with CODE (498) Japan version

Component Identification:

Location

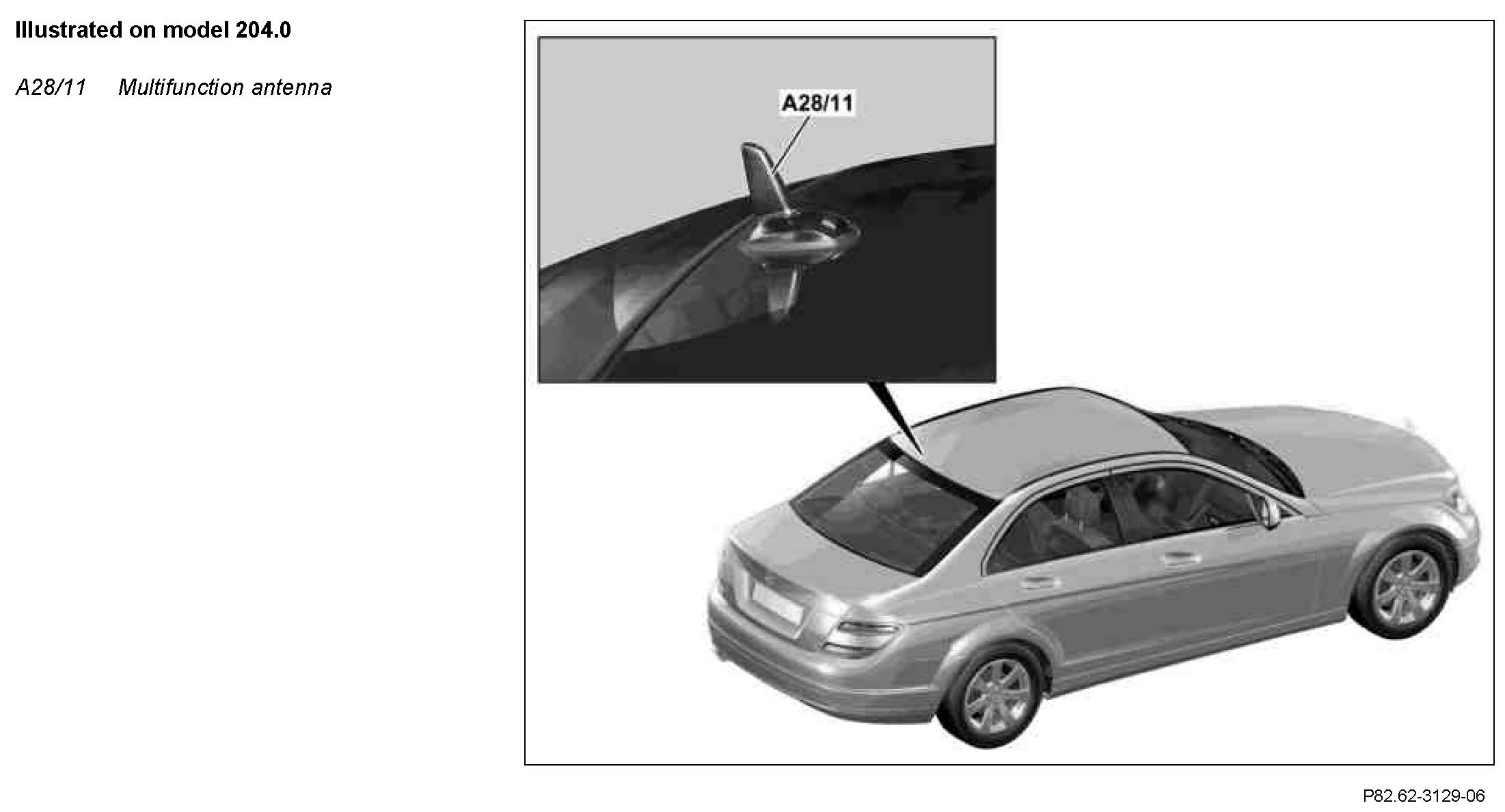

The multifunction antenna is located to the rear in the center of the vehicle roof.

Task
^ Transmitting and receiving mobile phone signals and mobile phone data
^ Receiving Global Positioning System (GPS) signals for navigation in vehicles with one of the following equipment variants:
- With code (527) COMAND APS with single DVD drive (with navigation)
- With code (512) COMAND APS with DVD changer
- With code (525) MB Audio 50 APS radio
- With code (511) Audio 50 APS with DVD changer
- With code (359) TELE AID emergency call system (model 204.0)

^ Receiving L-band signals for the Digital Audio Broadcasting control unit (N87/3), with code (537) Digital radio
^ Receiving and forwarding satellite digital audio radio (satellite radio) (SDAR) signals to the satellite digital audio radio (SDAR) control unit (N87/5), with code (536) SIRIUS satellite radio (model 204.0)
^ Forwarding mobile phone signals or data to the mobile phone cradle (A34/15), with code (389) Mobile phone preinstallation with universal interface, USA/Canada (model 204.0), with code (386) Mobile phone, or to the emergency call system control unit (N123/4), with code (359) TELE AID emergency call system (model 204.0)
