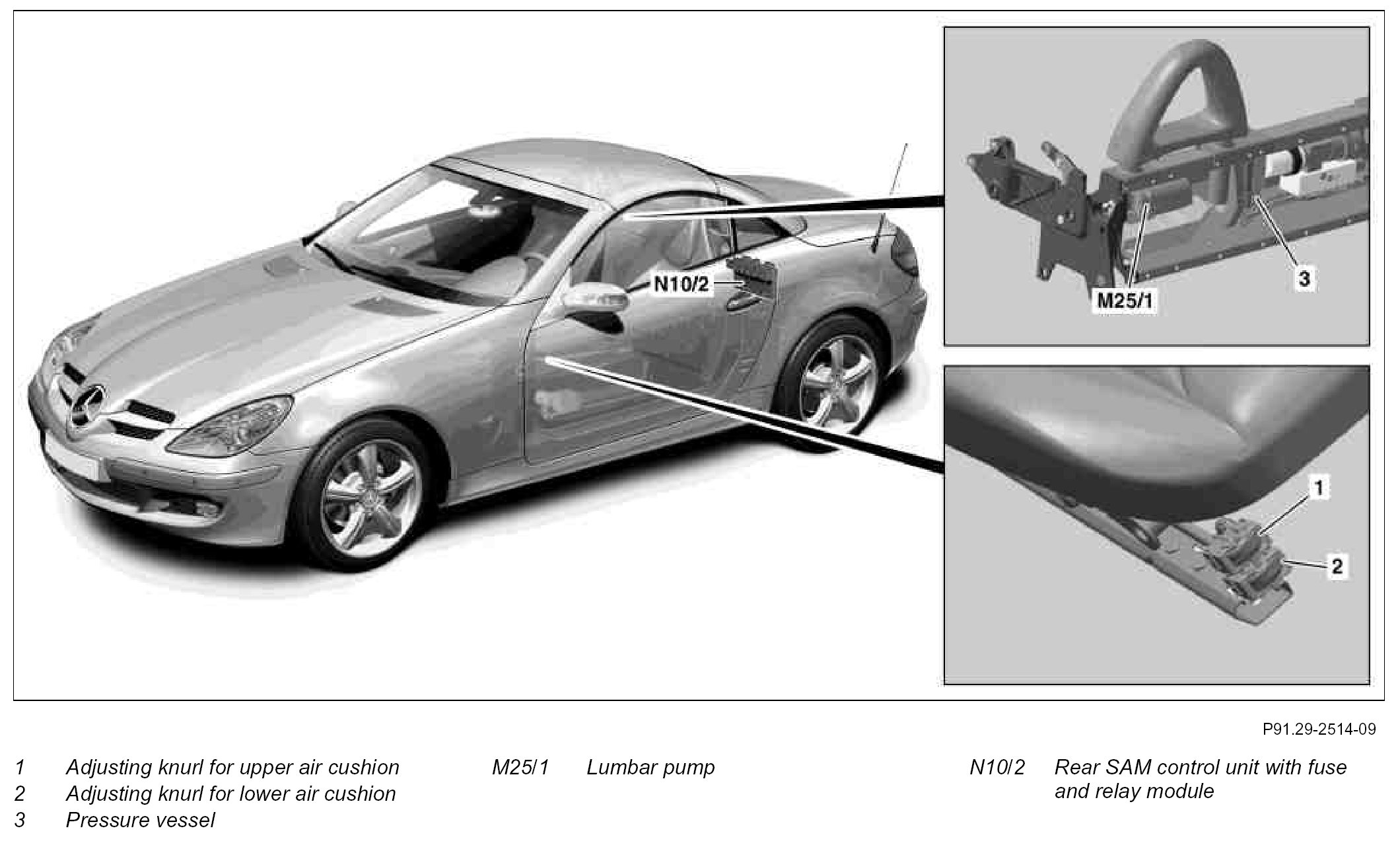

GF91.29-P-0008-01SK Location of Components For Lumbar Adjustment



GF91.29-P-0008-01SK Location Of Components For Lumbar Adjustment
- with CODE (U22) Lumbar support setting

Component Identification:
