Hood: Adjustments
AR88.40-P-3020V Adjust Engine
Hood

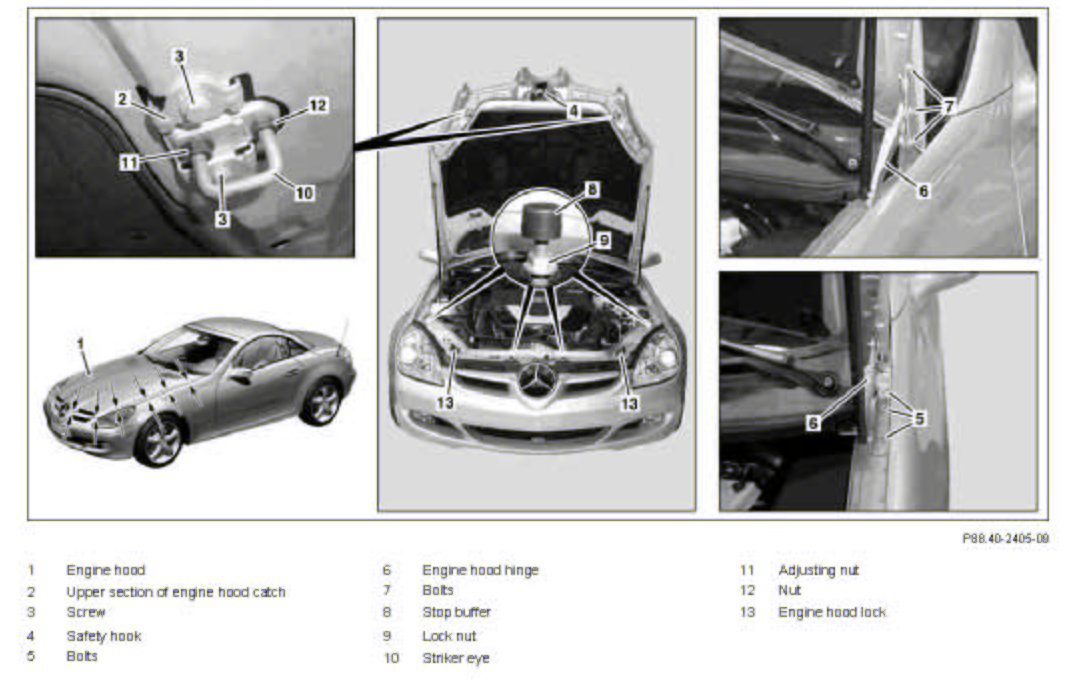

Component Identification:

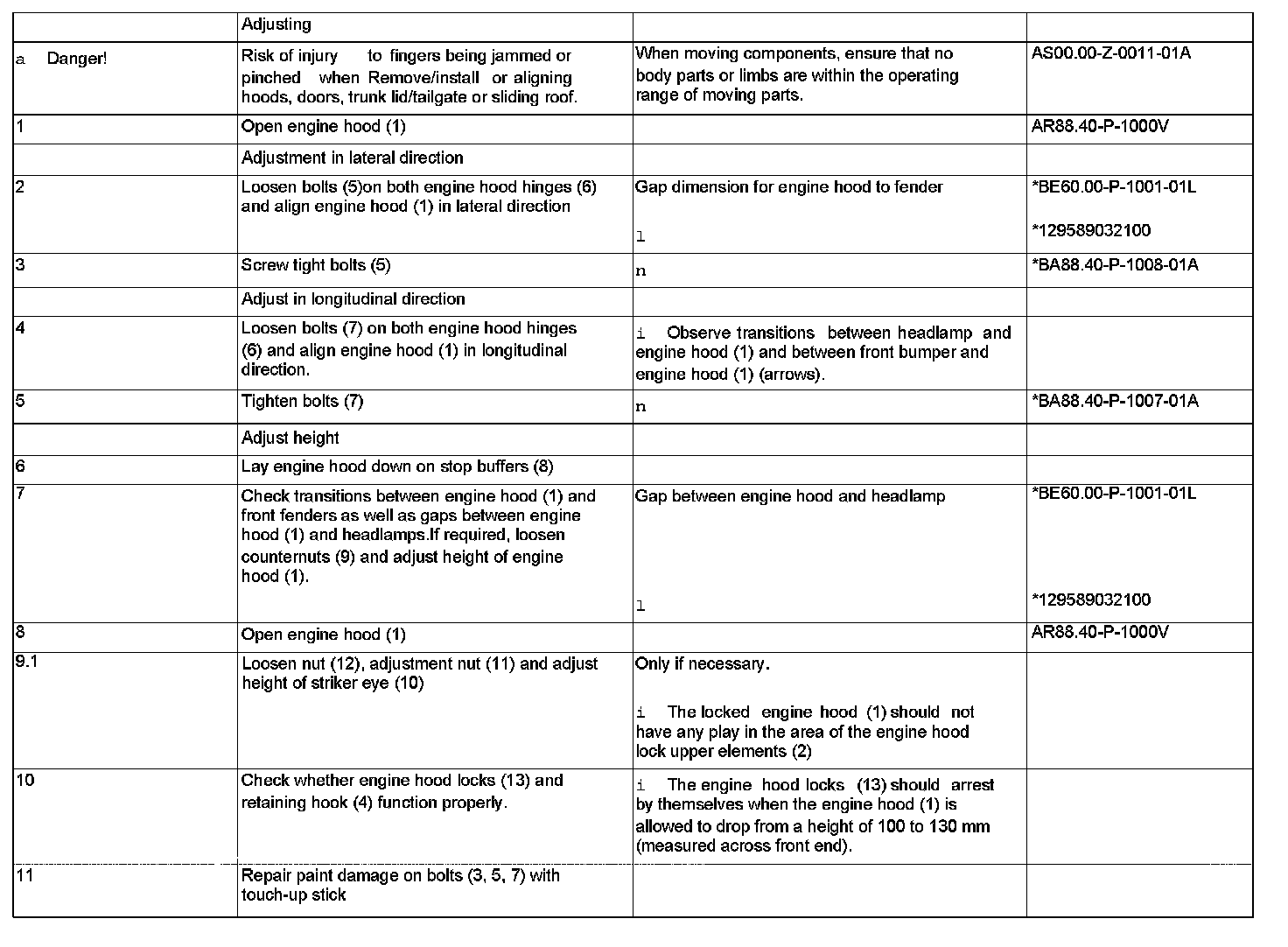

Step 1 - 11:
Test And Adjustment Values For Gap Dimensions:

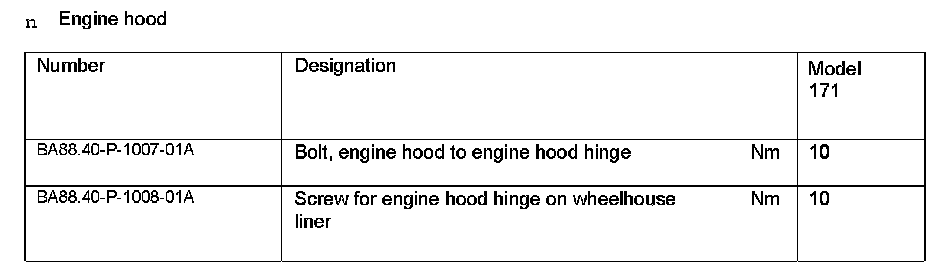

Engine Hood:

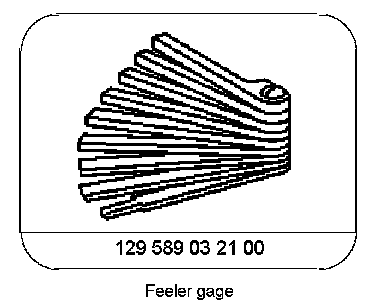

Special Tools:
