PE82.30-U-2000KB Windshield Wiper (Part 2)




Windshield Wiper PE82.30-U-2000KB

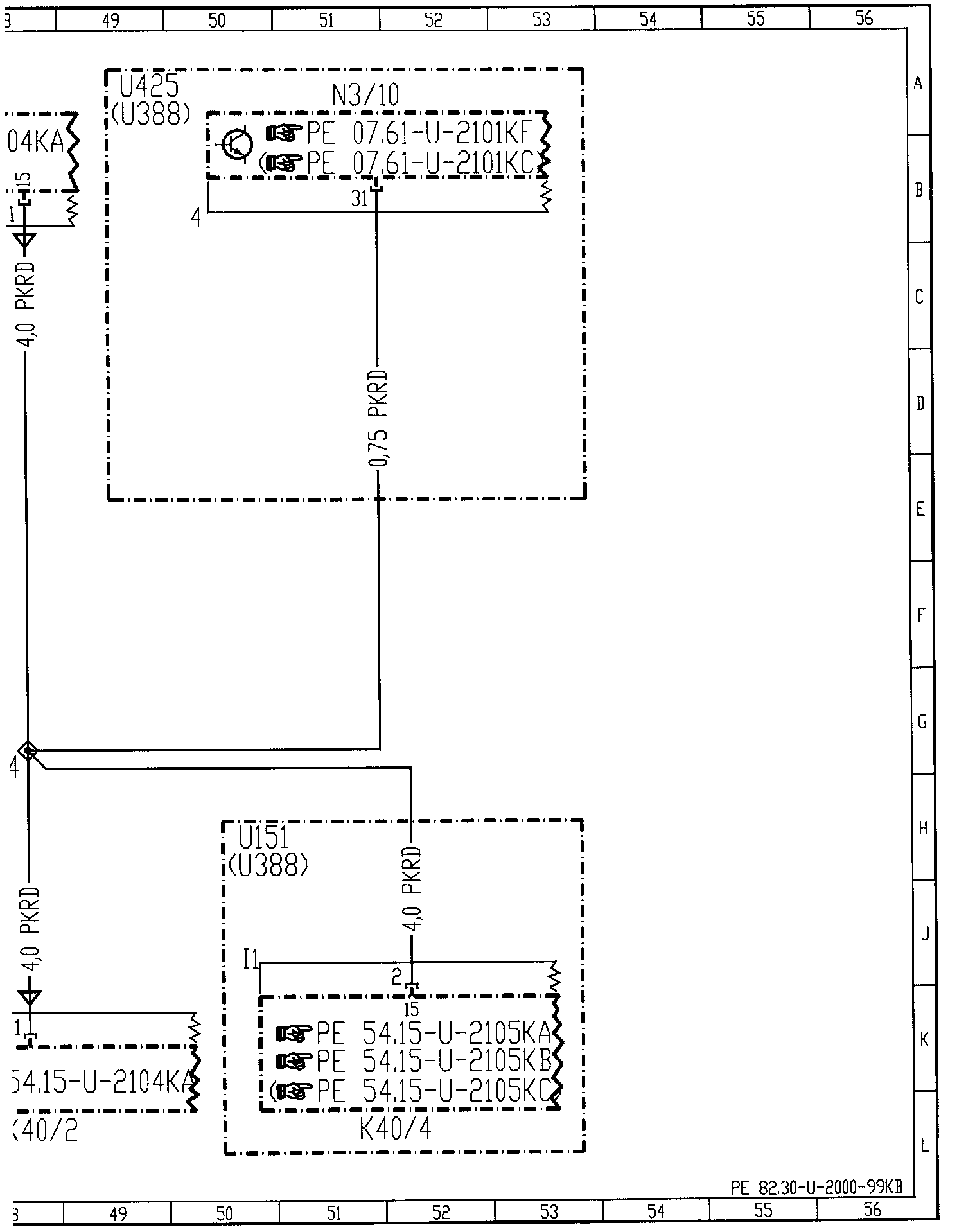

Diagram, Part 1:

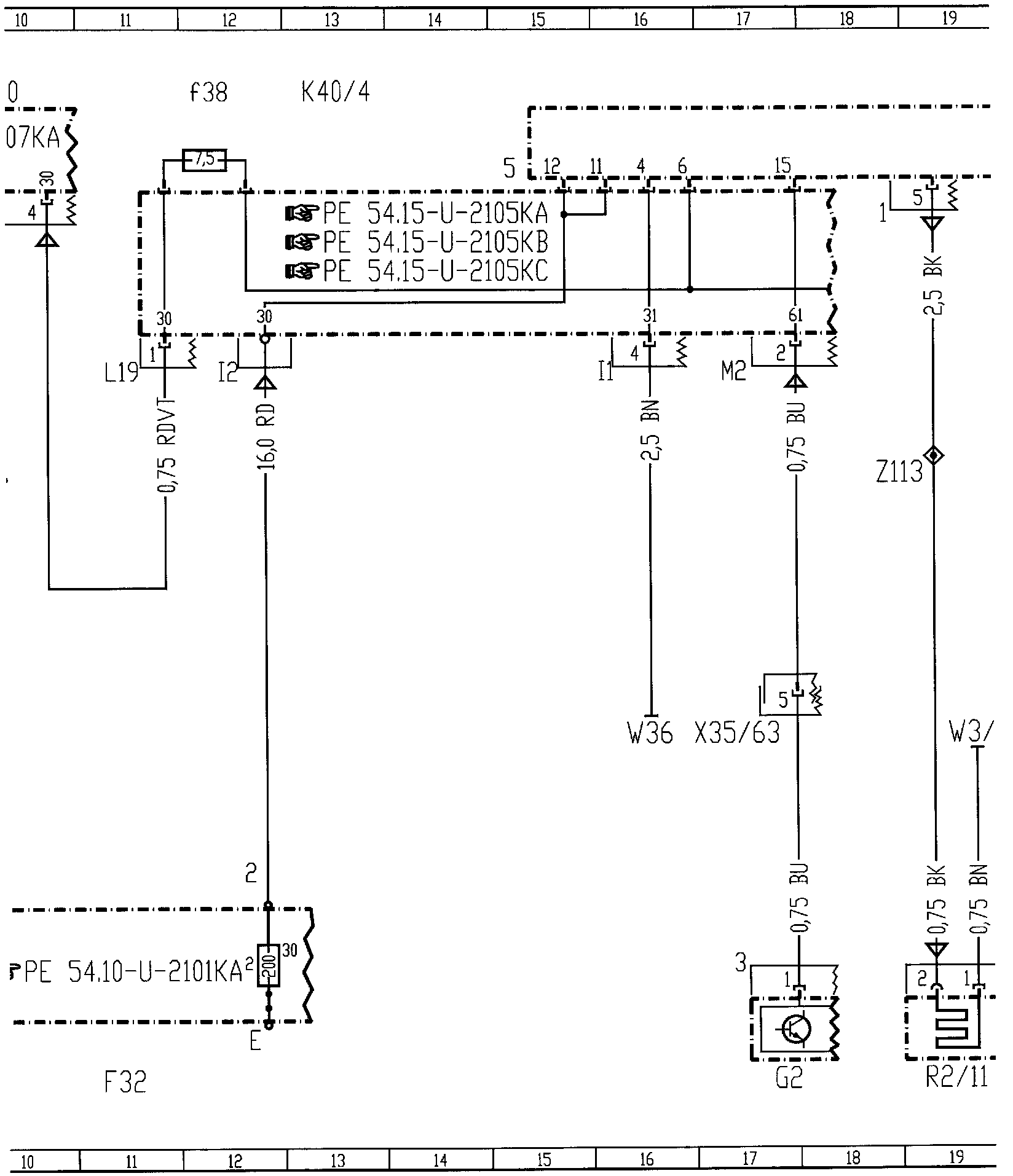

Diagram, Part 2:

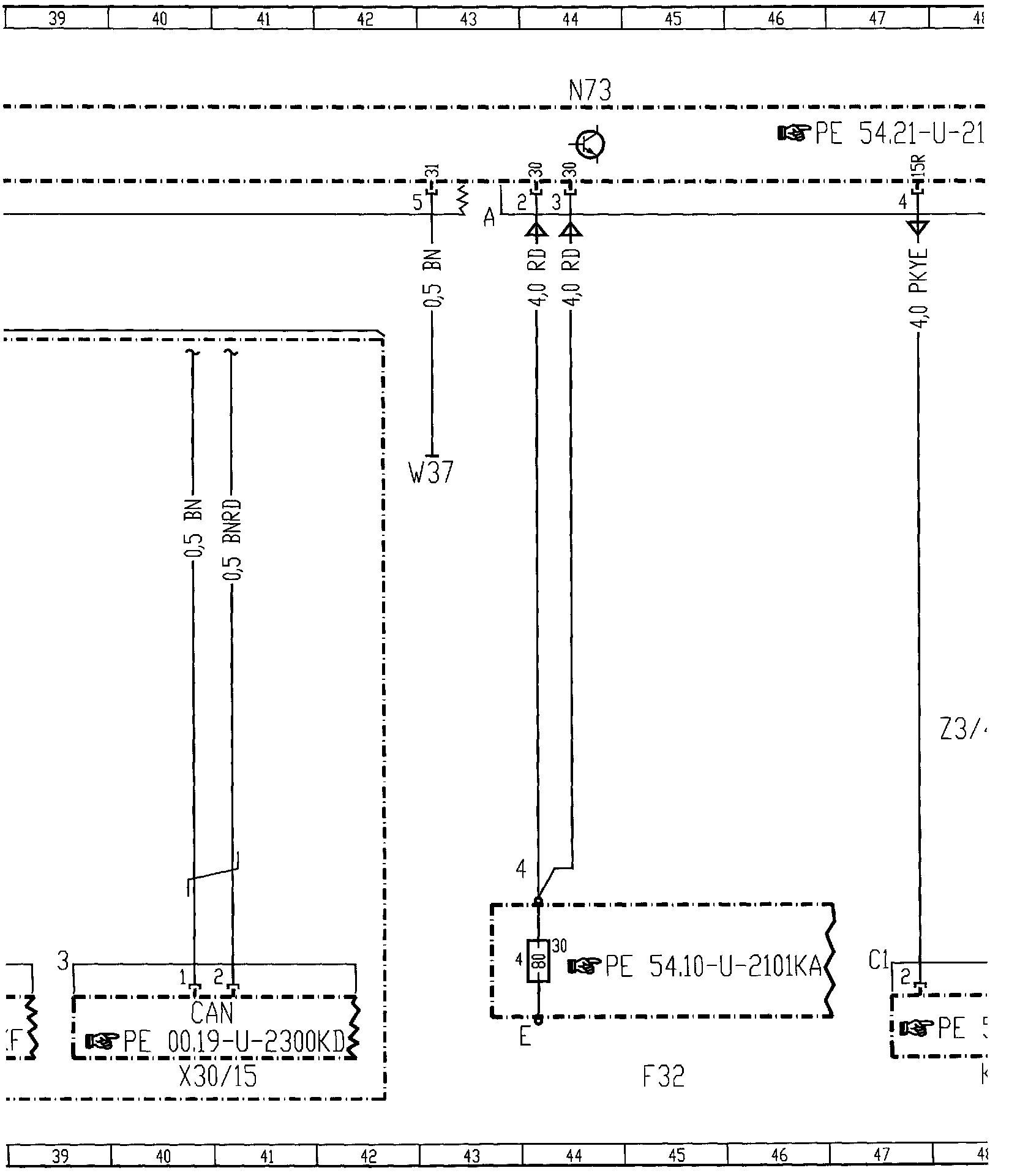

Diagram, Part 3:

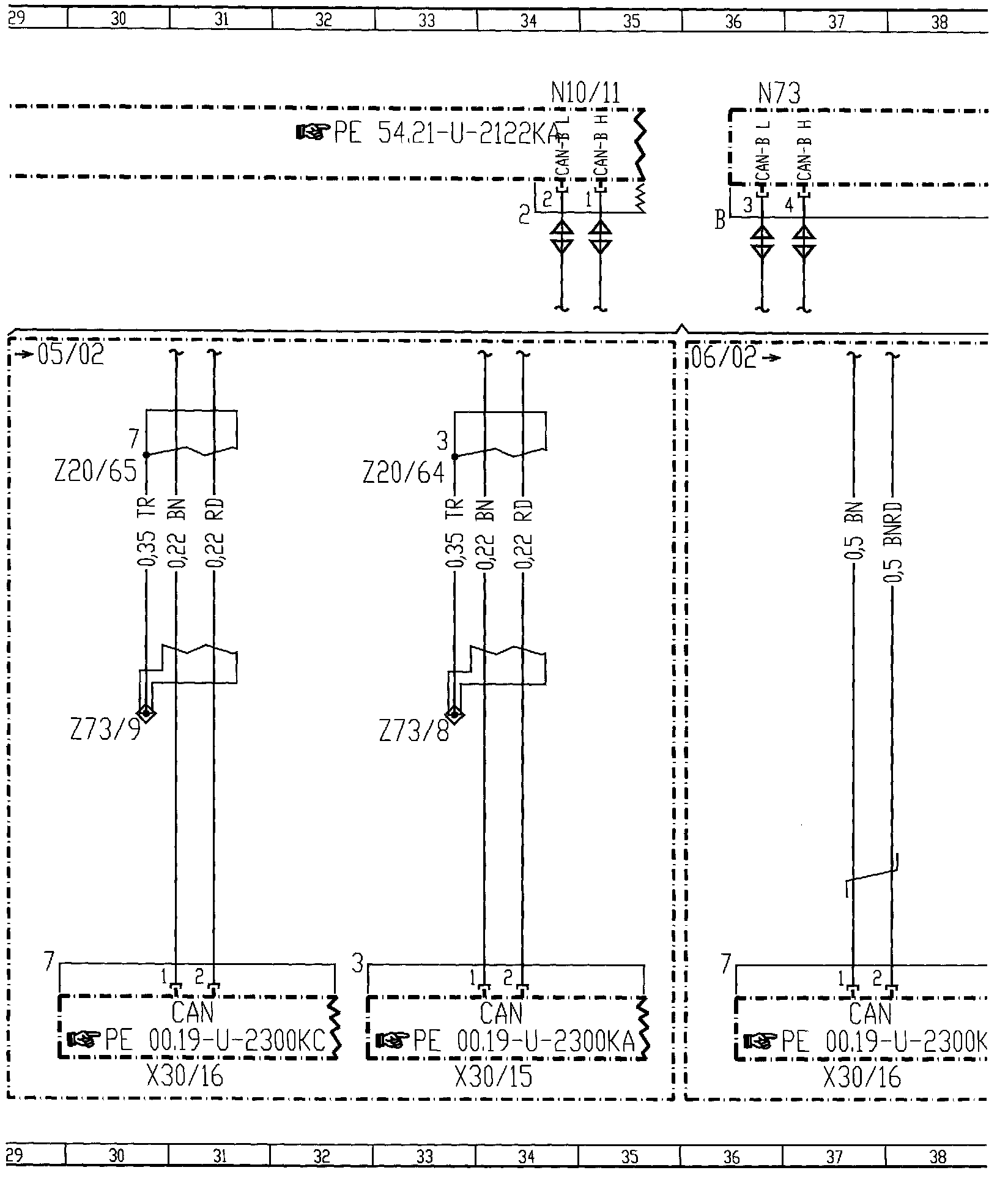

Diagram, Part 4:






Diagram, Part 5:






Diagram, Part 6:

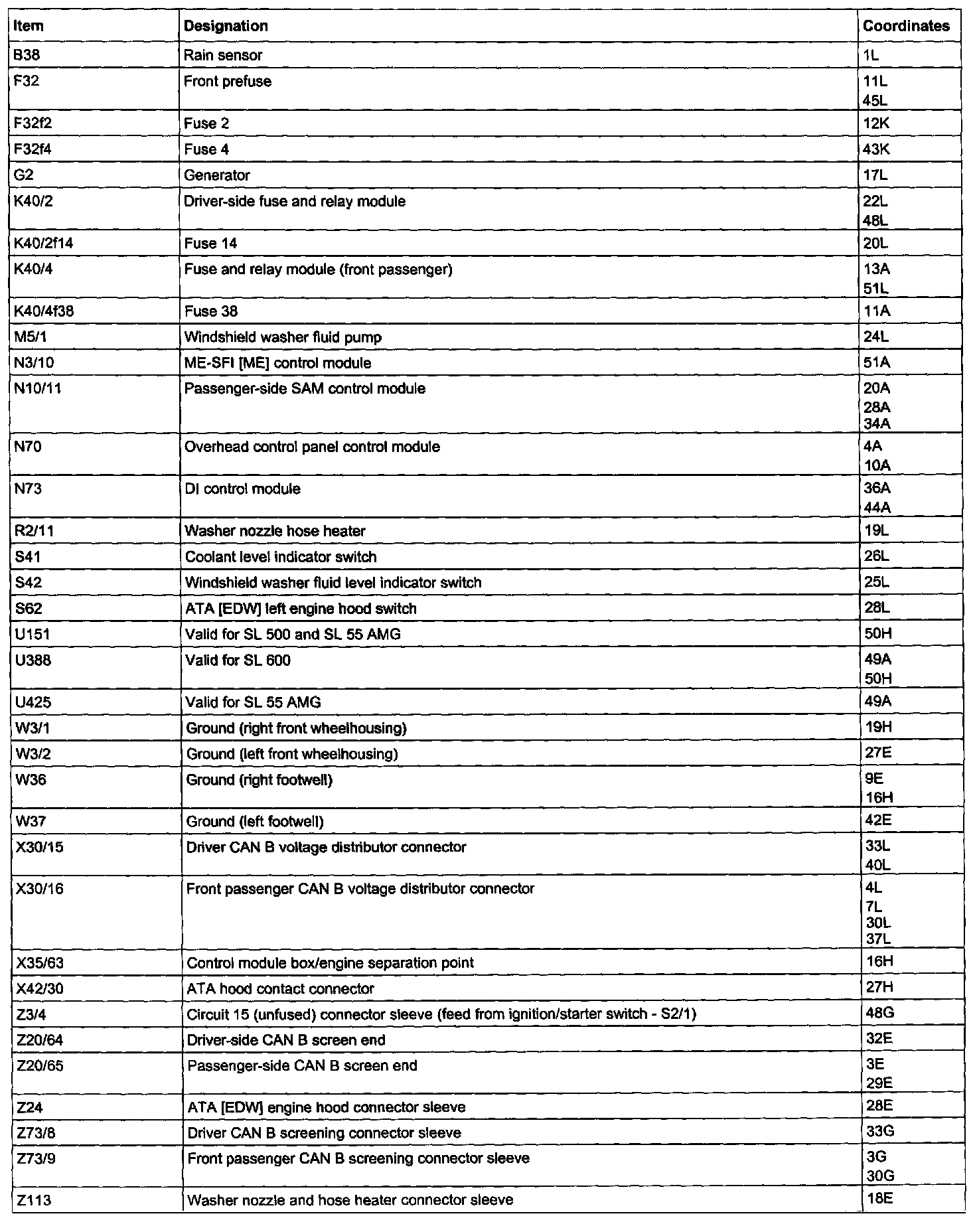

Component Description/Coordinates, B38 - Z113:
