AR40.15-P-0100R Remove/Install Tire Pressure Monitoring System Control Unit



AR40.15-P-0100R Remove, install tire pressure monitoring system control unit
- with CODE (475) Tire pressure monitor (Beru)
- with CODE (475) Tire pressure monitor (Siemens)

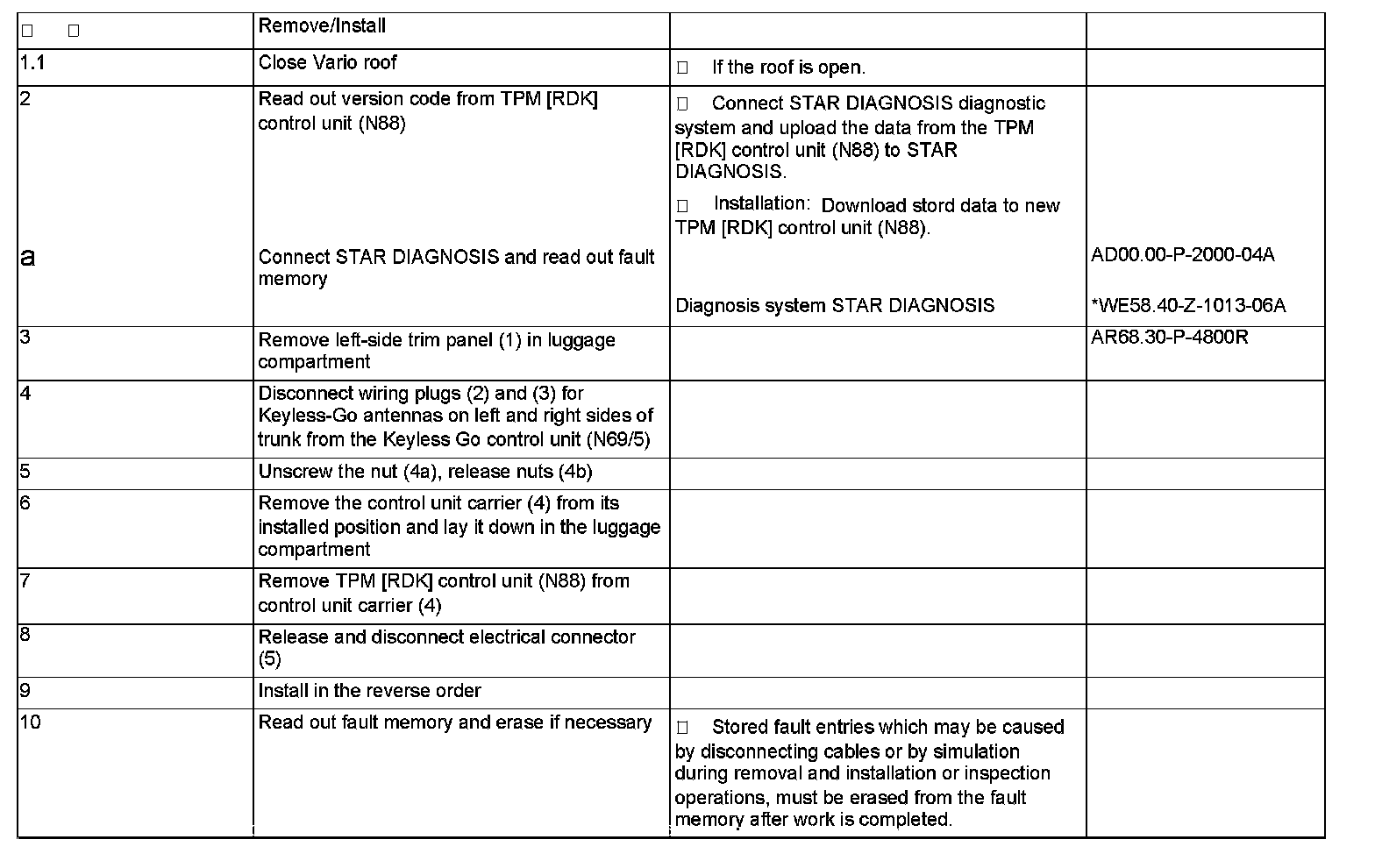

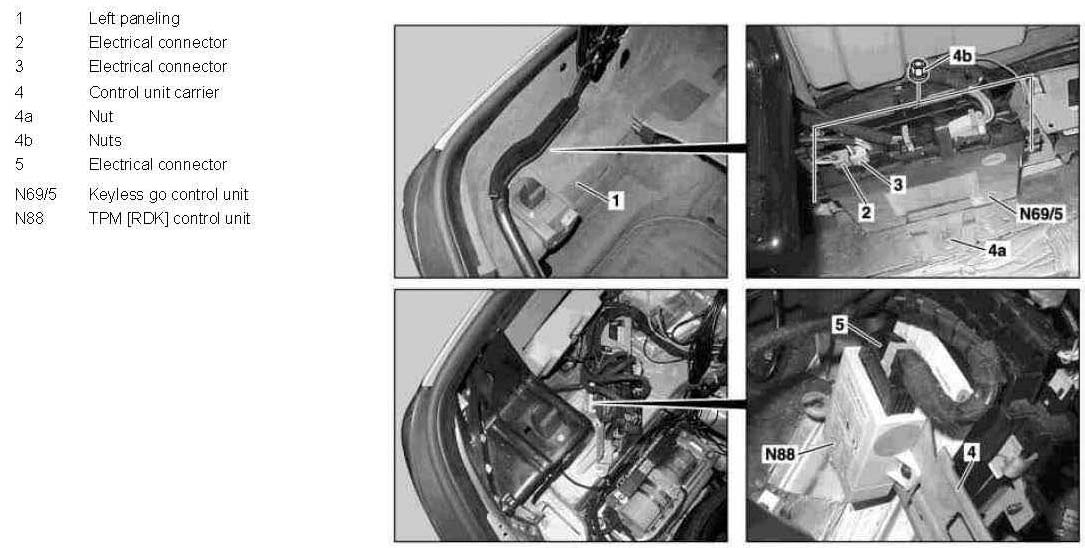

Steps 1-10:

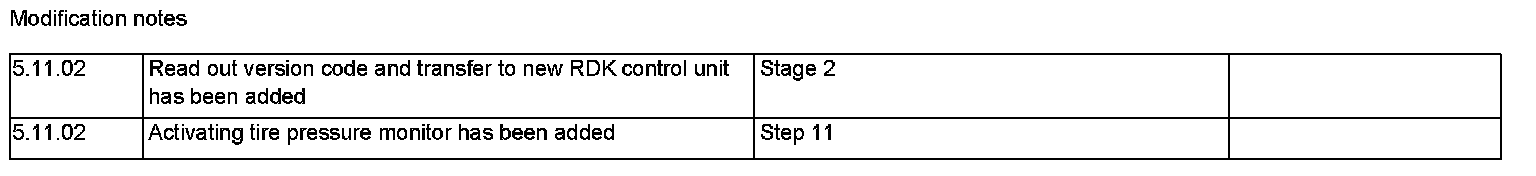

Step 11:
