GF88.50-P-4053RIT Position Sensor, Component Description

GF88.50-P-4053RIT Position Sensor, Component Description
- with CODE (P99) Special model "AMG Black Series"

Component Identification:

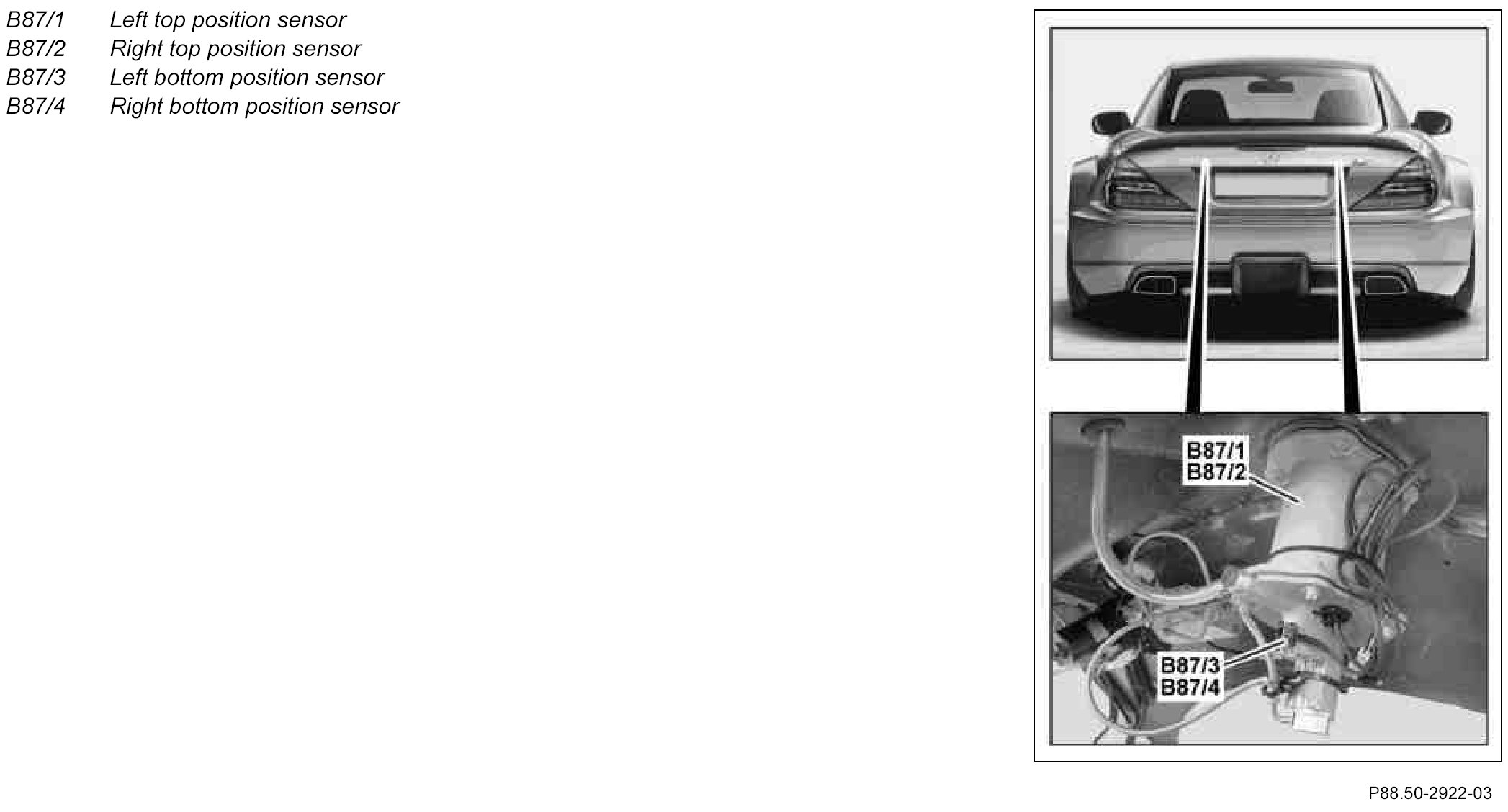

Location
The position sensors are located in the rear wing hydraulic cylinders.

Task
The position sensors sense the position of the rear wing. The status of the position sensor is read in by the AMG DRIVE UNIT control (N145).
