AR09.41-P-6800-01HH Check Charge Air Cooler

AR09.41-P-6800-01HH Check Charge Air Cooler
If Necessary After Test:
Replace Charge Air Cooler.

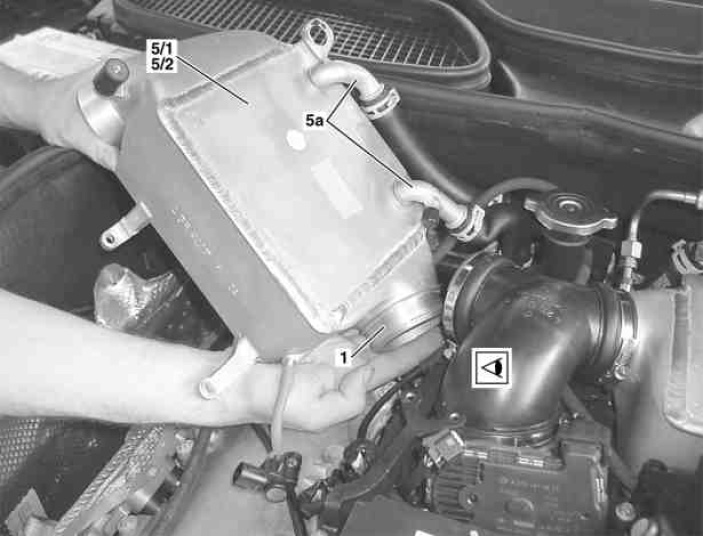

1 Carefully tilt left and right charge air cooler (5/1, 5/2) and check, if coolant is flowing out of air intake support (1).
Do not put connection fitting (5a) of coolant lines under tension when tilting left and right charge air cooler, otherwise leaks may occur.
2 Check left and right charge air cooler through visual inspection in the air intake support (1) for traces of fluid and residues of coolant.

Shown on right charge air cooler in Model 240
