AR09.41-P-6935RBS Remove/Install Low Temperature Water Circuit Radiator



AR09.41-P-6935RBS Remove/Install Low Temperature Water Circuit Radiator
- with CODE (P99) "AMG Black Series" special model

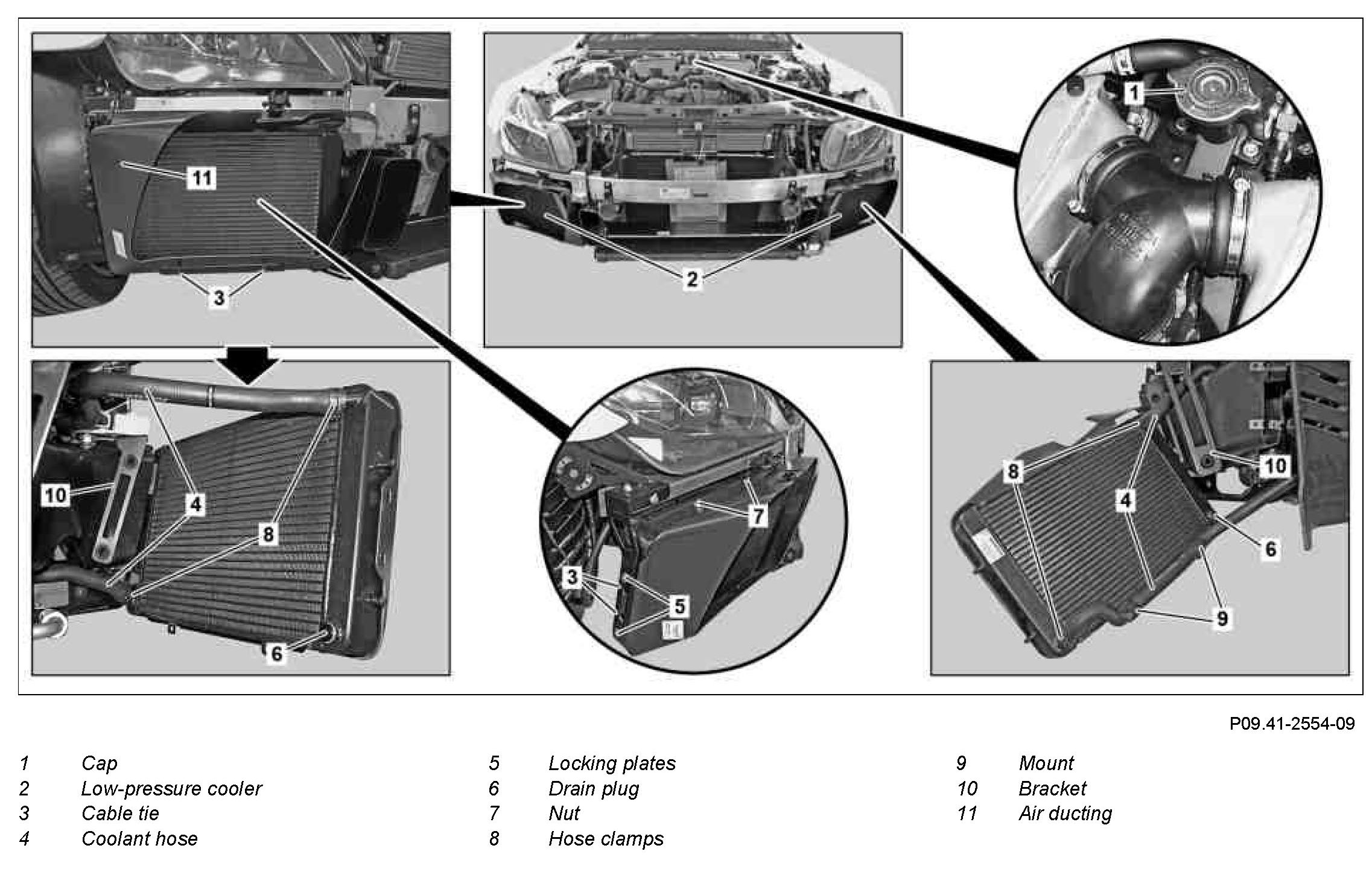

Component Identification:

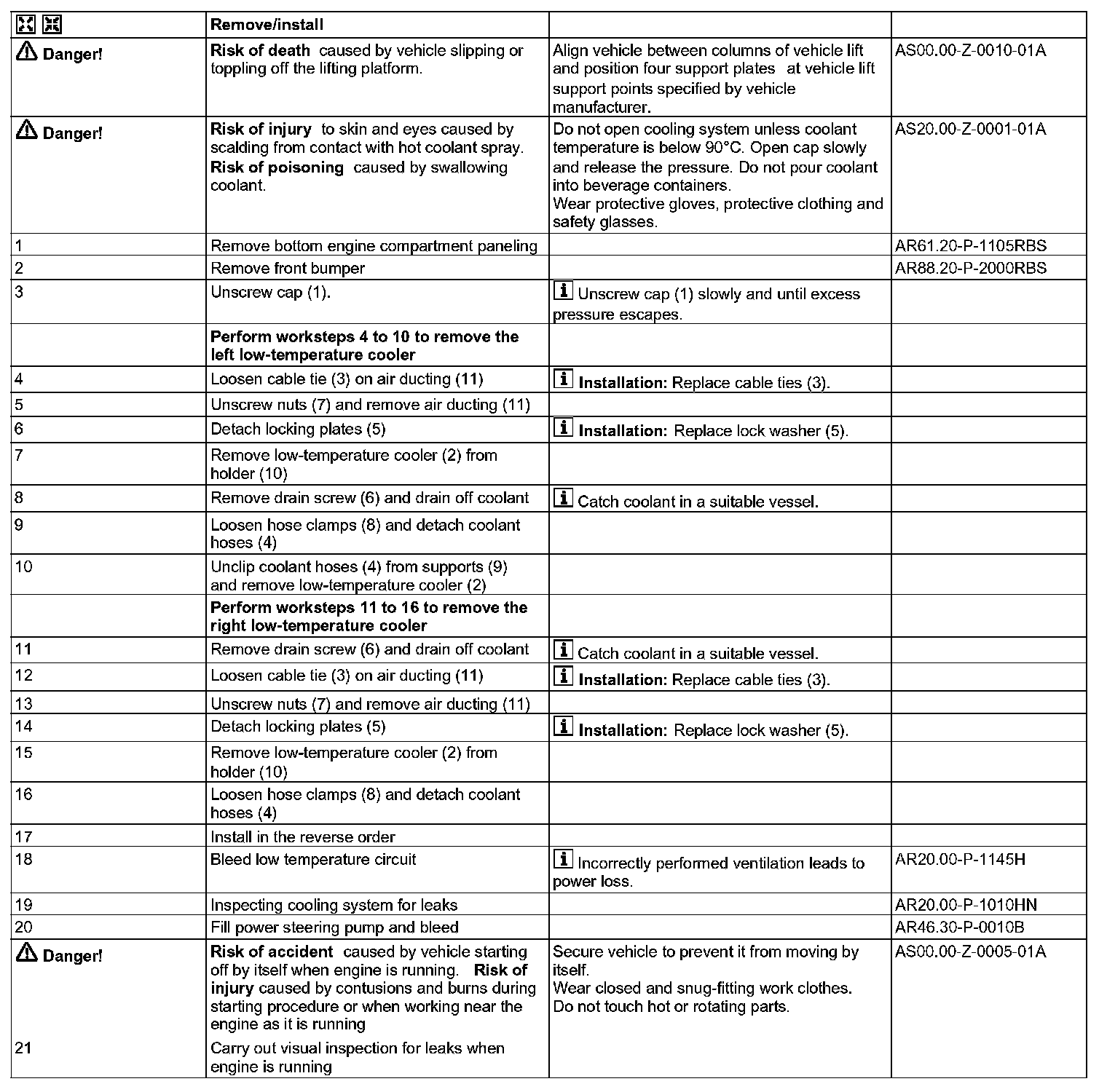

Steps 1 - 21:
