GF07.04-P-5048-01M Pressure Sensor Upstream of Throttle Valve Actuator, Function

GF07.04-P-5048-01M Pressure Sensor Upstream Of Throttle Valve Actuator, Function
- up to model year 08

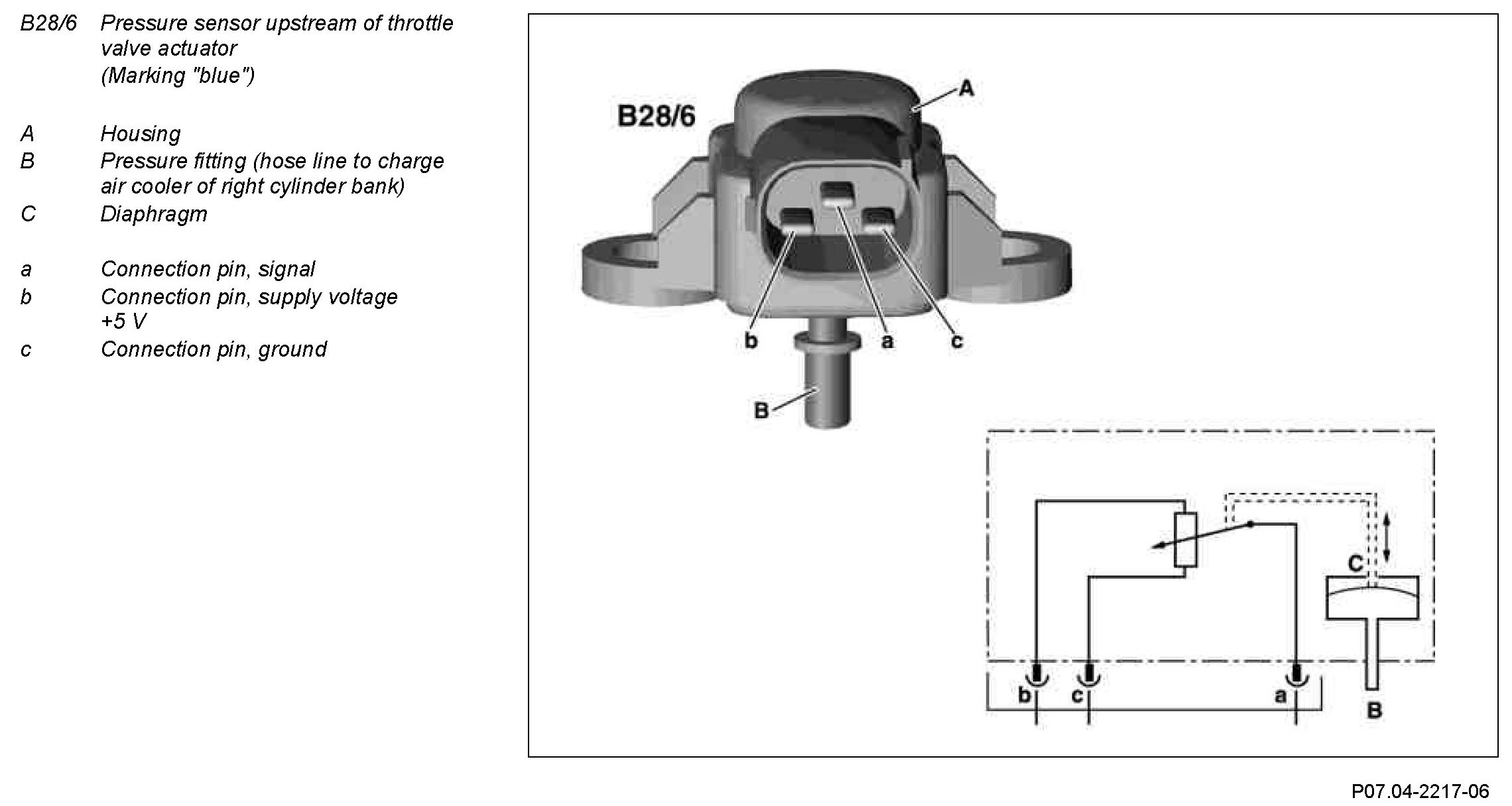

Component Identification:

The pressure distorts the diaphragm and through this the value of the Piezo resistor. The output voltage serves as pressure information for the engine control unit.

Observe risk of mixing up pressure sensors of similar construction.
