Home >> Mercedes Benz >> 2007 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Timing Components >> Timing Cover >> Service and Repair

Timing Cover: Service and Repair

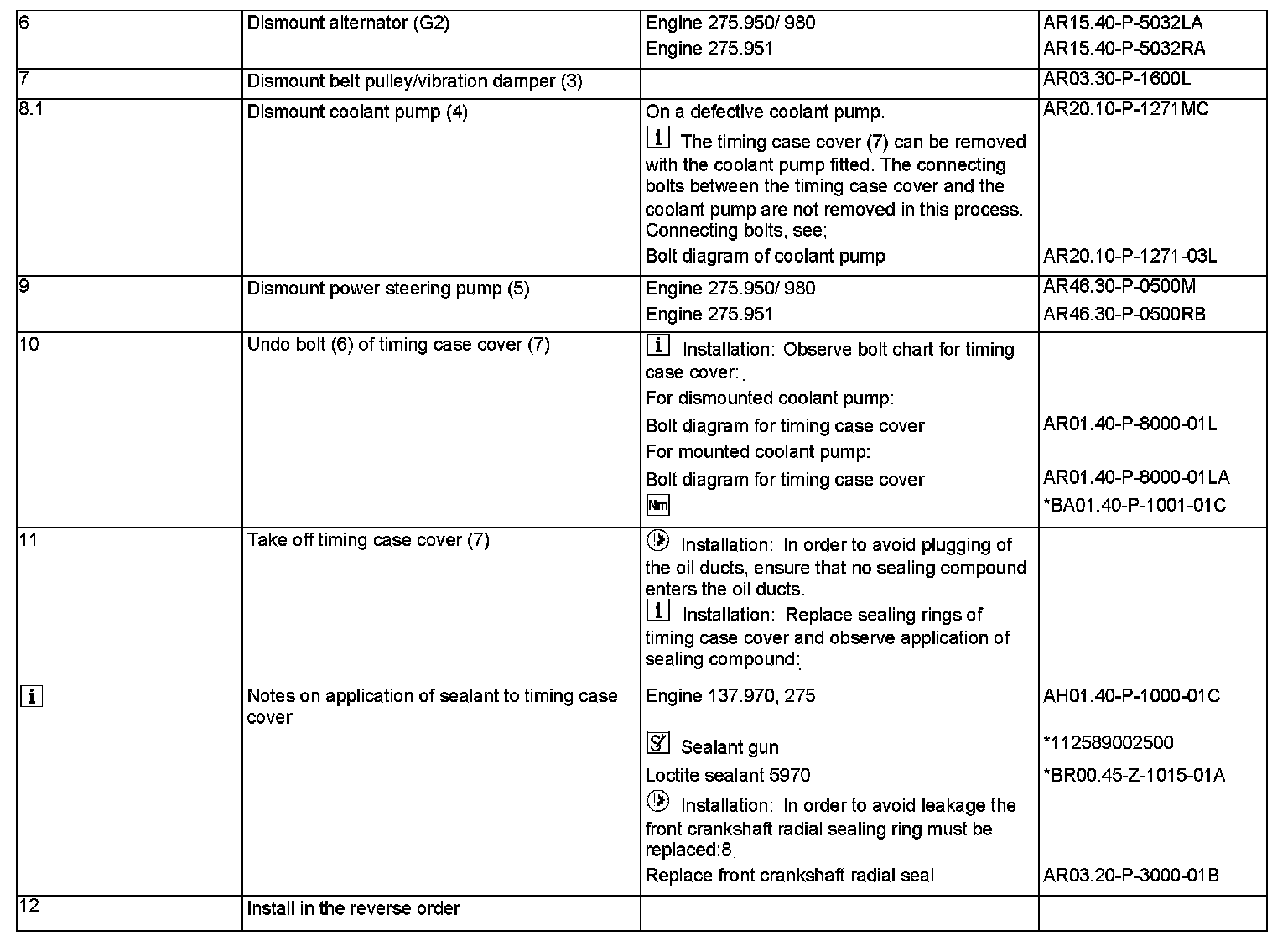

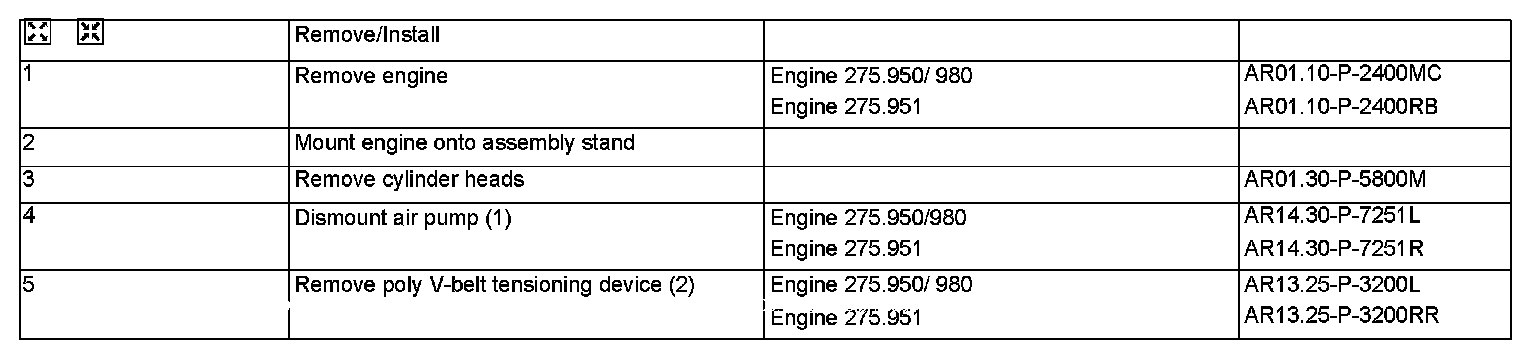

ARO1.40-P-8000M Remove/install timing case cover

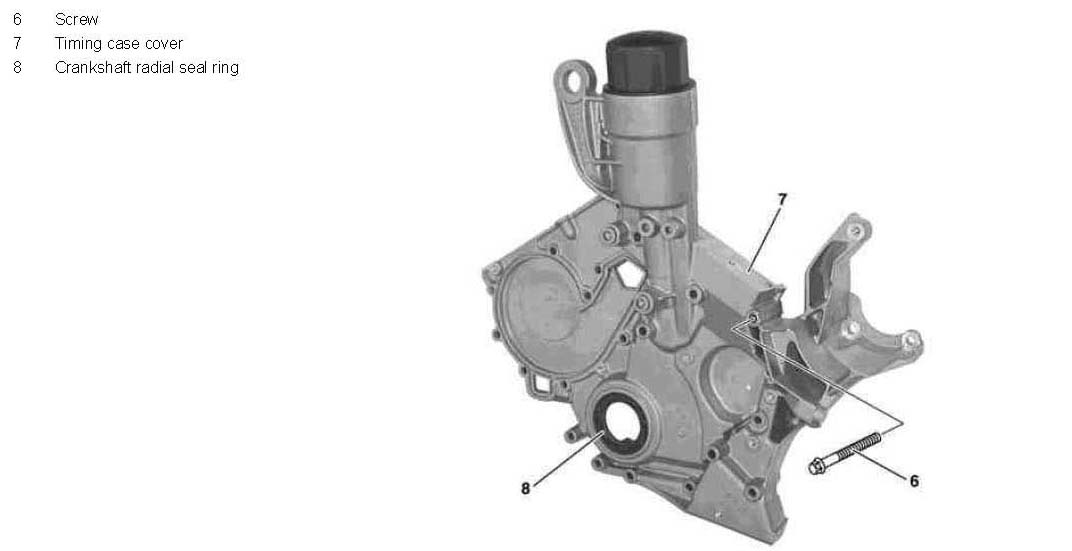

Nm Crankcase, timing case cover, end cover

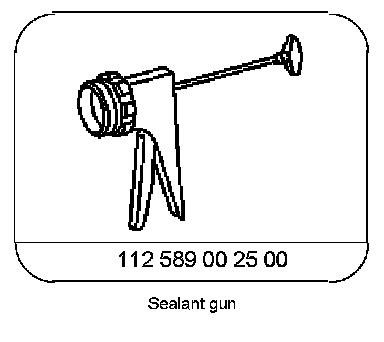

Sealant gun

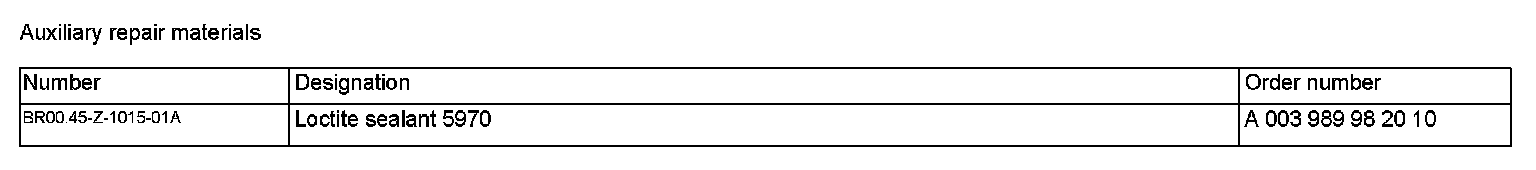

Auxiliary repair materials
