Home >> Mercedes Benz >> 2007 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Timing Components >> Camshaft Gear/Sprocket >> Specifications

Camshaft Gear/Sprocket: Specifications

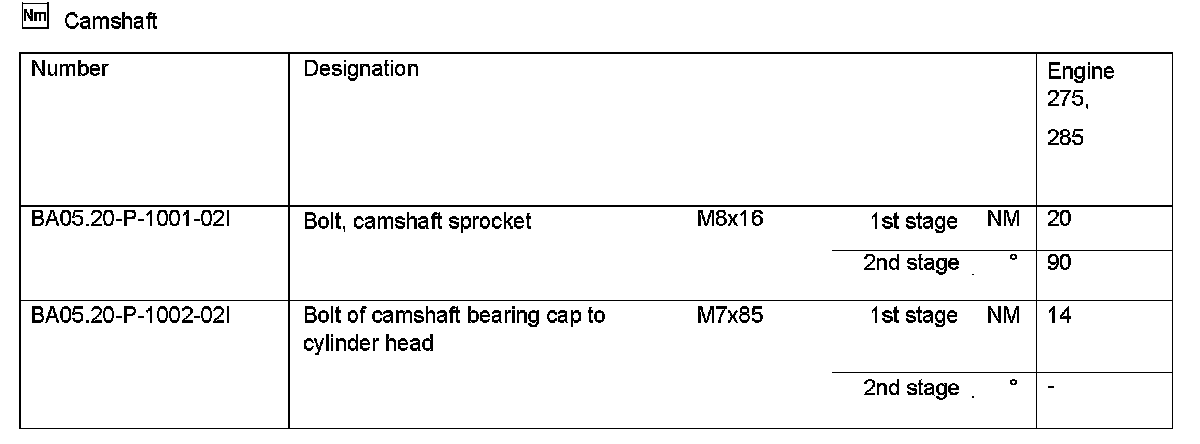

BA05.20-P-1000-02I Camshaft, camshaft adjustment
