Home >> Mercedes Benz >> 2007 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Cylinder Head Assembly >> Service and Repair >> Removal and Replacement >> AR01.30-P-5700MR Remove/Install Front Cover on Cylinder Head - Right Cover

AR01.30-P-5700MR Remove/Install Front Cover on Cylinder Head - Right Cover




ARO1.30-P-5700MR Remove/install front cover on cylinder head
- Right cover

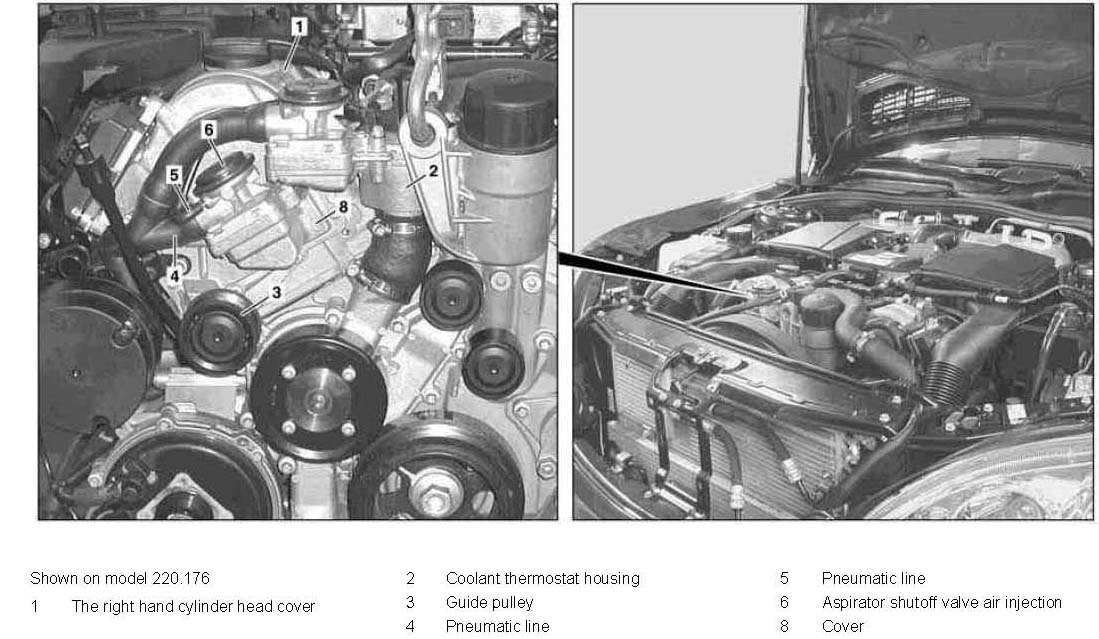

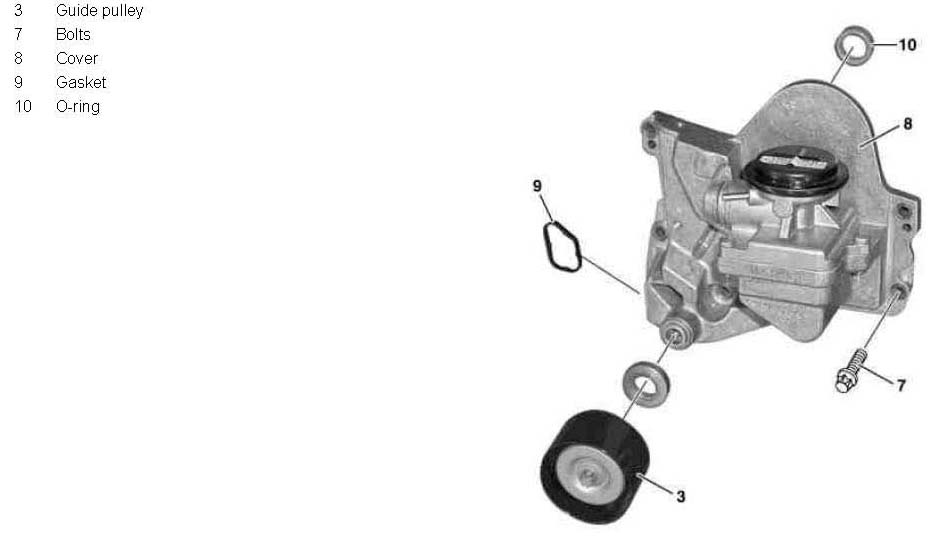

Component ID:






Component ID:

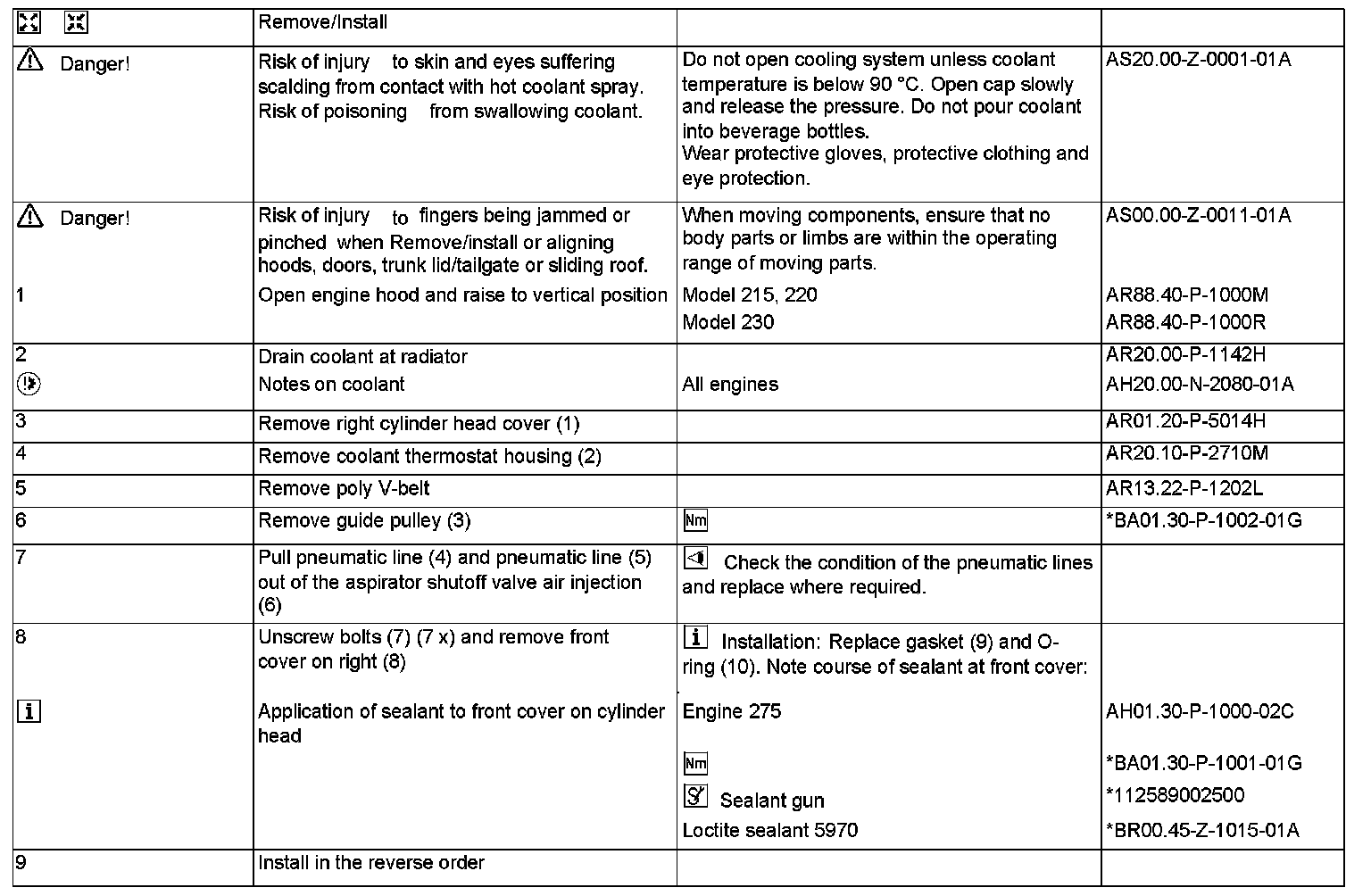

Steps 1-9:






Torque Specs:

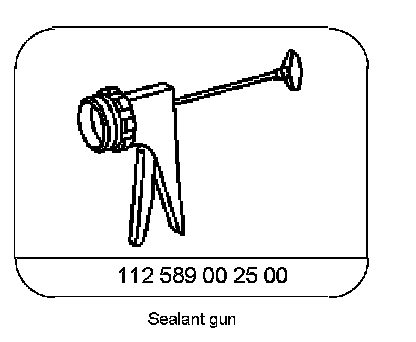

Commercially Available Tools:

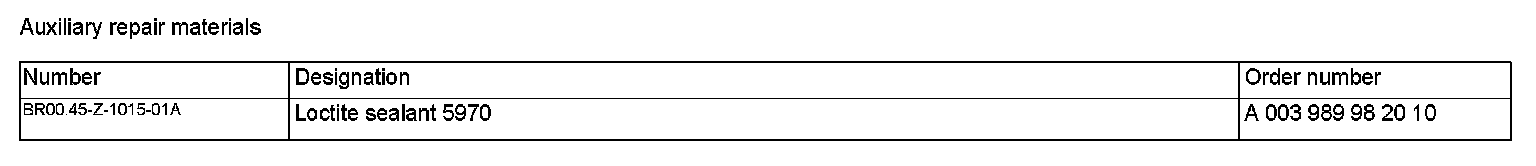

Auxiliary Repair Materials:
