Home >> Mercedes Benz >> 2007 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Cylinder Block Assembly >> Piston >> Service and Repair >> Removal and Replacement

Removal and Replacement

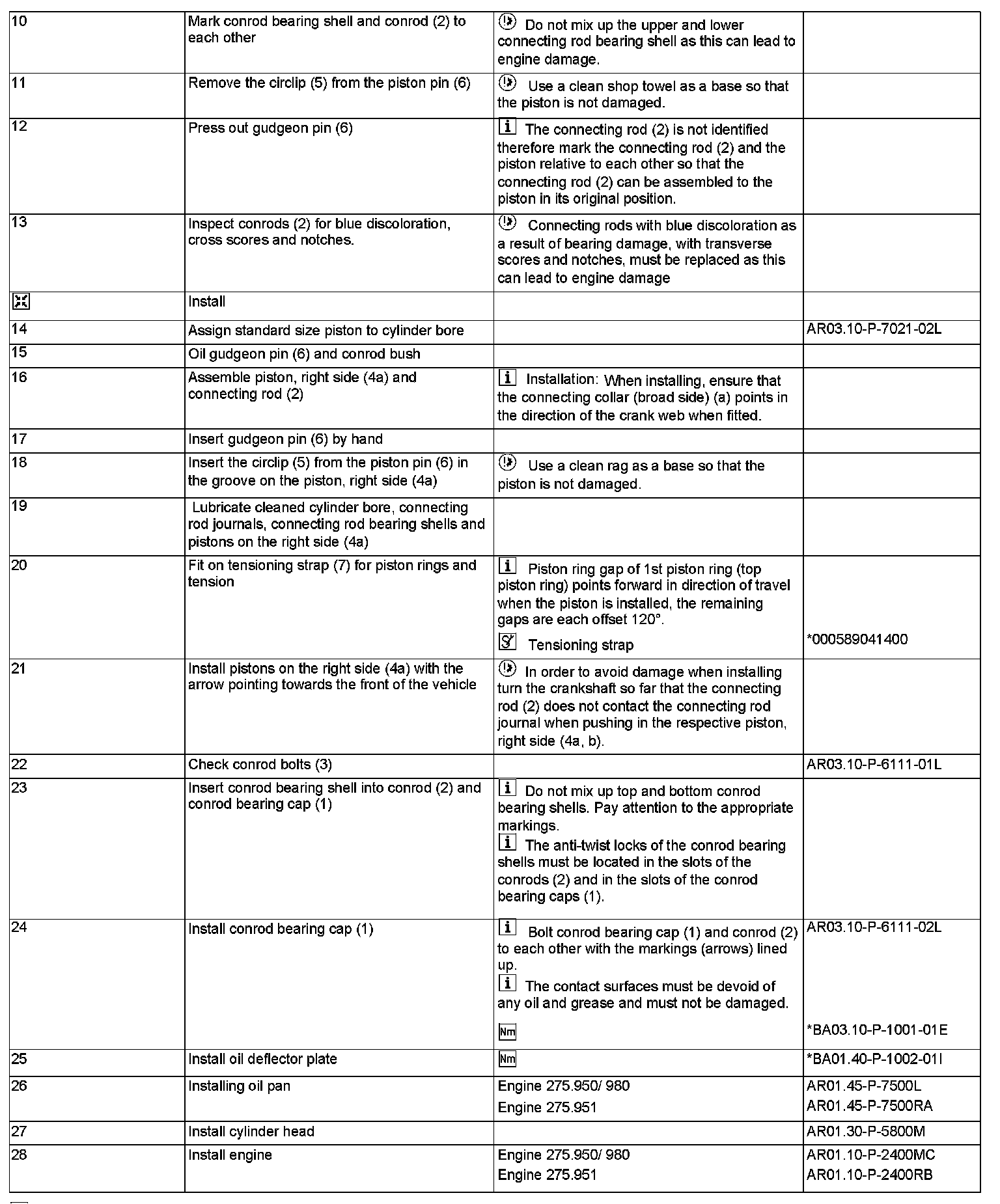

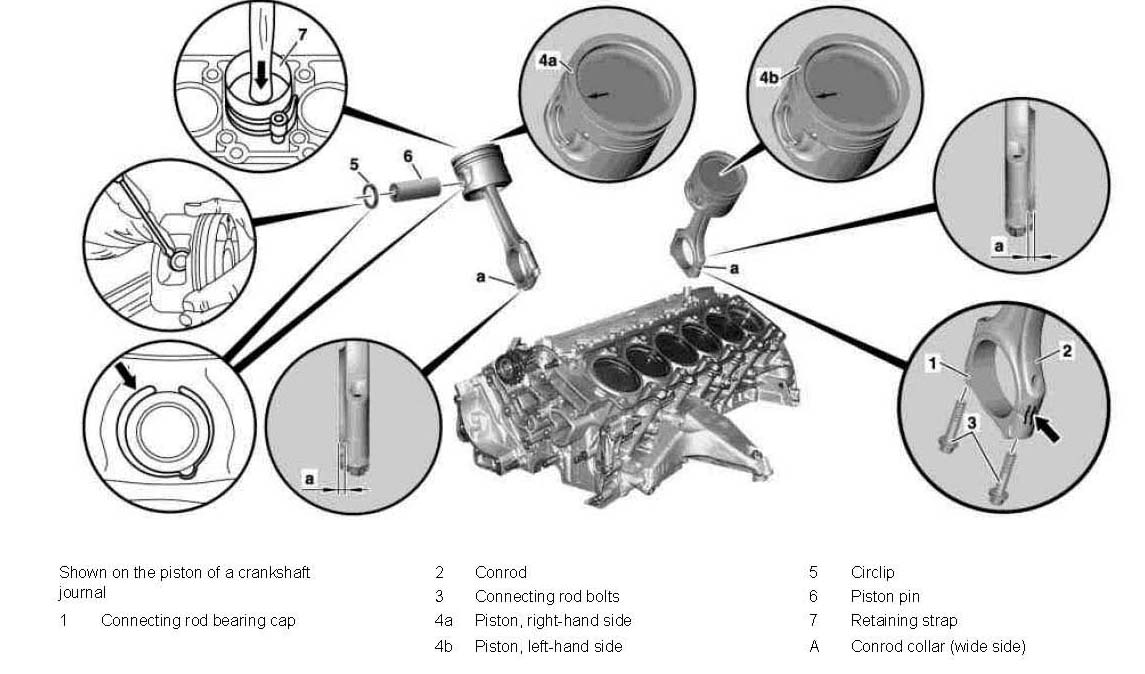

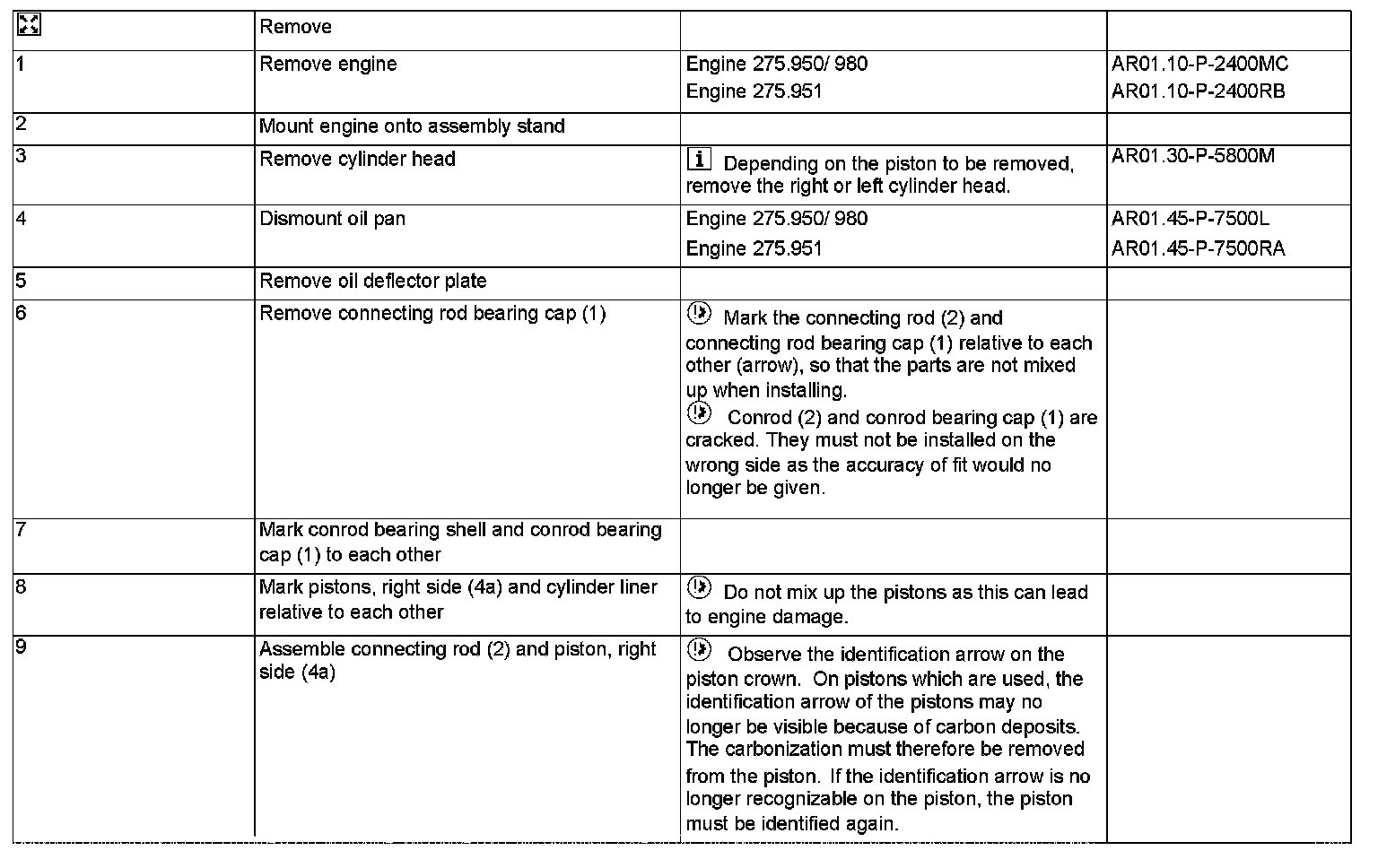

AR03.10-P-7021MC Piston removal and installation
