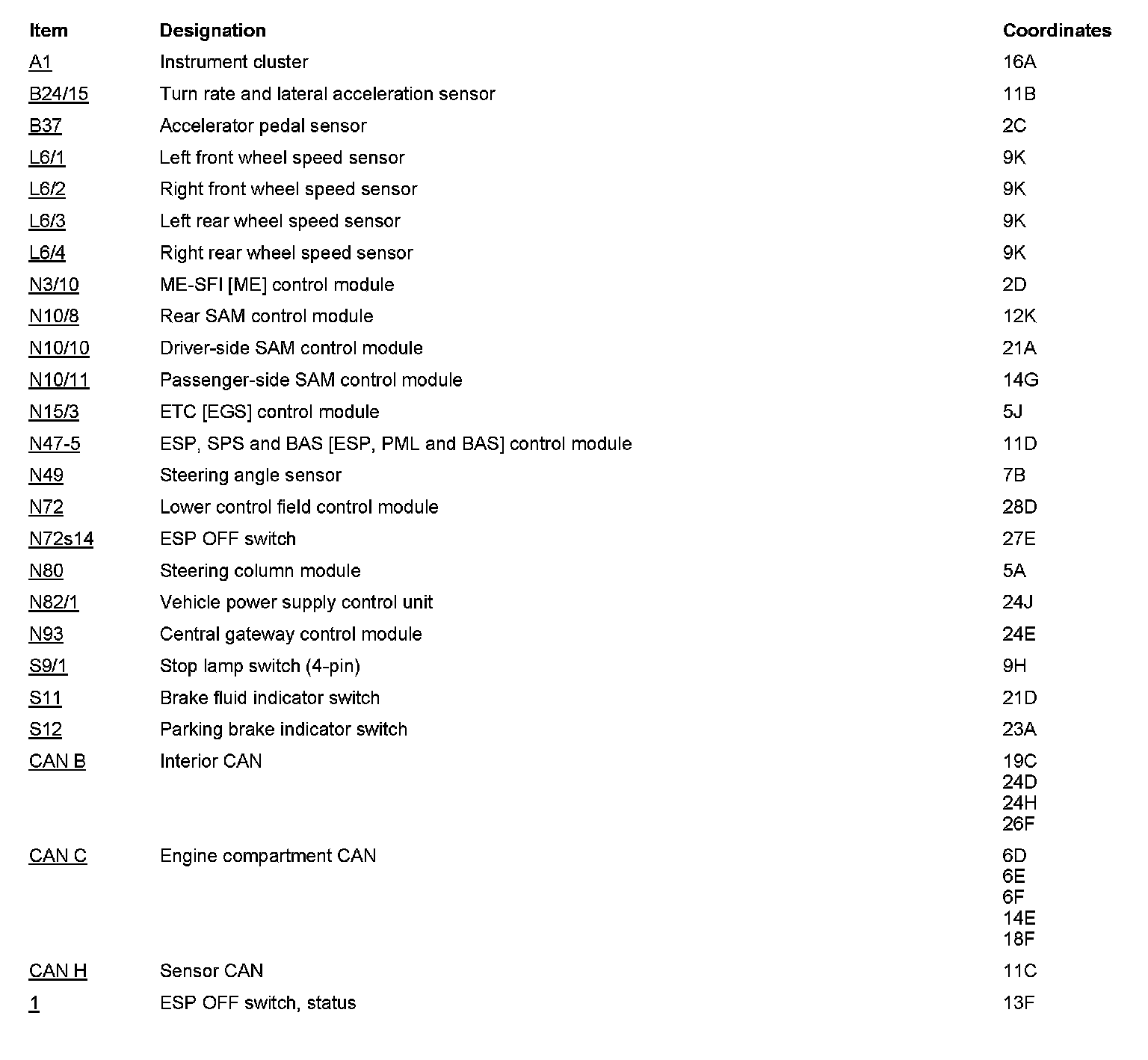

PE42.47-P-2050KA Adaptive Brake (ABR) Function Diagram



PE42.47-P-2050KA Adaptive Brake (ABR) Function Diagram

TYP 230.479
- with CODE (P99) Special model "AMG Black Series"
