AR77.50-P-3045R Adjusting Lock on C-Pillar

AR77.50-P-3045R Adjusting Lock on C-pillar
MODEL 230.4
- except CODE (P99) "AMG Black Series" special model

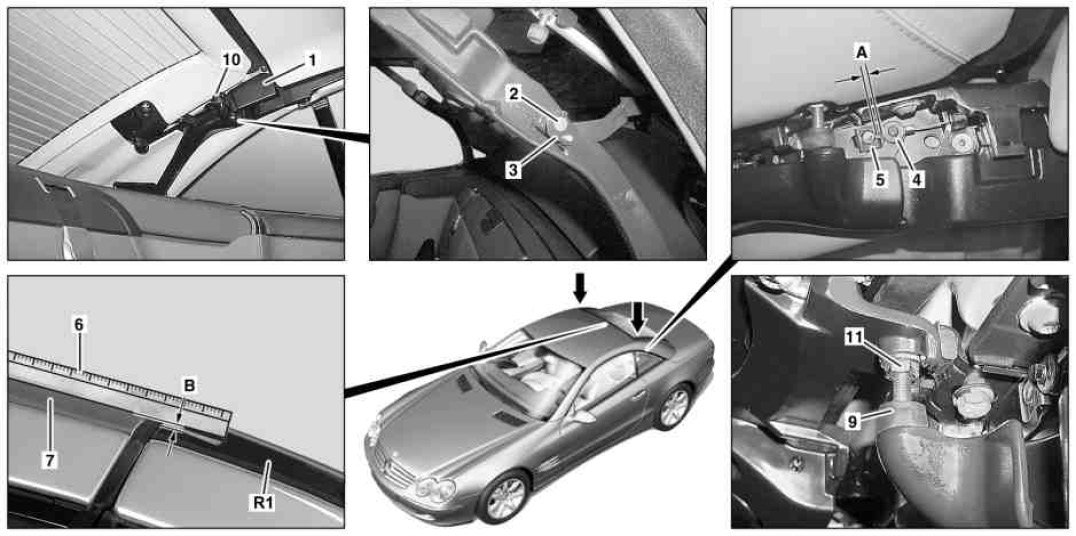

Shown on left side of vehicle

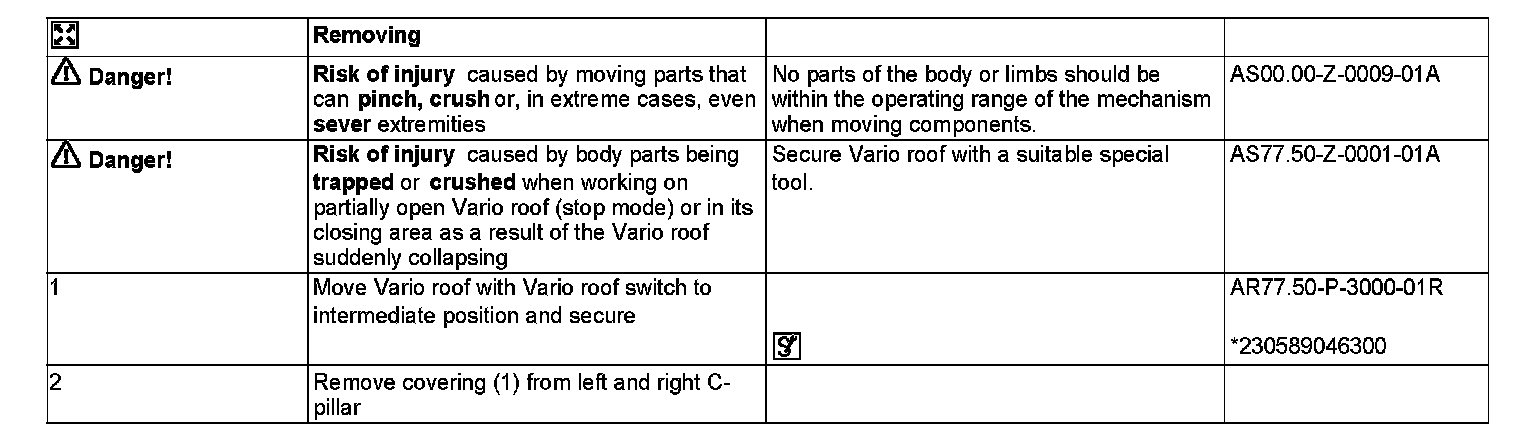

1 Cover
2 Screw

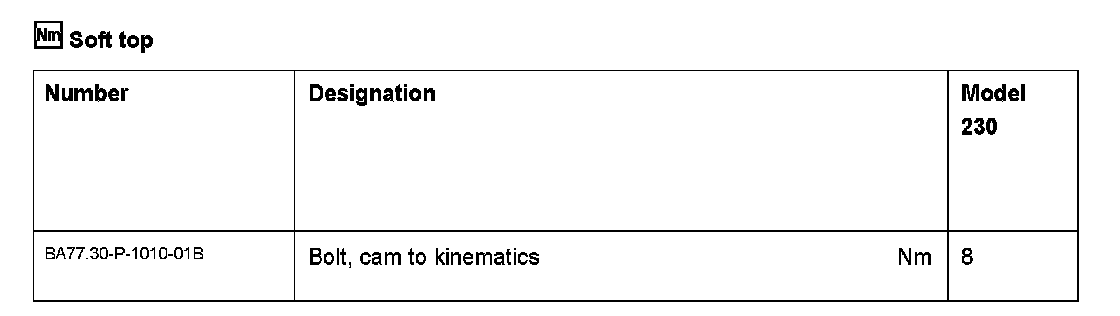

3 Cam
4 Vario roof cable eyelet
5 Clip-type fastener
6 Straightedge
7 Vario roof front section
9 Rear window buffer
10 Cover sleeve

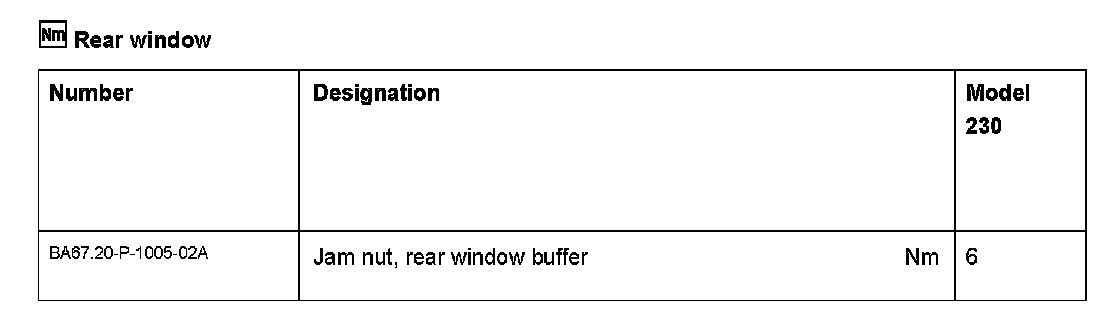

11 Jam nut

R1 Rear window defroster

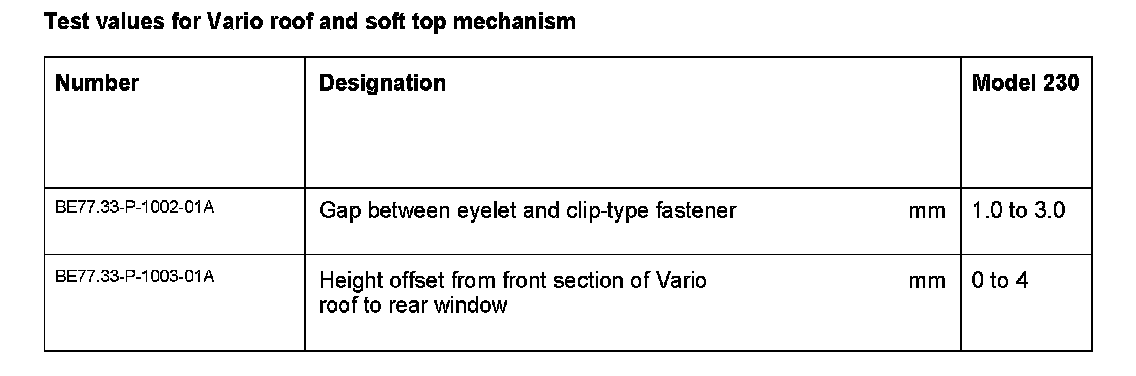

A Clearance
B Height offset

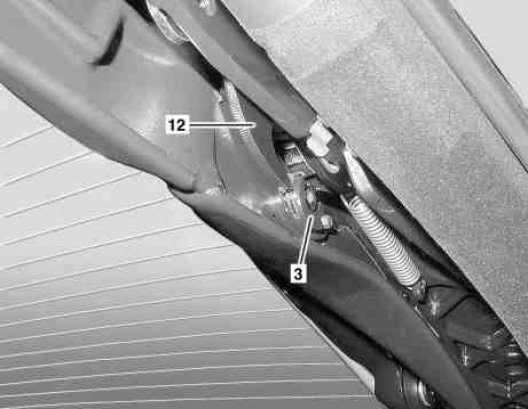

Shown on left C-pillar

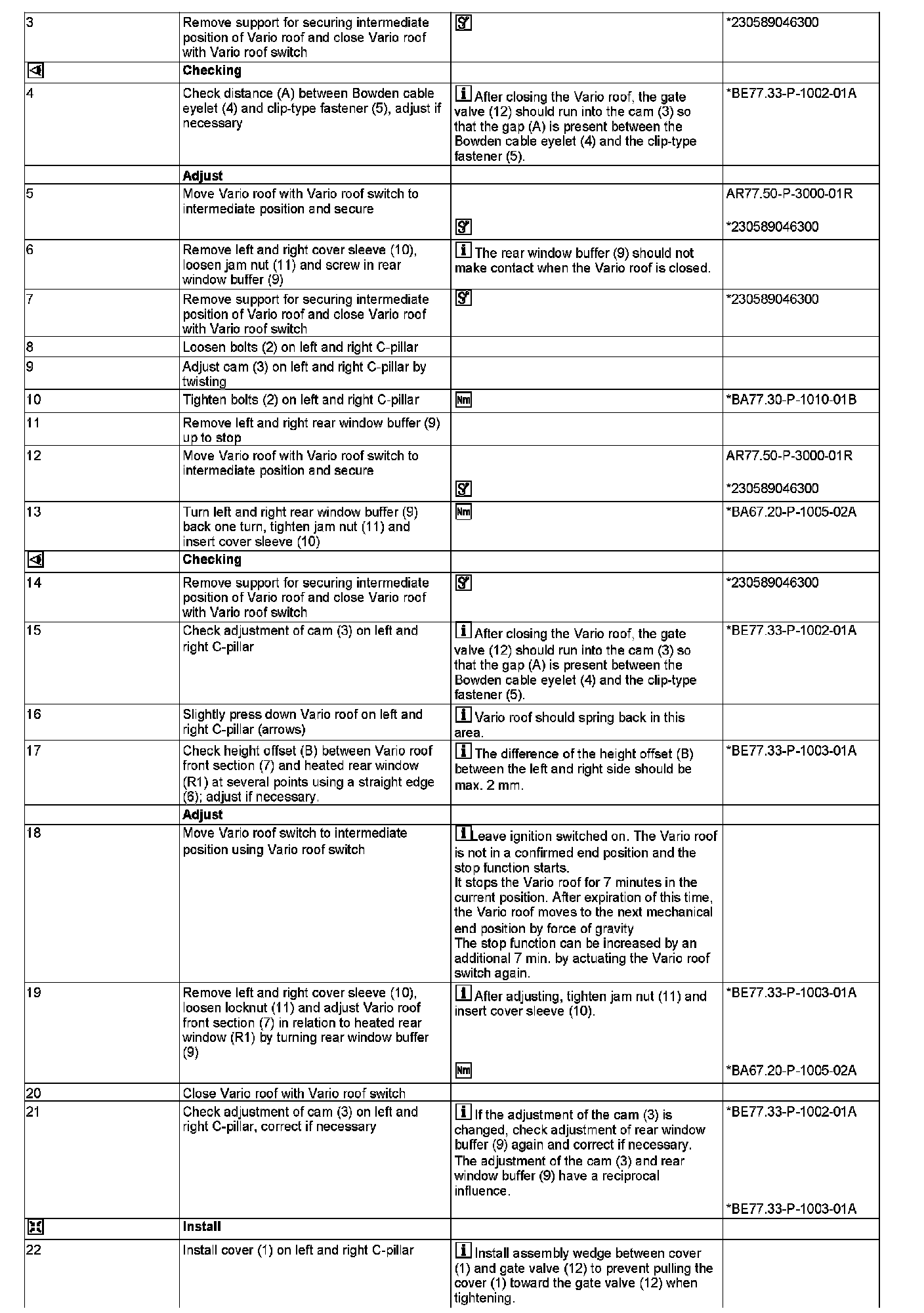

3 Cam
12 Wedge slide























110 589 03 59 00
Mounting wedge





230 589 04 63 00
Support
