Home >> Mercedes Benz >> 2007 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Entertainment Systems >> Description and Operation >> GF82.60-P-3109RA TV Tuner, Location/Task/Design/Function

GF82.60-P-3109RA TV Tuner, Location/Task/Design/Function



GF82.60-P-3109RA TV Tuner, Location/Task/Design/Function
- with CODE (352) COMAND operating and display system
- except CODE (491) USA version
- except CODE 9498) Japan version

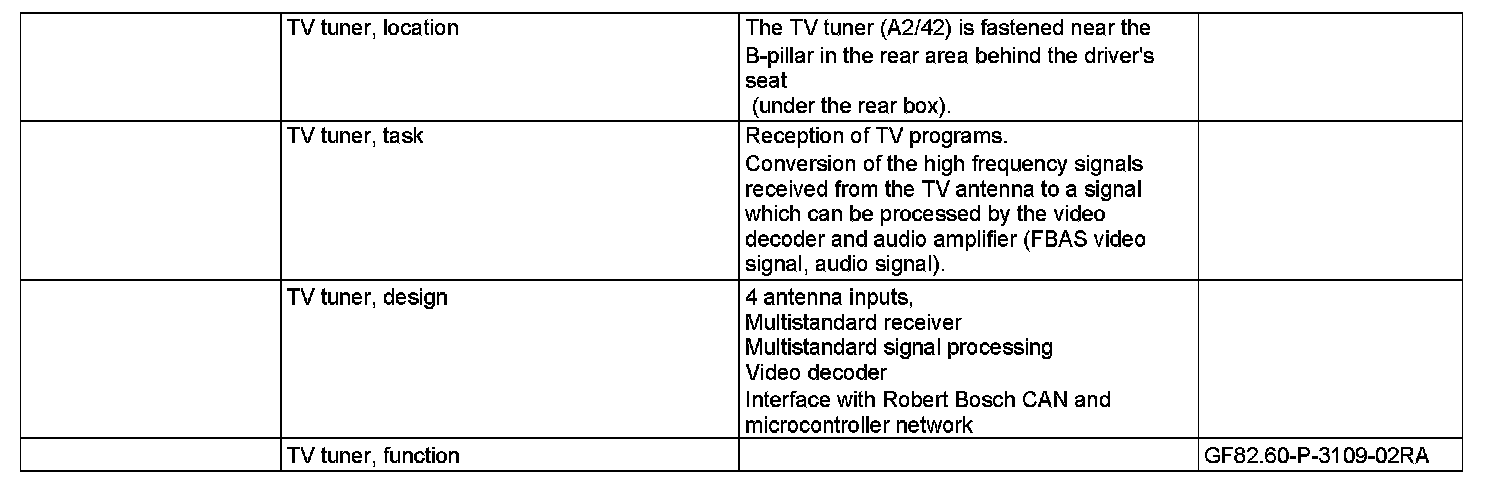

Location


Component Identification:
