AR03.30-P-8001RVK Remove/Install Flywheel/Drive Plate



AR03.30-P-8001RVK Remove/install flywheel/drive plate

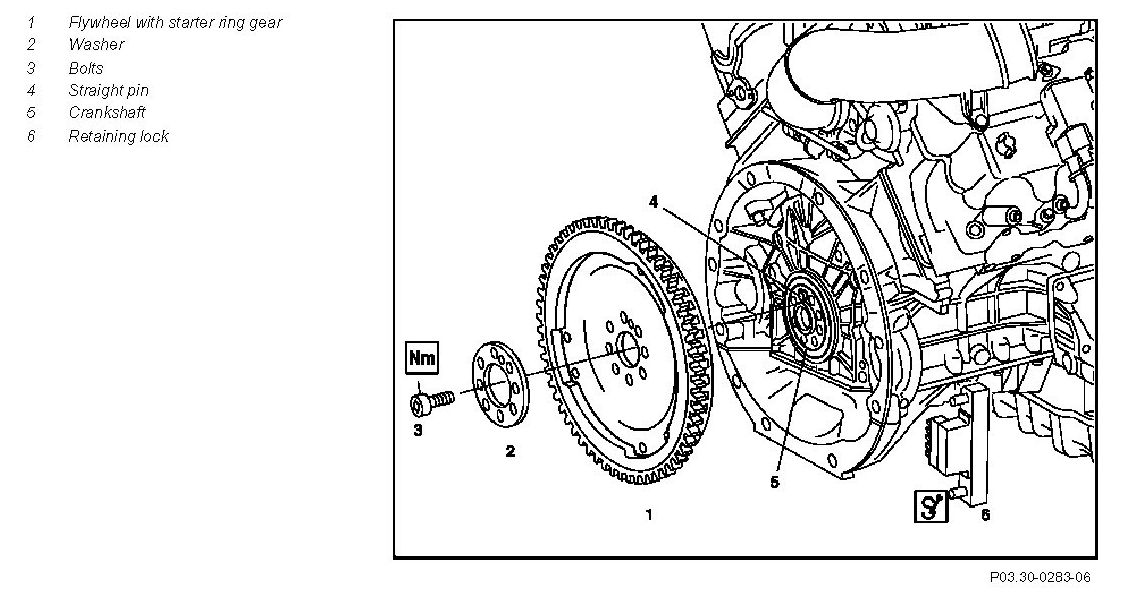

Component Identification:

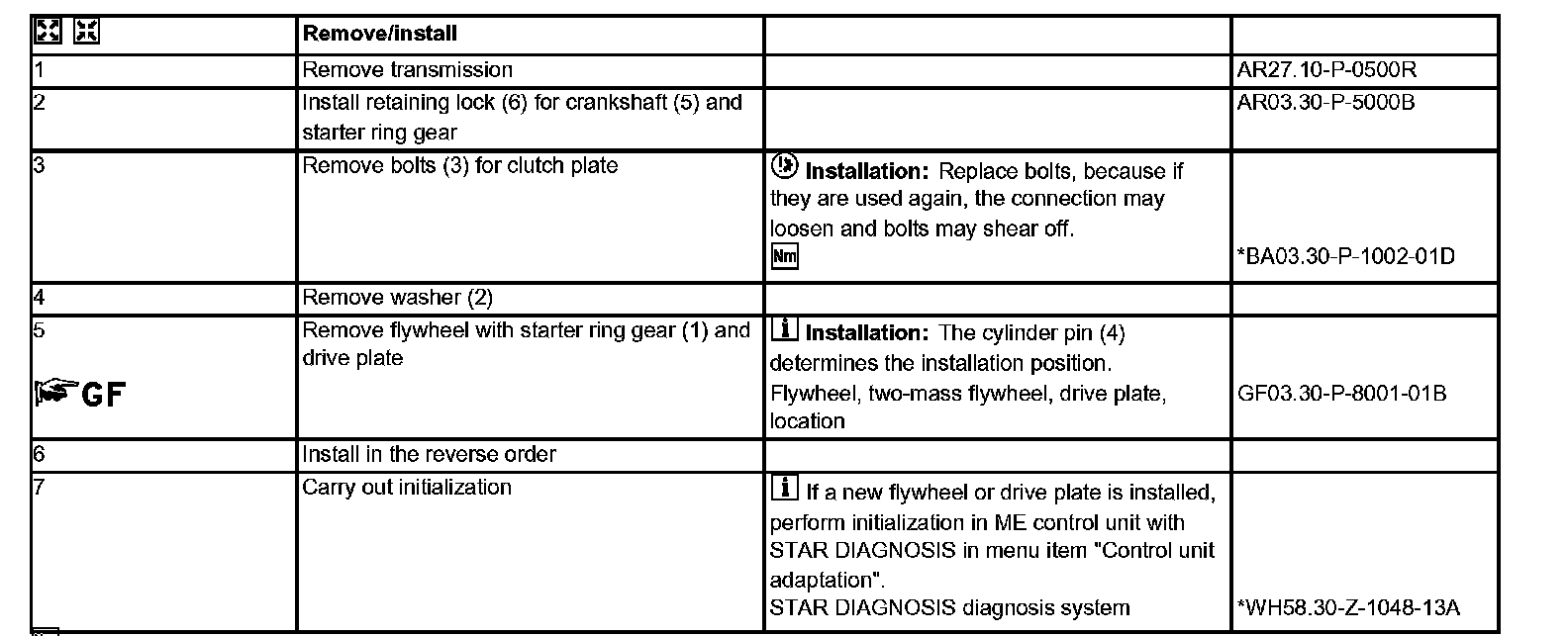

Remove/install Steps 1-7:




Flywheel, driven plate, vibration damper, starter ring gear:

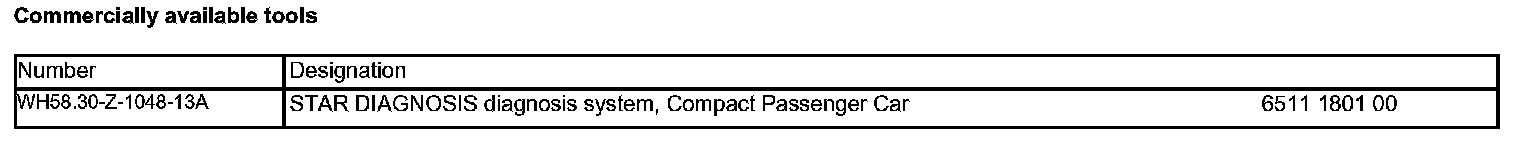

Commercially available tools:
