Home >> Mercedes Benz >> 2007 >> SL 55 AMG (230.472) V8-5.5L SC (113.995) >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Differential Mount >> Service and Repair >> AR35.10-P-0051R Remove/Install Front Center Assembly Suspension on Rear Axle Carrier

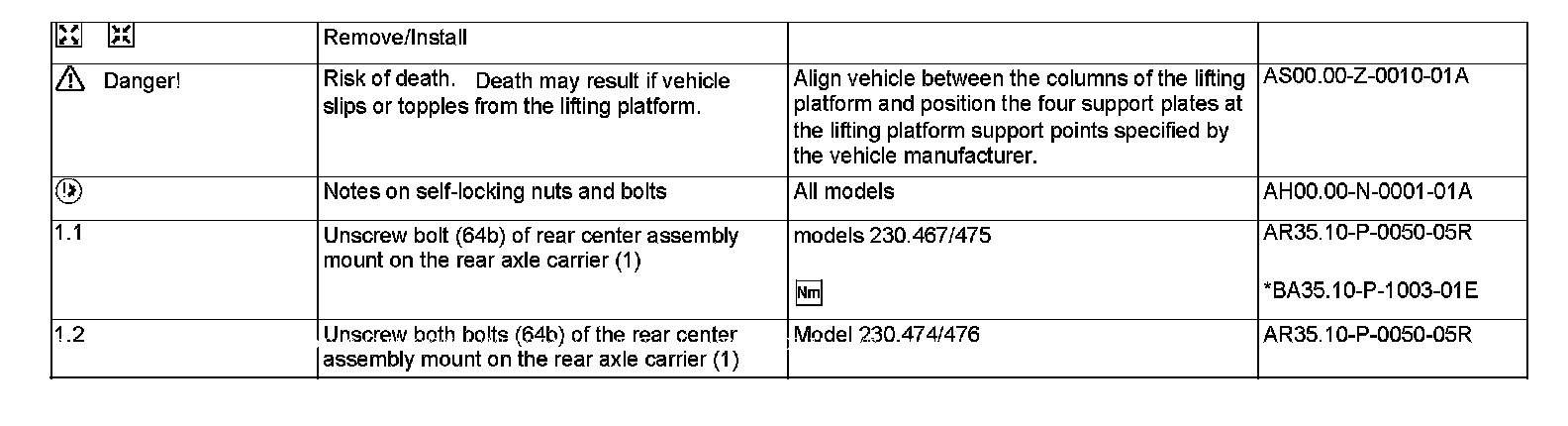

AR35.10-P-0051R Remove/Install Front Center Assembly Suspension on Rear Axle Carrier




AR35.10-P-0051R Remove/Install Front Center Assembly Suspension on Rear Axle Carrier
