AR35.10-P-0050-05R Remove Bolt of Rear Center Piece In Rear Axle Carrier

AR35.10-P-0050-05R Remove bolt of rear center piece in rear axle carrier

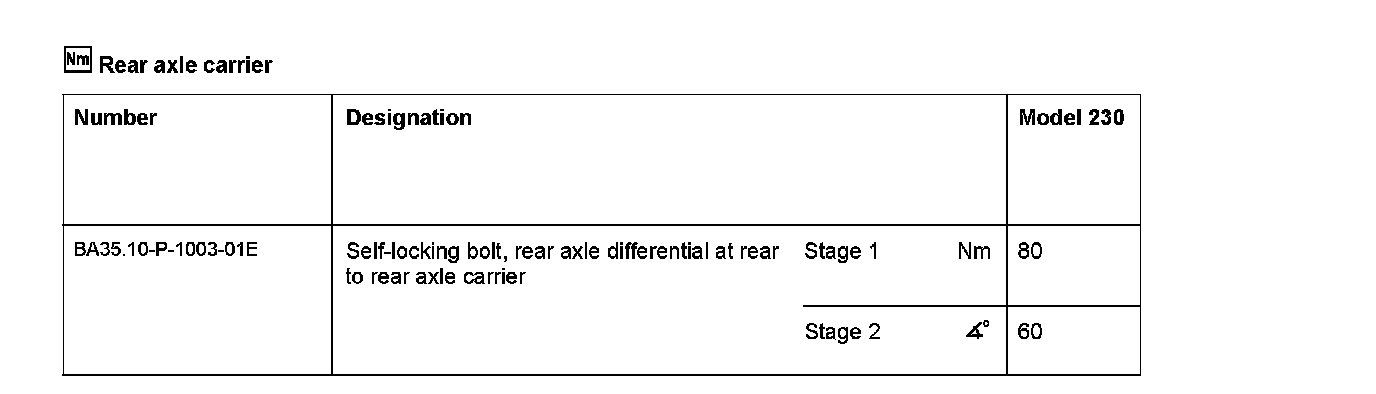

Rear axle carrier:

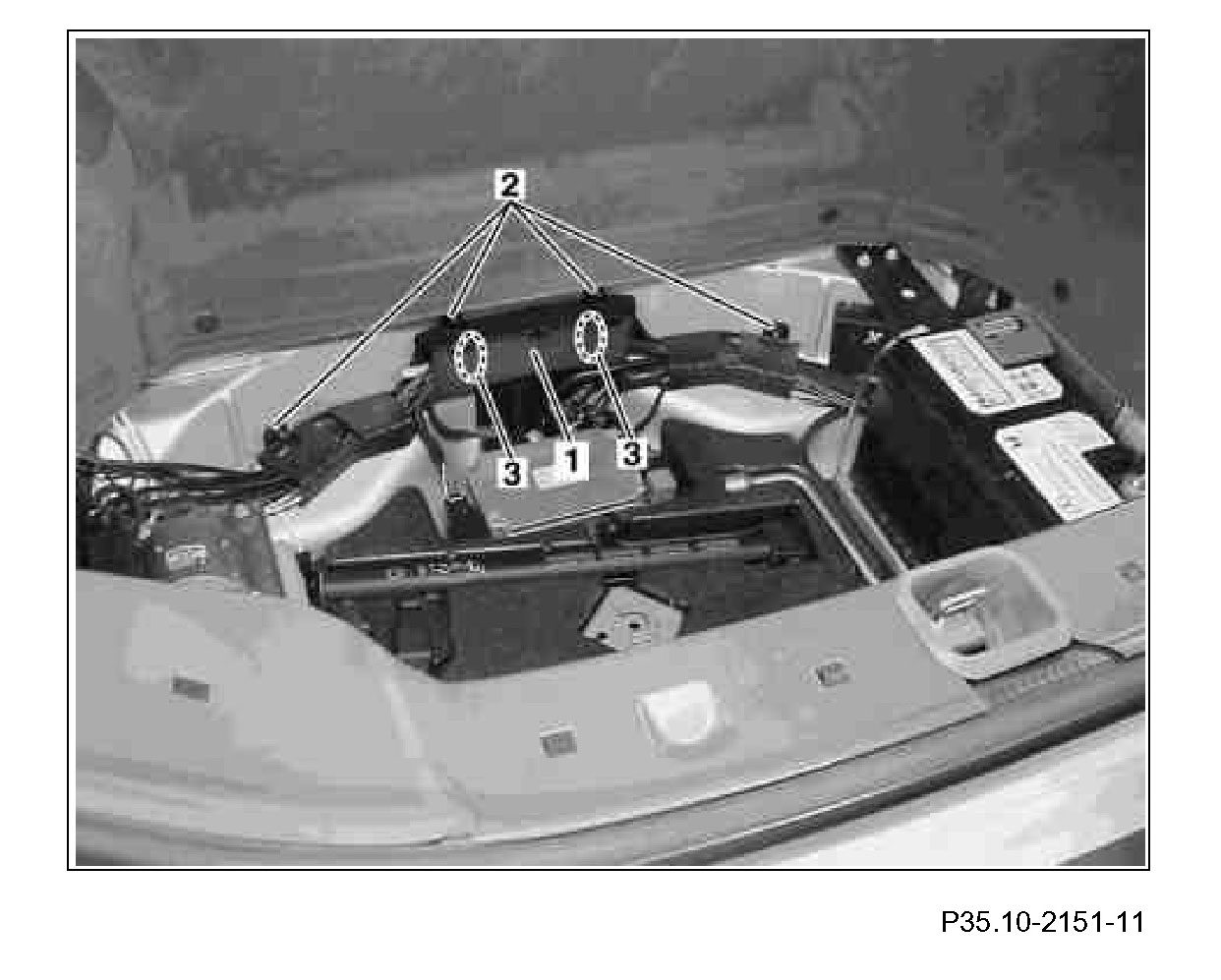

Component Identification:

1 Open cable duct (1), remove lines and press to one side.
2 Unscrew nuts (2) and detach cable duct (1).

Model 230.454/ 456/ 458/ 467/ 471/ 475
3.1 Lever out left-hand body plug (3) and unscrew bolt for rear center assembly mounting.

Model 230.470/ 472/ 474/ 476/ 477/ 479
3.2 Lever out left and right body plugs (3) and unscrew bolts of rear differential mount.
