AR35.10-P-0050-02R Remove/Install Rear Rubber Mount of Rear Axle Center Assembly Suspension

AR35.10-P-0050-02R Remove/install rear rubber mount of rear axle center assembly suspension
- except CODE (P99) Special model "AMG Black Series"

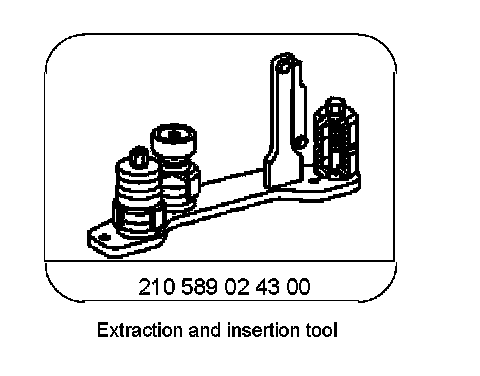

Special Tools:

Component Identification:

Remove rubber mounts
Vehicles with 2-point suspension: Always replace rubber bushing (62) in pairs.

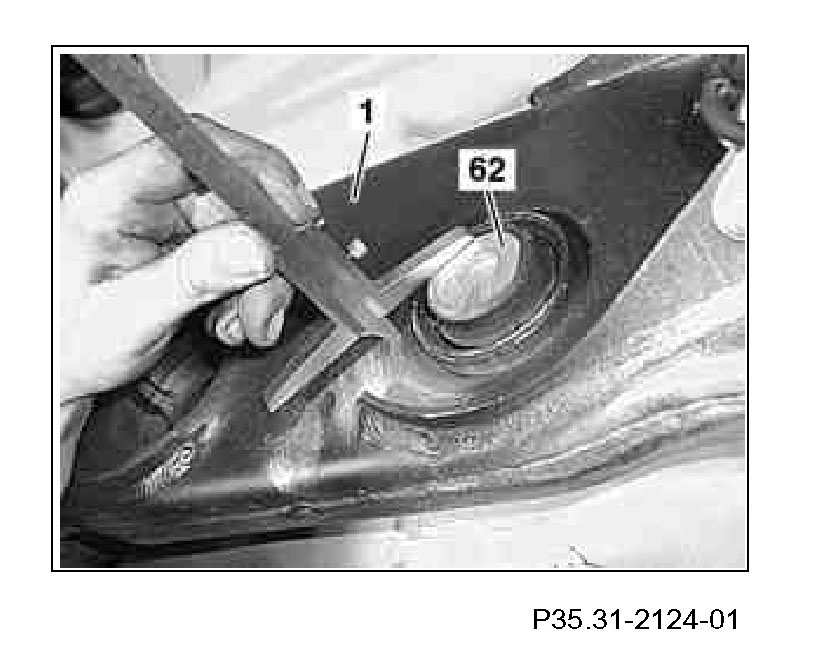

1 Measure protrusion of rubber bushing (62) to rear axle carrier (1) with depth gauge and note measured value.

Component Identification:

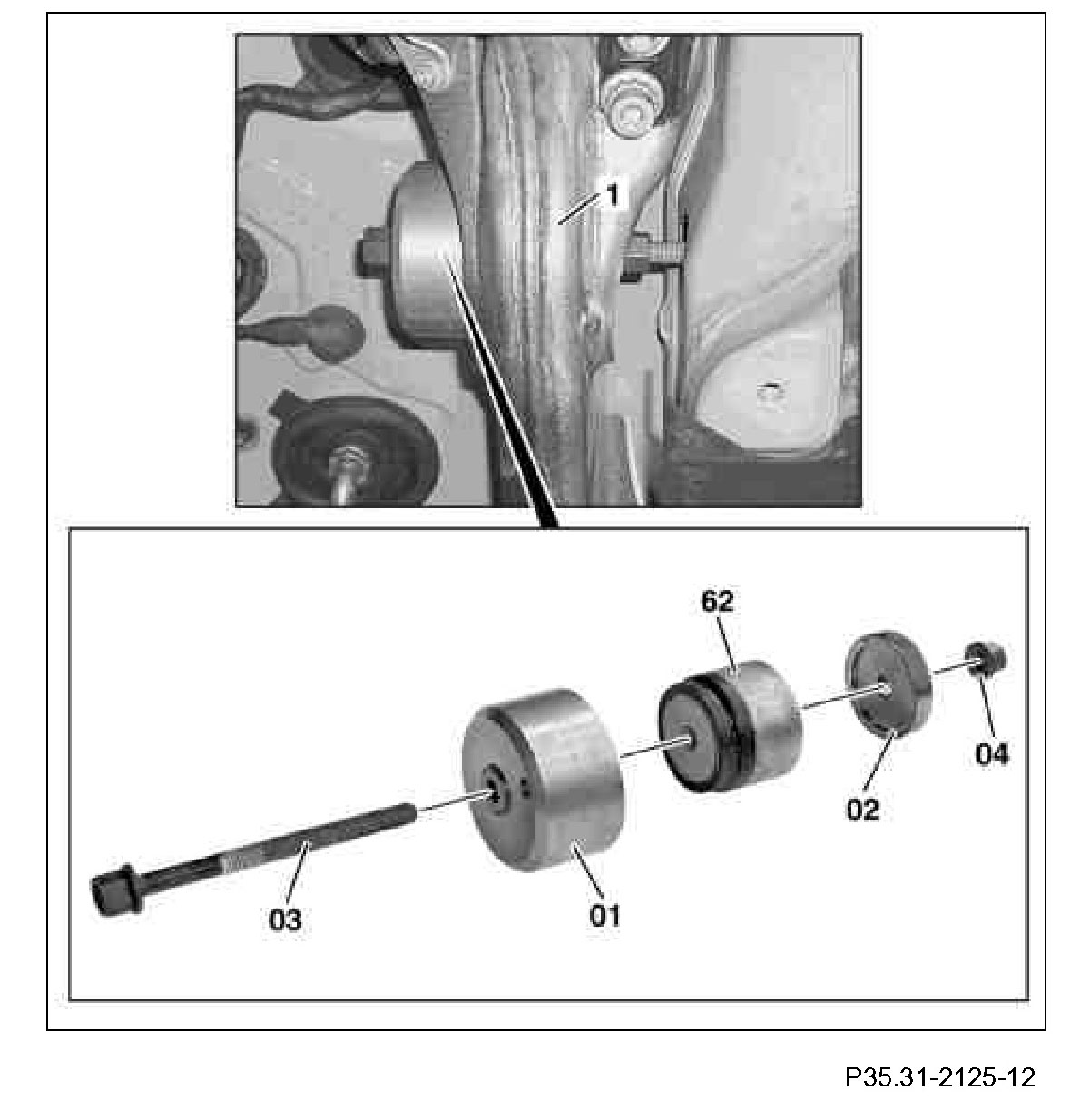

2 Using sleeve (01), thrust piece (02), spindle (03) and nut (04) pull rubber mount (62) out of the rear axle carrier (1) towards the front of the vehicle.

Component Identification:

Install rubber mounts
The flat contact surface of the rubber bushing (62) must point towards the vehicle front.

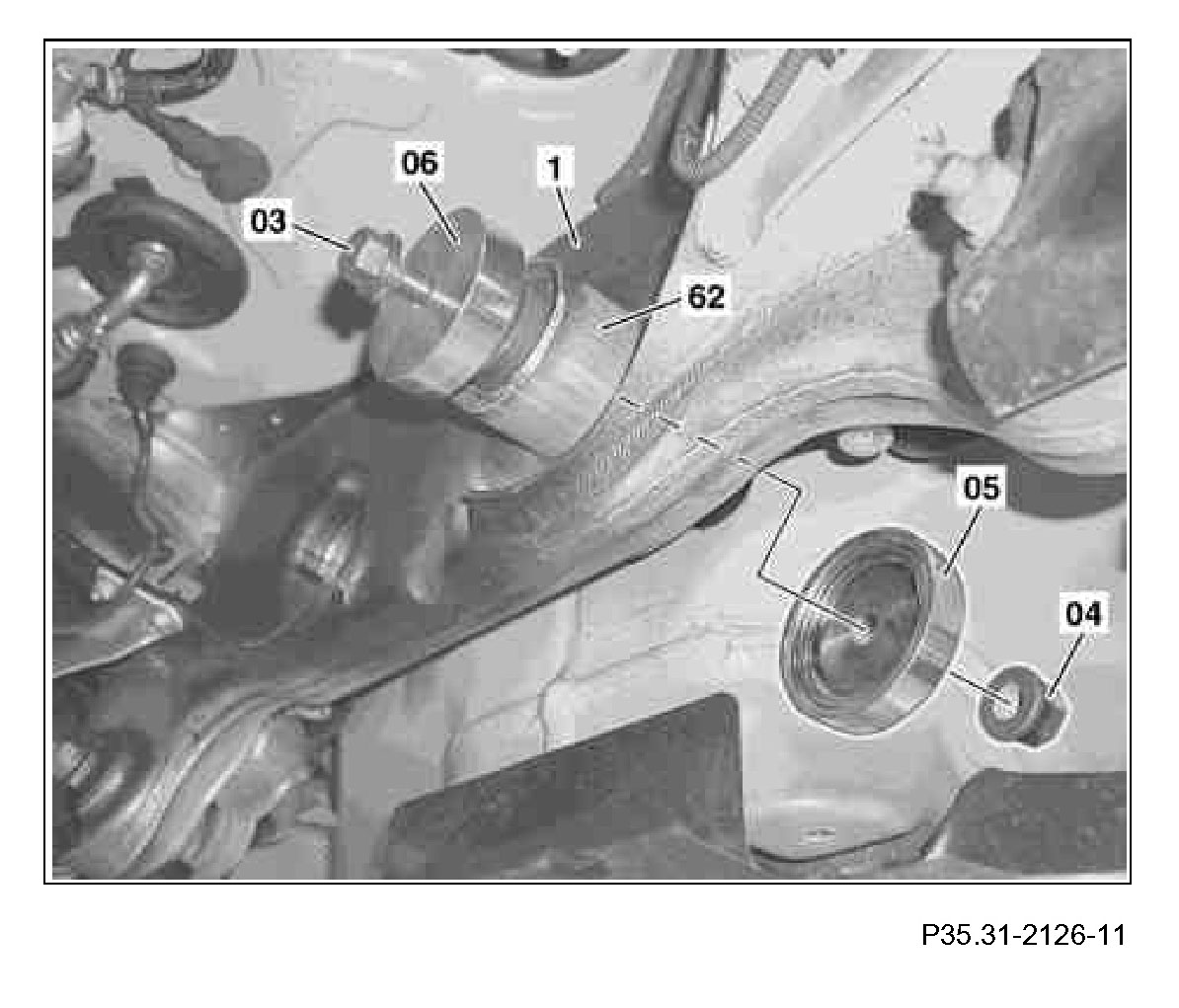

3 Position rubber bushing (62) on the rear axle carrier (1) from the front and draw into the rear axle carrier (1) using sleeve (05), thrust piece (06), spindle (03) and nut (04) until the protrusion measured previously is reached.
