SL 55 AMG (230.472) V8-5.5L SC (113.995)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Differential Assembly
>>
Differential Mount
>>
Service and Repair
>>

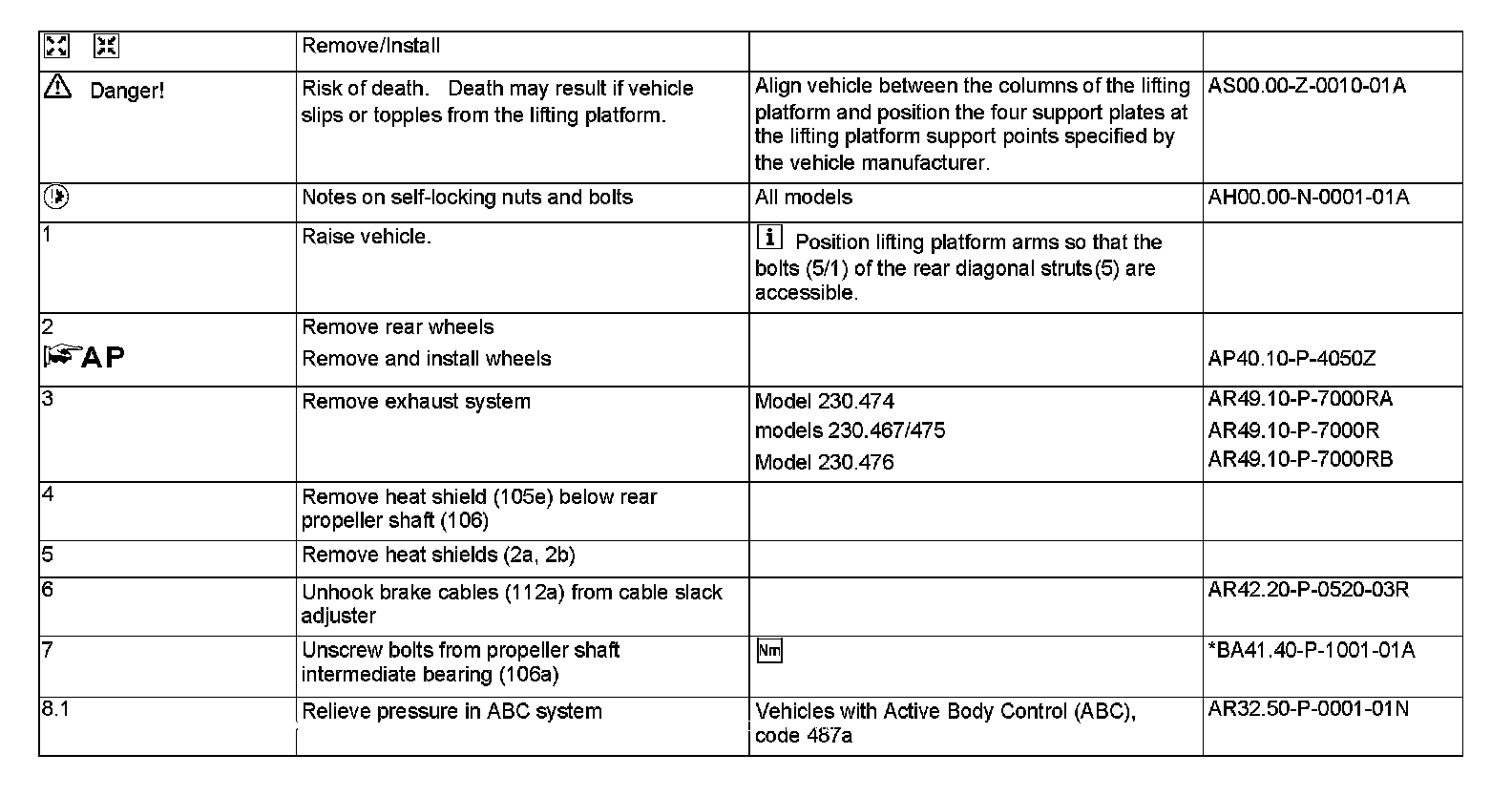

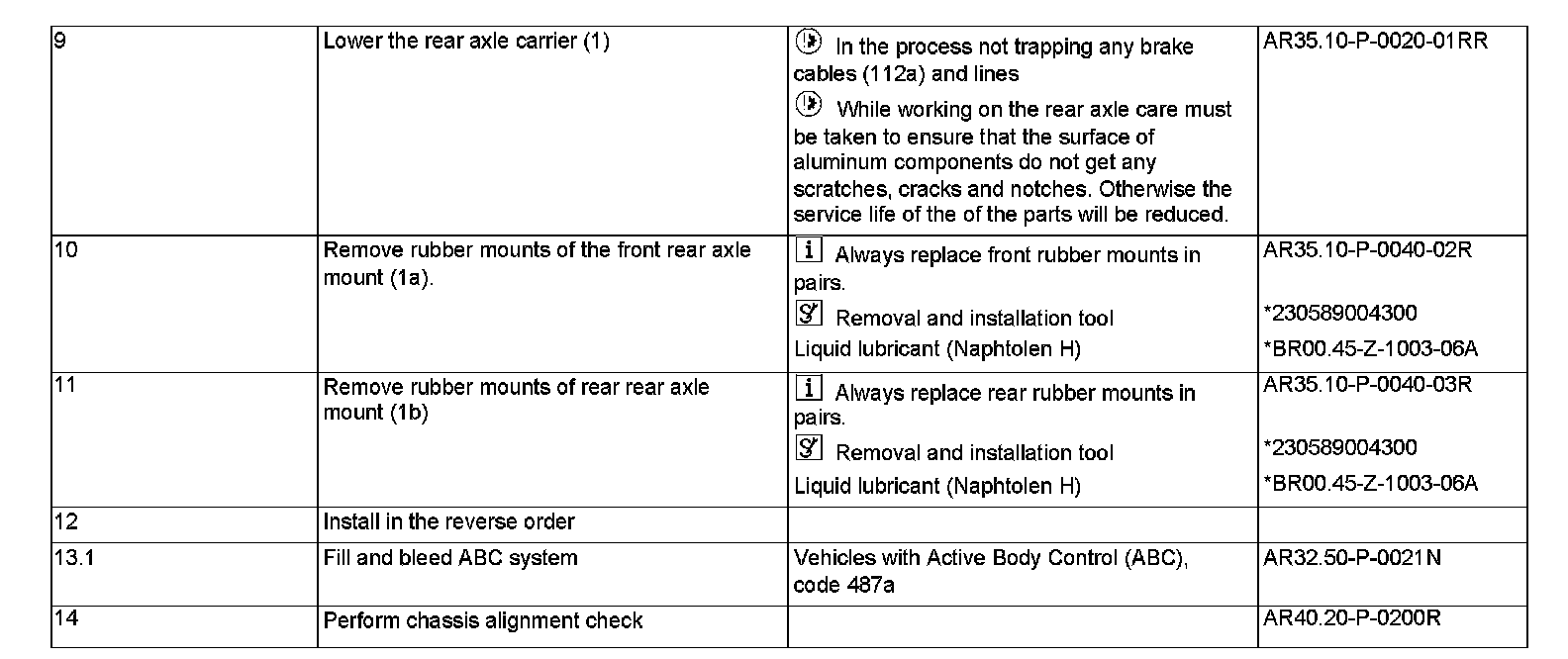

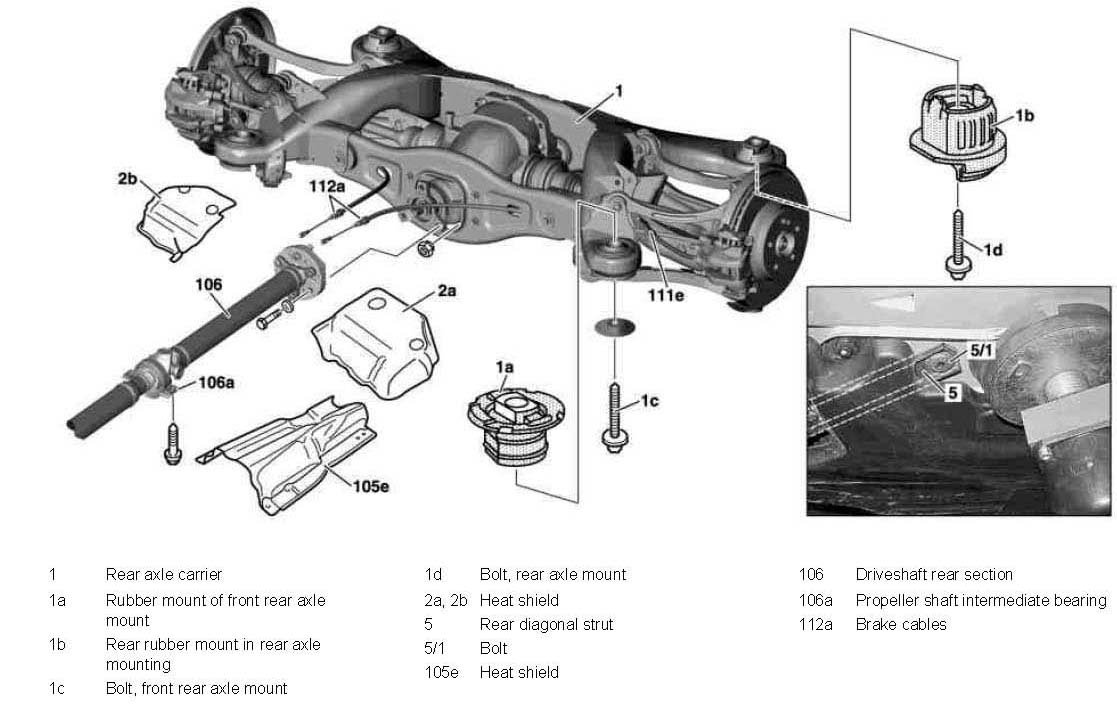

AR35.10-P-0040R Remove/Install Front and Rear Rubber Bushings In Rear Axle Mount
AR35.10-P-0040R Remove/Install Front and Rear Rubber Bushings In Rear Axle Mount
AR35.10-P-0040R Remove/Install Front and Rear Rubber Bushings In Rear Axle Mount
