GF54.10-P-4200R Battery Cut-Off Relay, Location/Task/Design/Function
GF54.10-P-4200R Battery Cut-Off Relay, Location/Task/Design/Function

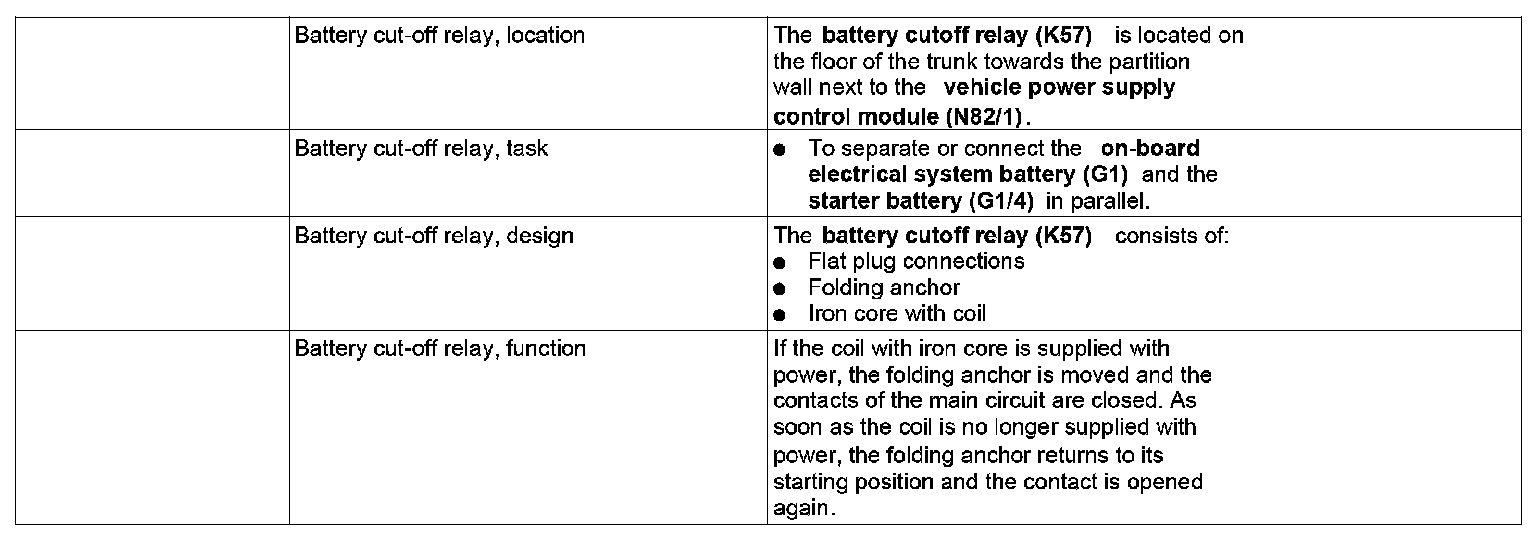

GF54.10-P-4200R Battery Cut-off Relay, Location/task/design/function

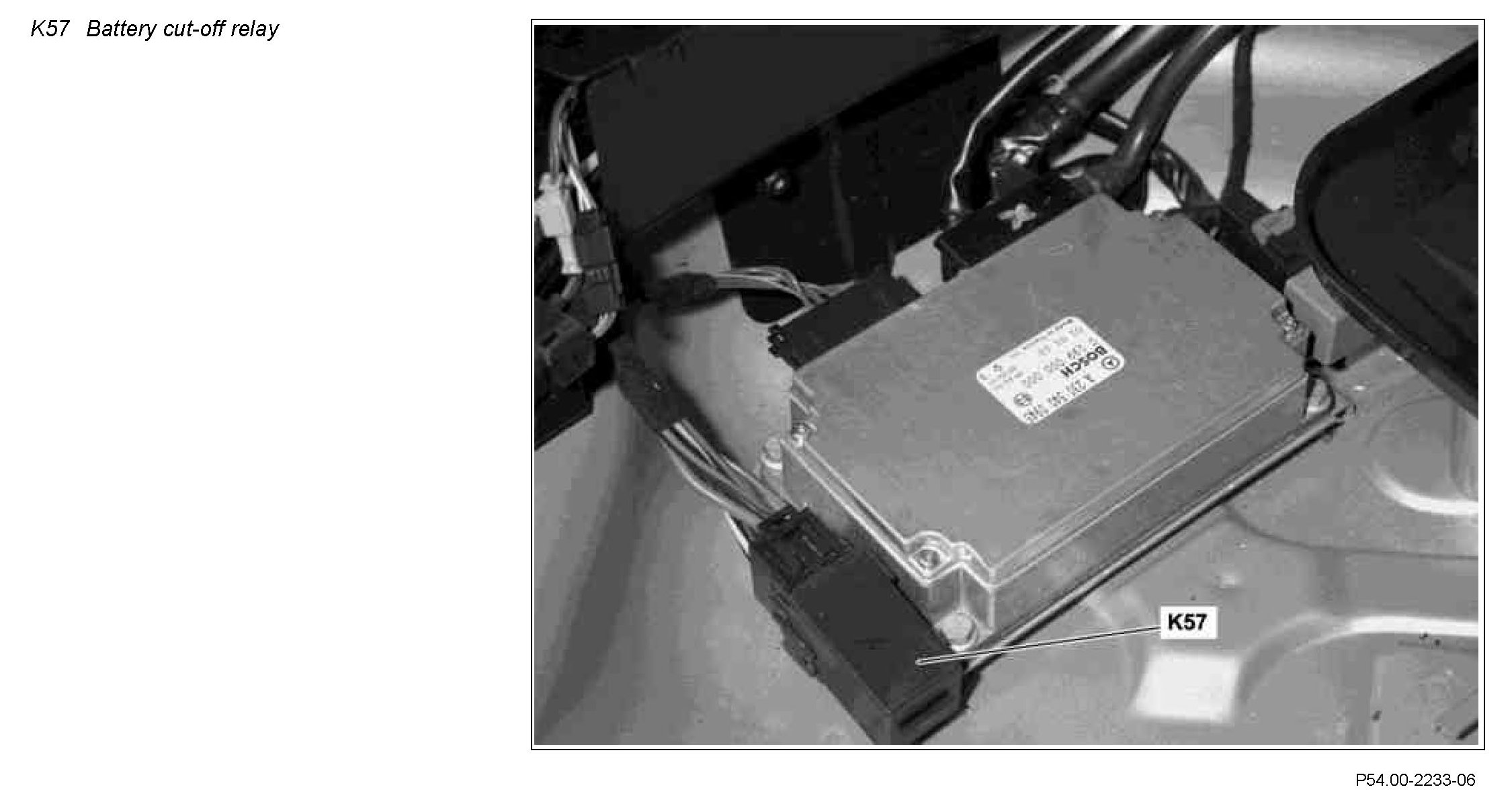

Component Identification:
