Tilt Wheel Switch: Service and Repair

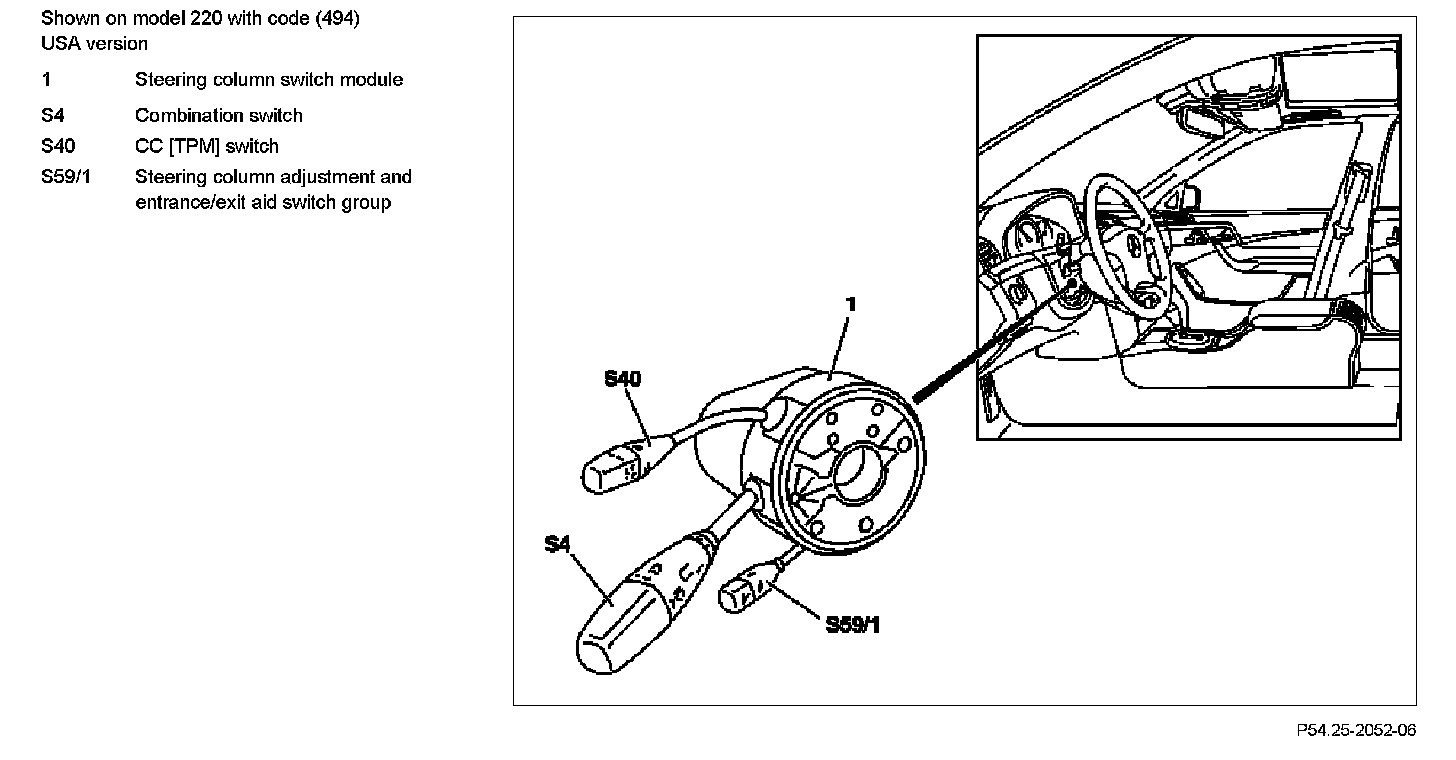

AR54.25-P-2804I Removing and Installing Steering Column Adjustment Switch

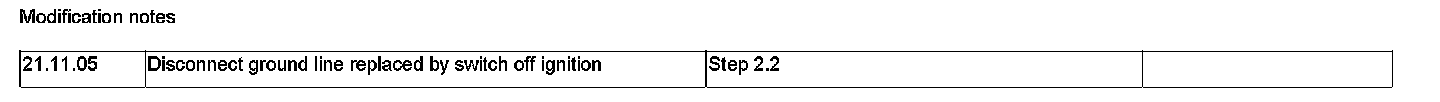

Modification Notes:

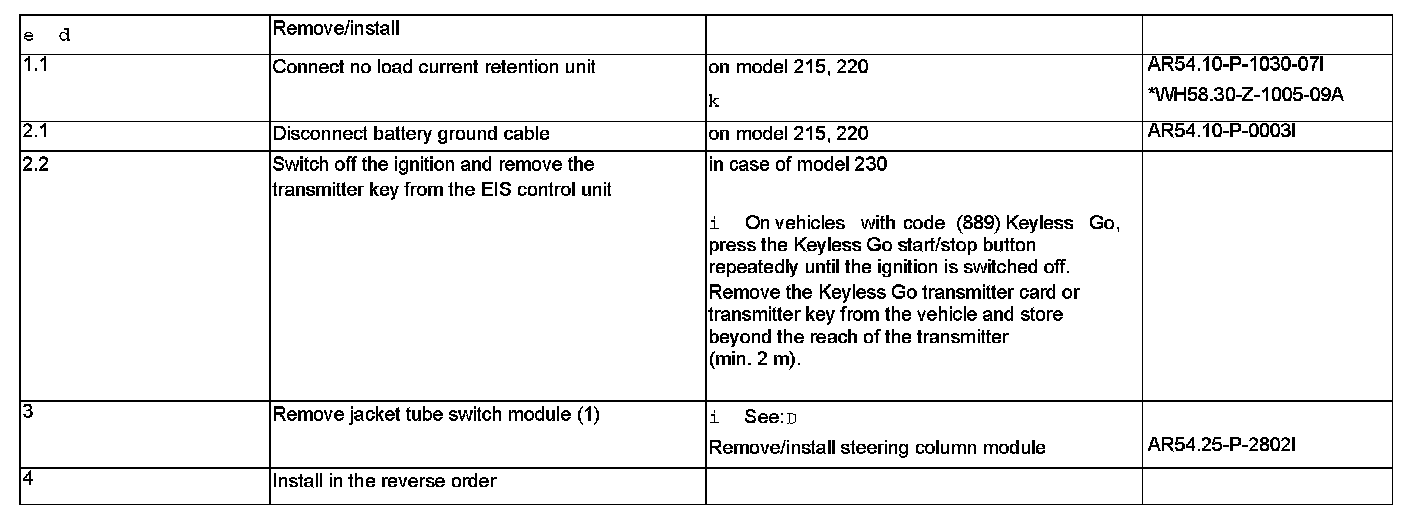

Steps 1.1 - 4:

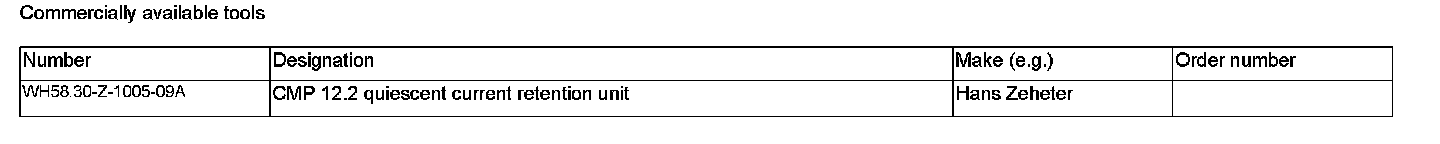

Commercially Available Tools:
