FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2007
>>
SL 55 AMG (230.472) V8-5.5L SC (113.995)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Restraints and Safety Systems
>>
Impact Sensor
>>
Service and Repair
>>

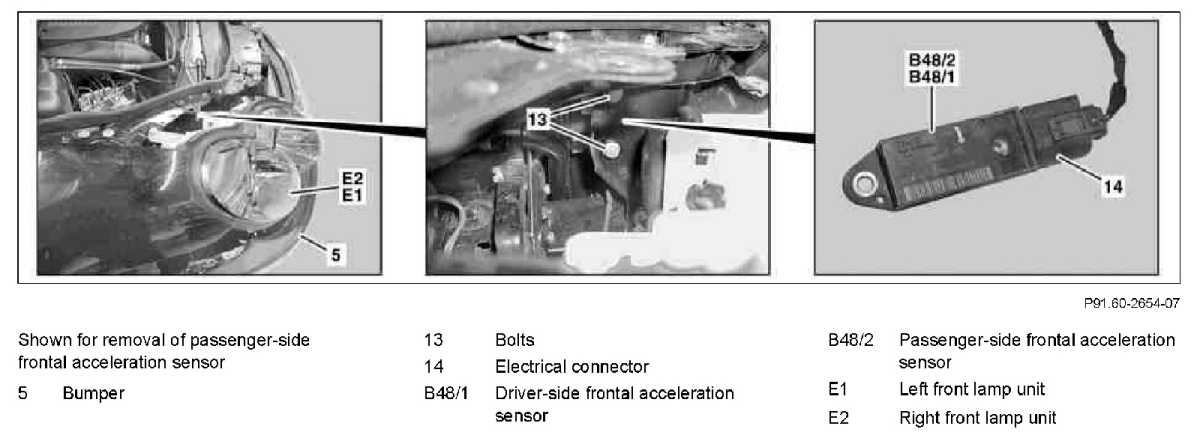

AR91.60-P-0750R Remove/Install Front Acceleration Sensor
AR91.60-P-0750R Remove/Install Front Acceleration Sensor
AR91.60-P-0750R Remove/Install Front
Acceleration Sensor

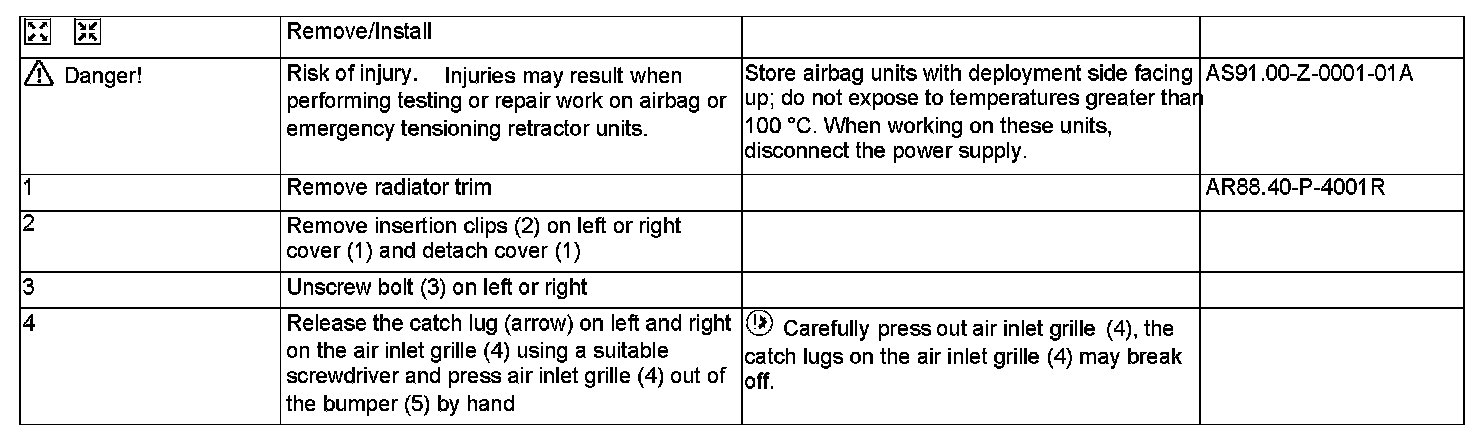

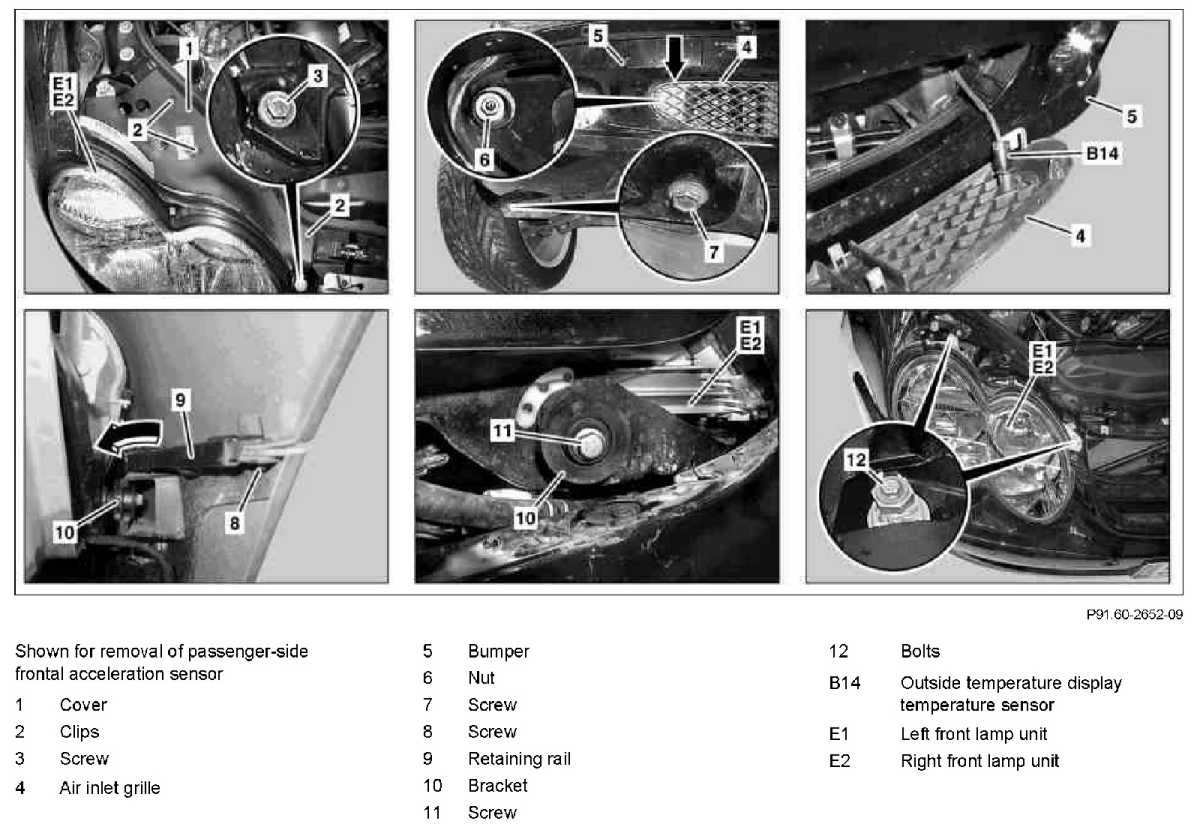

Part 1:

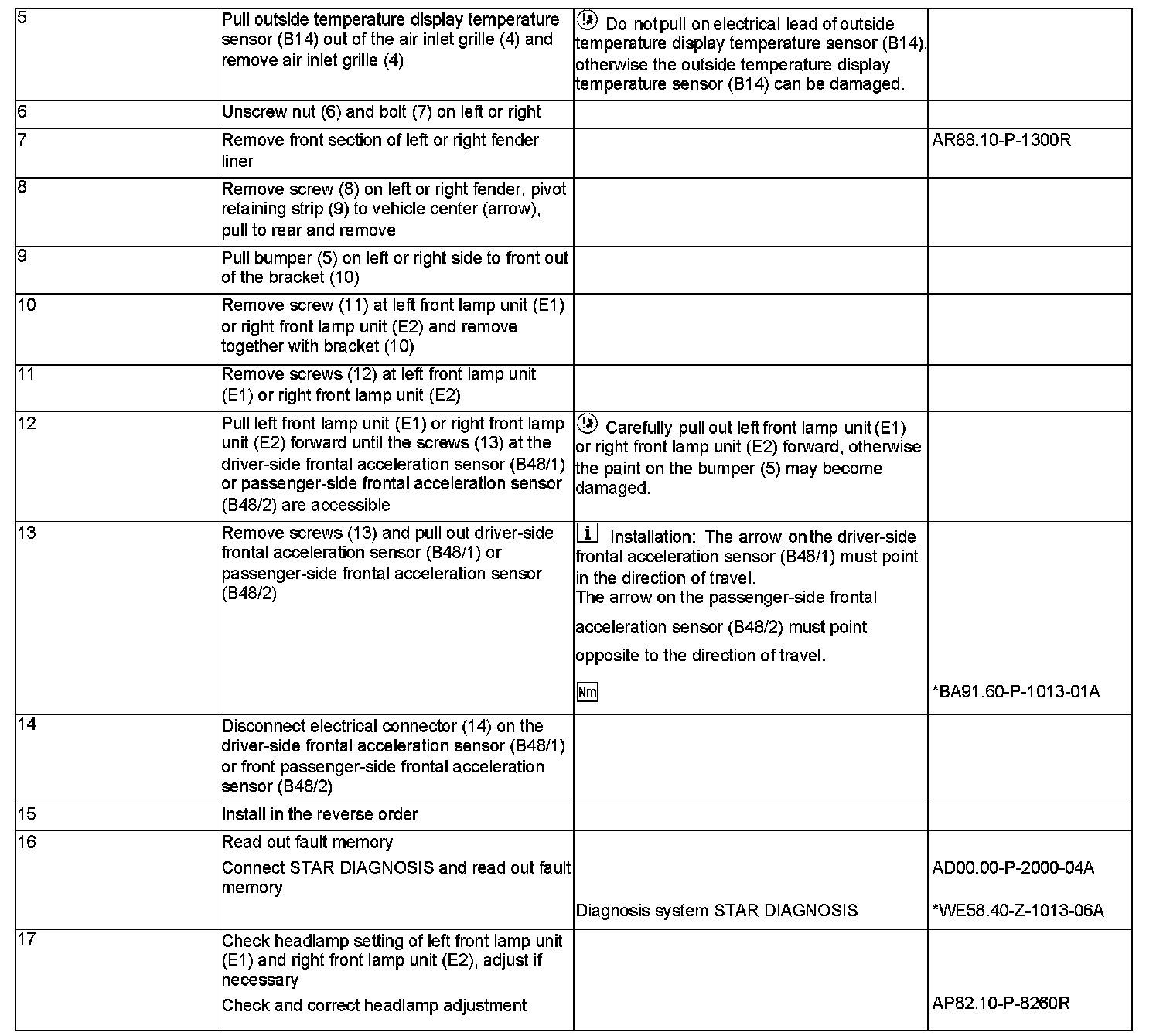

Part 2:

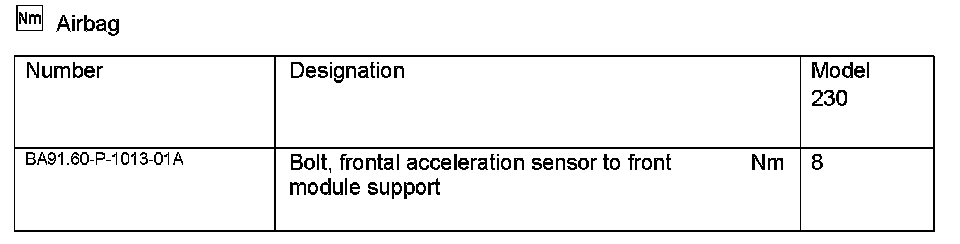

Airbag:
