Home >> Mercedes Benz >> 2007 >> SL 55 AMG (230.472) V8-5.5L SC (113.995) >> Repair and Diagnosis >> Restraints and Safety Systems >> Sensors and Switches - Restraints and Safety Systems >> Seat Belt Tension Sensor >> Service and Repair

Seat Belt Tension Sensor: Service and Repair

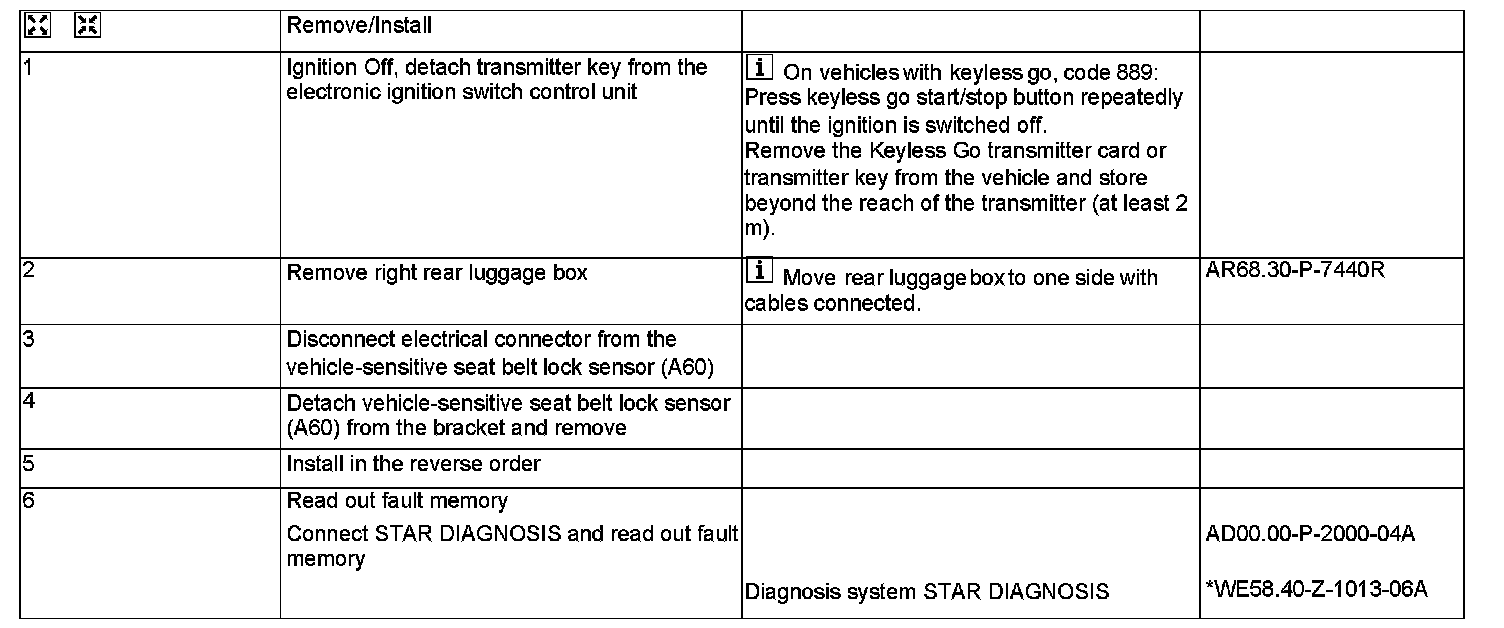

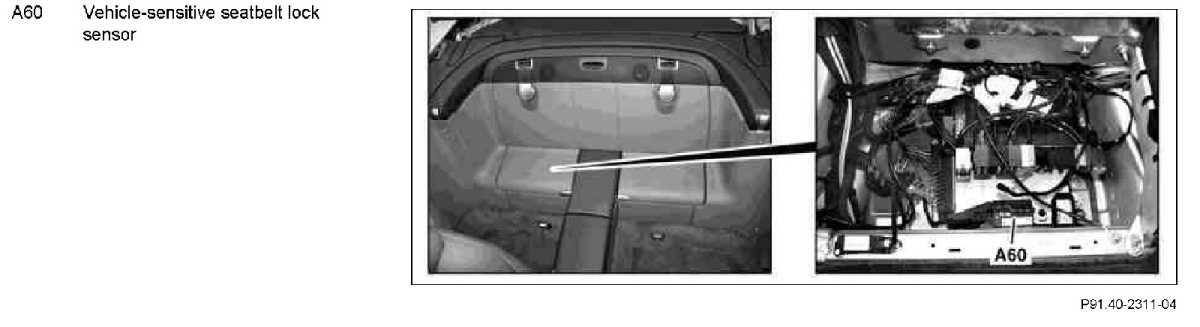

AR91.40-P-1355R Remove/Install Sensor For Belt Lock
- Except CODE (P99) "AMG Black Series" special model
