GF91.40-P-4000-02R Front Emergency Belt Tensioner - Design
GF91.40-P-4000-02R Front Emergency Belt Tensioner - Design
GF91.40-P-4000-02R Front Emergency Belt Tensioner - Design

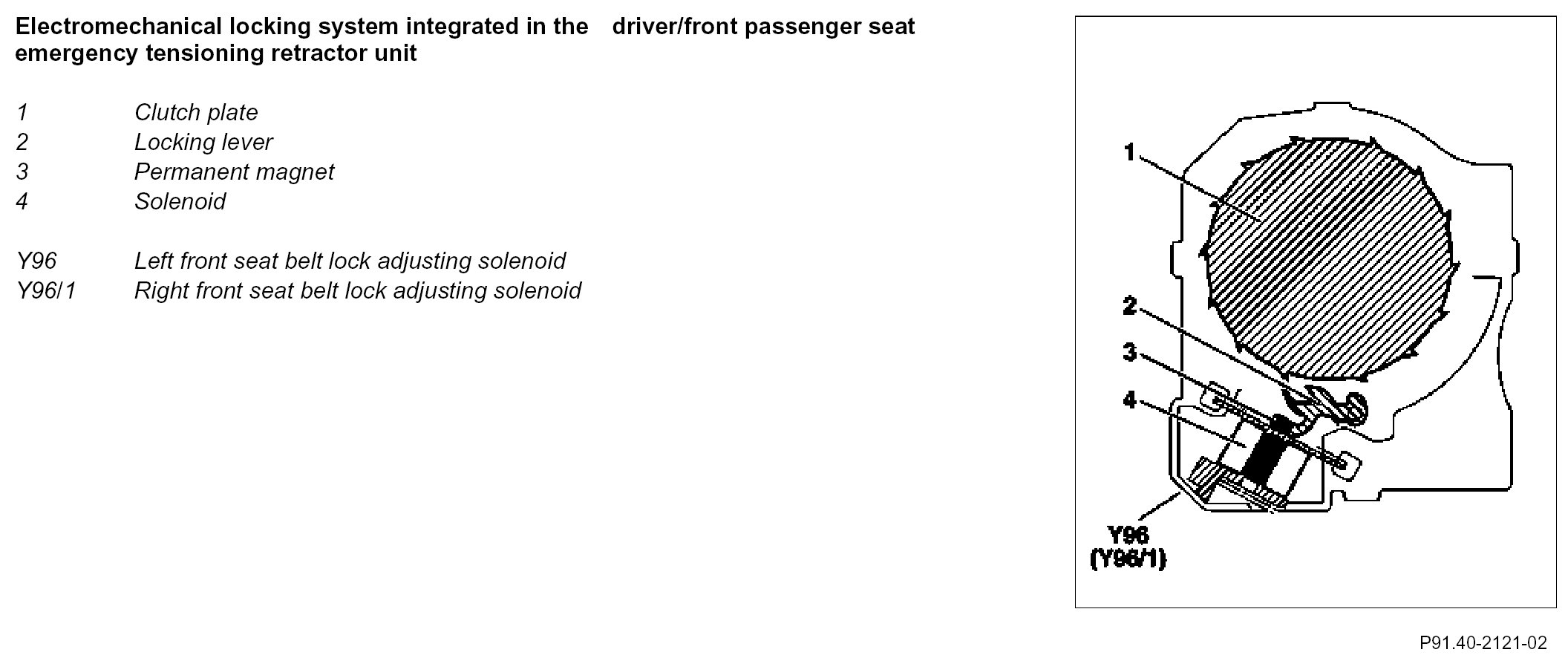

Component Identification:

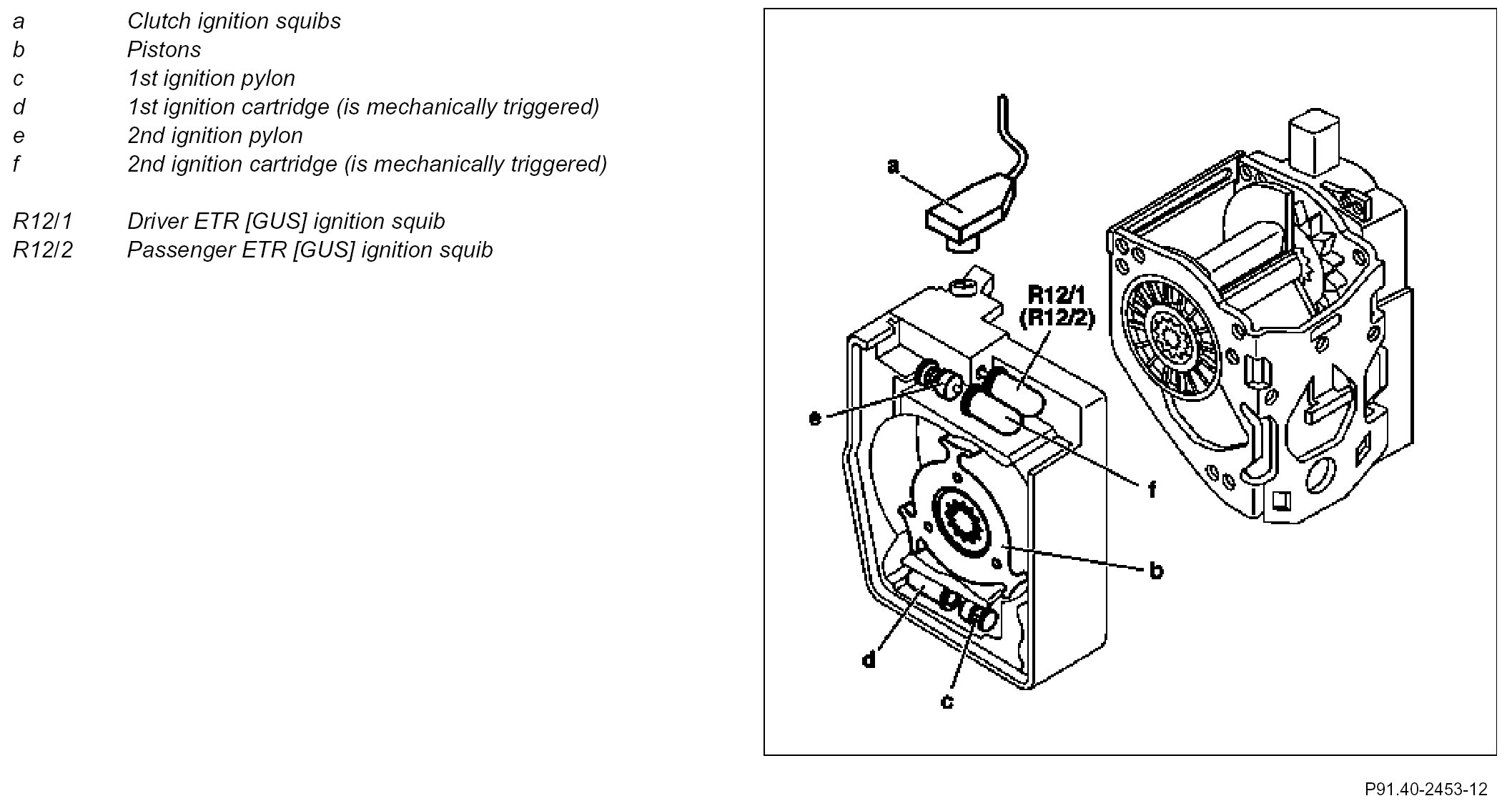

Component Identification:
