Home >> Mercedes Benz >> 2007 >> SL 55 AMG (230.472) V8-5.5L SC (113.995) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Steering and Suspension >> Relays and Modules - Suspension >> Suspension Control Module >> Service and Repair

Suspension Control Module: Service and Repair

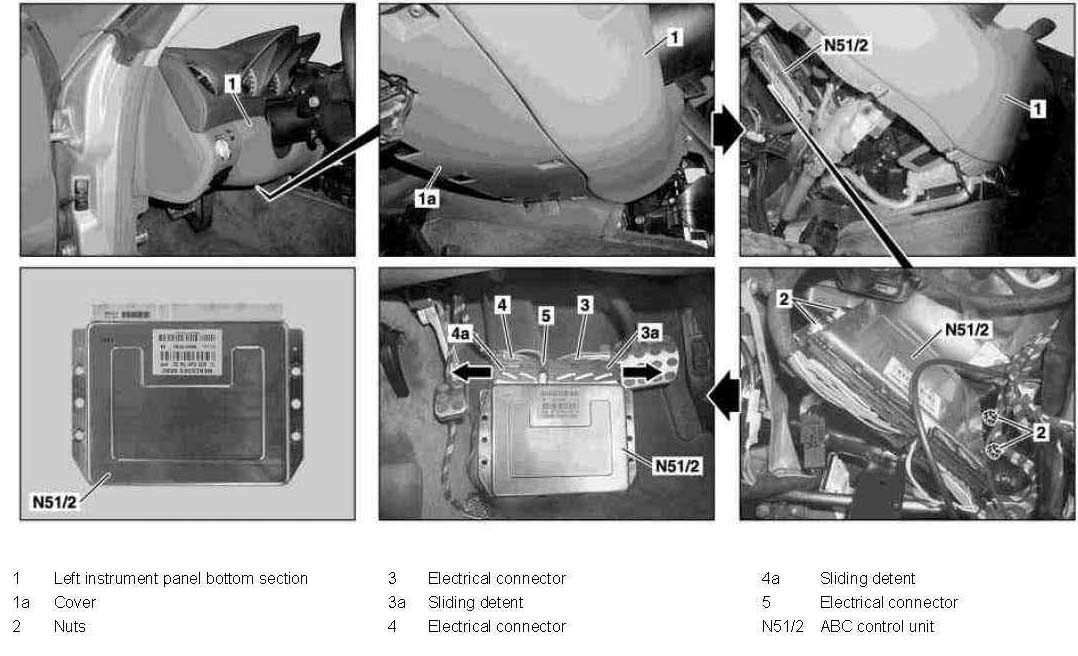

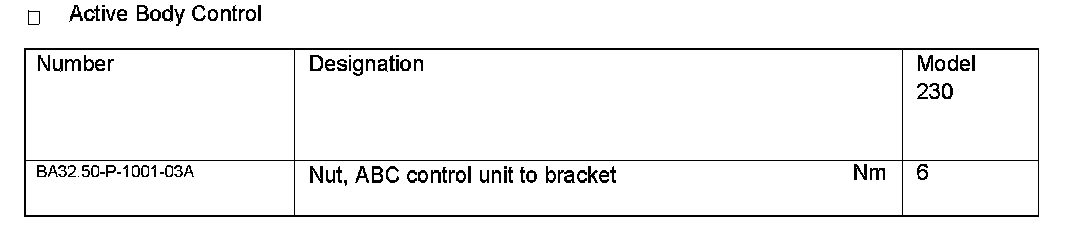

AR32.50-P-0023R ABC electronic control unit, removal and installation

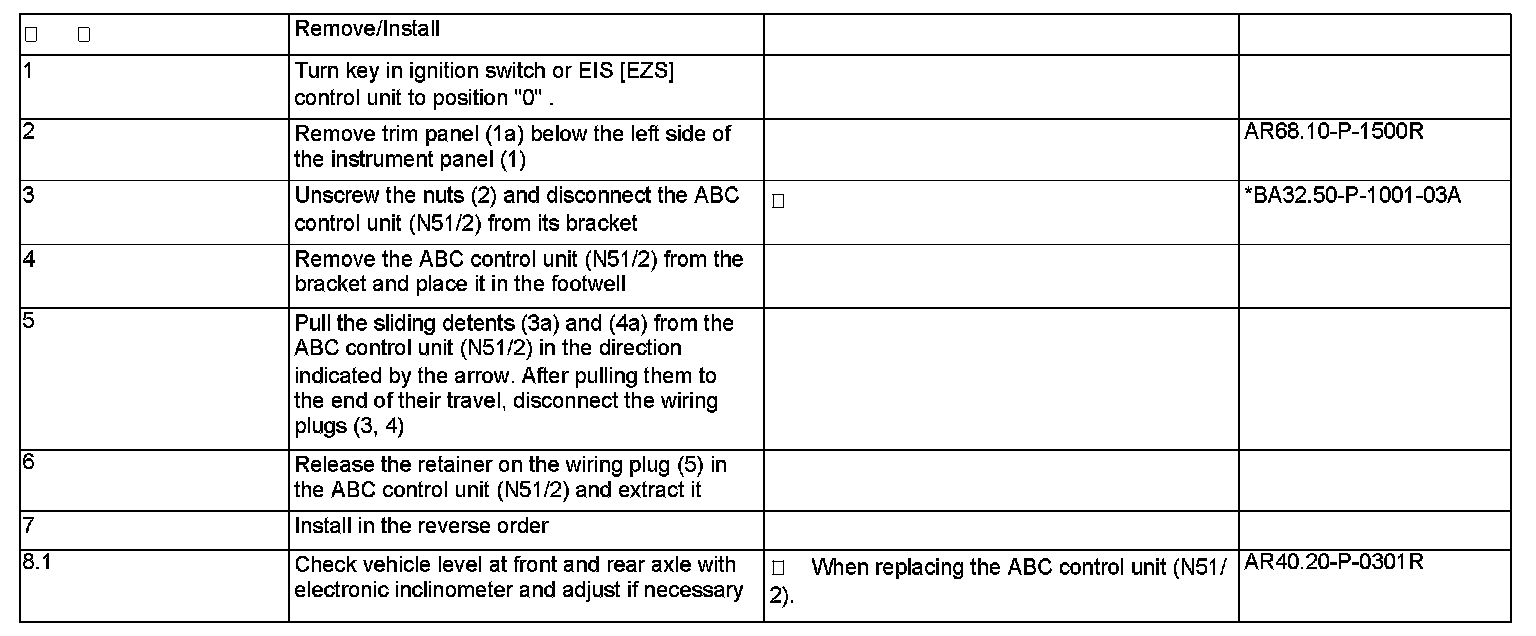

Steps 1-8:
