Entertainment System Control Module: Service and Repair

AR82.60-P-1030R Remove/Install Media Interface Control Unit
- with CODE (518) Media interface

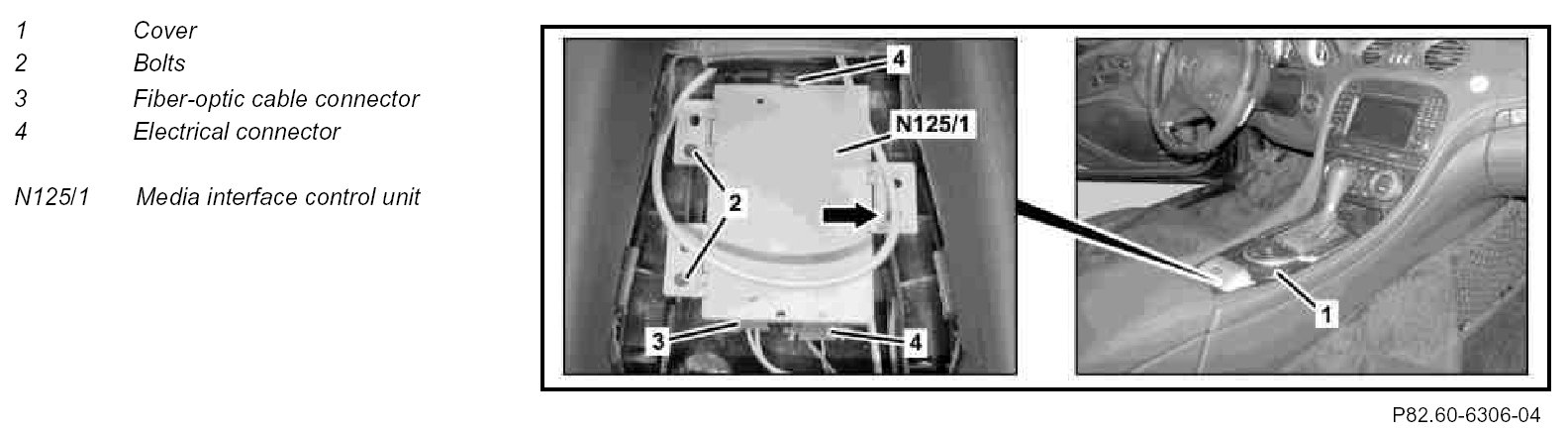

Component Identification:

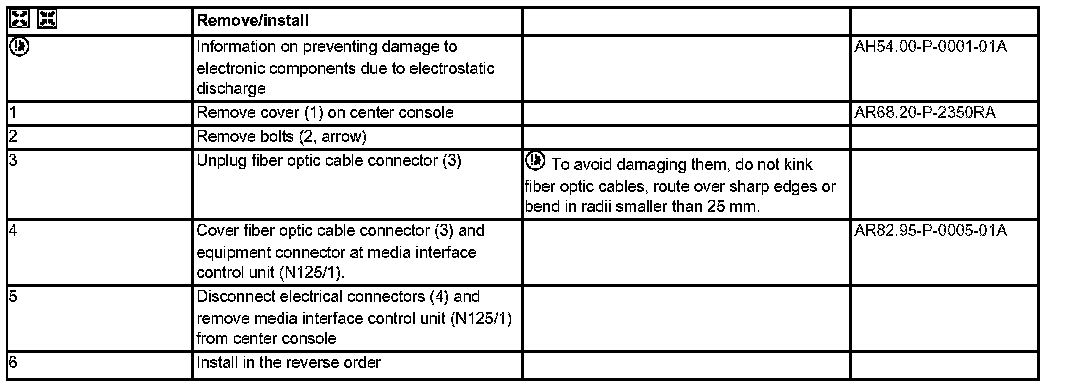

Steps 1 - 6:
