GF07.61-P-3016AM ME-SFI Part Load/Full Load Operation Function

GF07.61-P-3016AM ME-SFI Part Load/Full Load Operation Function
ENGINE 113.990 in MODEL 211, 219
ENGINE 113.991 in MODEL 215, 220
ENGINE 113.992 in MODEL 230 up to Model Year 2008
ENGINE 113.993 in MODEL 463 up to 31.5.12
ENGINE 113.995 in MODEL 230 up to Model Year 2008

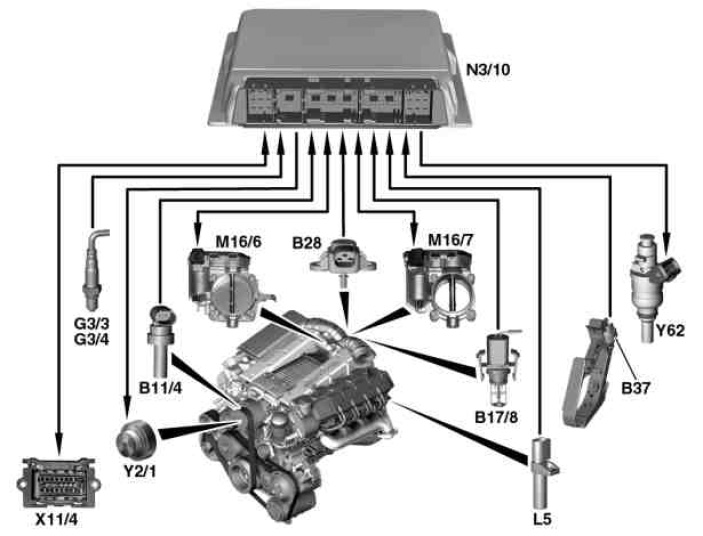

B11/4 Coolant temperature sensor
B17/8 Charge air temperature sensor
B28 Pressure sensor (charge air)
B37 Accelerator pedal sensor
G3/3 Left O2 sensor, before TWC
G3/4 Right oxygen sensor upstream of TWC
L5 Crankshaft position sensor
M16/6 Throttle valve actuator
M16/7 Recirculated air flap actuator
N3/10 ME-SFI [ME] control unit
X11/4 Data link connector
Y2/1 Supercharger magnetic clutch
Y62 Fuel injection valves

Partial load operation:
When the engine is at operating temperature, optimal exhaust emission values and low-cost fuel consumption are assured with the lambda control function.

Full load operation
The maximum engine torque is achieved when the throttle valve is fully open, the recirculated air flap is closed and switched on compressor. The injection time is extended appropriately by the ME-SFI [ME] control unit to do this.

About 10 to 90% slewing range is defined as partial load at the accelerator pedal sensor and more than about 90% slewing range as full load.

The relevant quantity of fuel is metered to the engine in line with the performance map.
The amount of fuel injected (injection time) is dependent on:
^ Coolant temperature
^ Charge air temperature
^ Charge air pressure
^ Engine speed
^ Engine load
^ Closed-loop mixture control
^ Correction programming with STAR DIAGNOSIS
