AR01.40-P-8000RKV Remove/Install Timing Case Cover

AR01.40-P-8000RKV Remove/Install Timing Case Cover

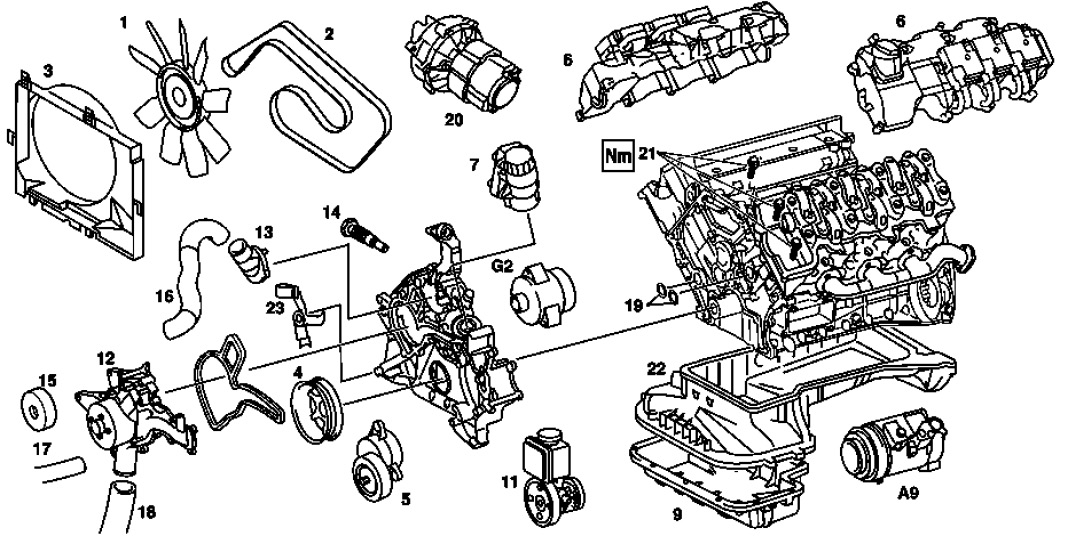

ENGINES 113.995 in MODEL 230.472





2 Poly-V belt
3 Fan shroud
4 Vibration damper
5 Poly-V belt tensioning device
6 Cylinder head covers
7 Oil filter housing with oil-water heat exchanger
9 Oil pan bottom section
11 Power steering pump
12 Coolant pump
13 Thermostat housing
14 Chain tensioner
15 Pulley
16 Coolant line
17 Coolant line
18 Coolant line
19 Timing case sealing rings
21 Bolts
22 Oil pan
23 ATF line bracket
A9 Refrigerant compressor
G2 ALT
