Removal and Replacement



AR05.10-P-7601RVK Replace timing chain

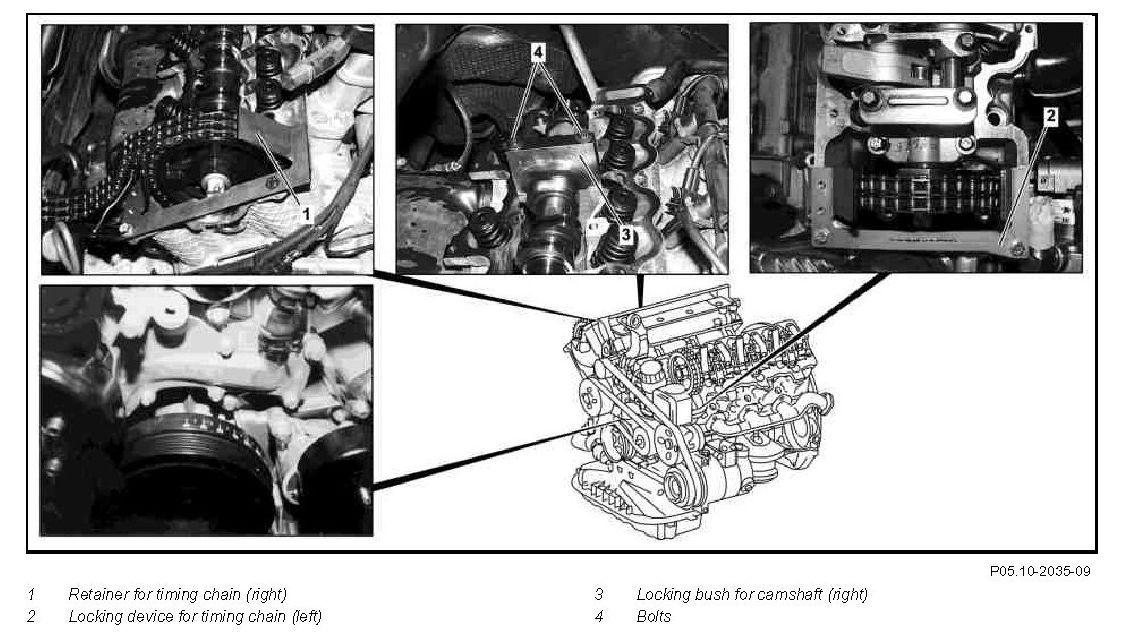

Component Identification:

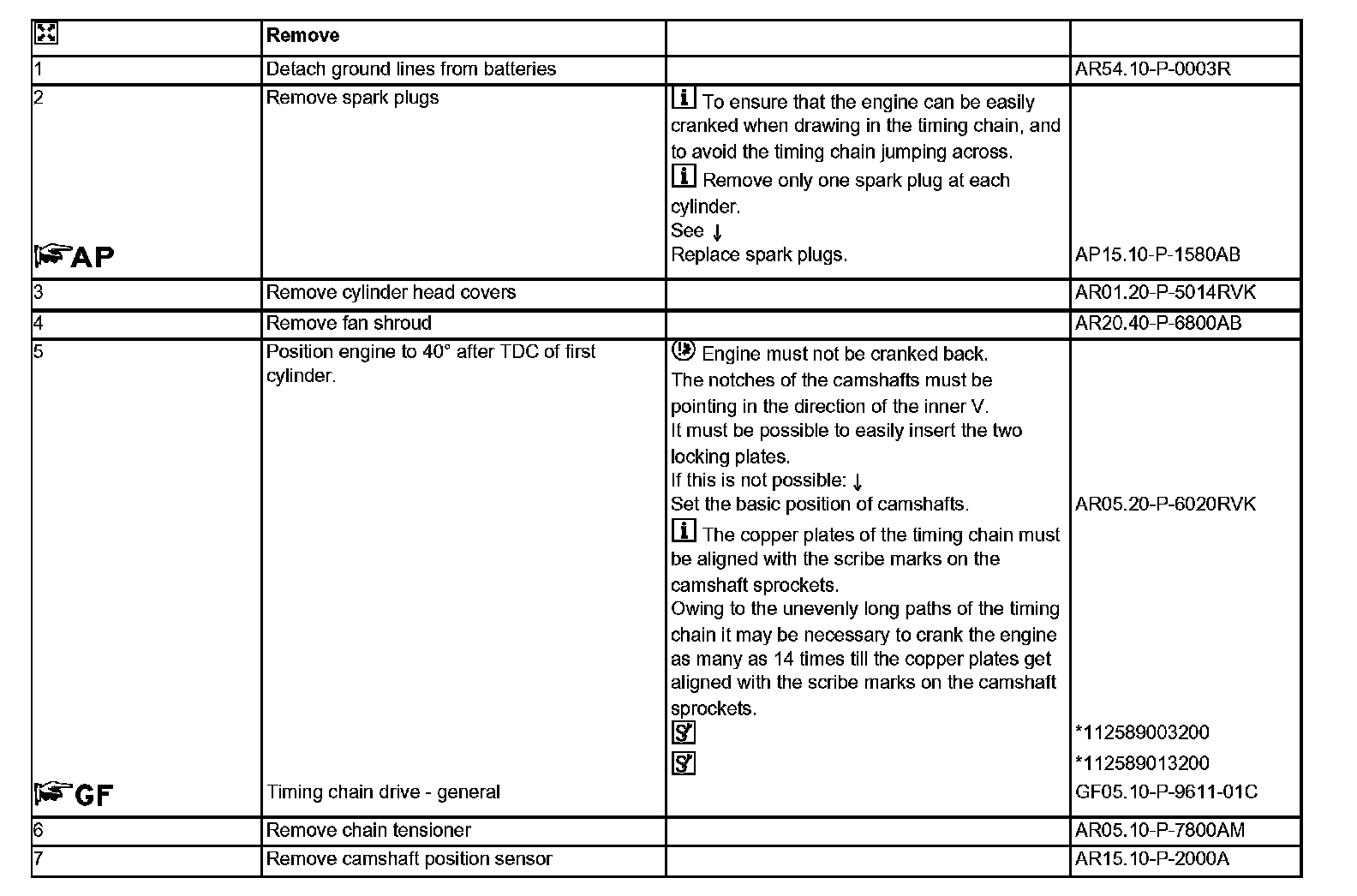

Steps 1-7:

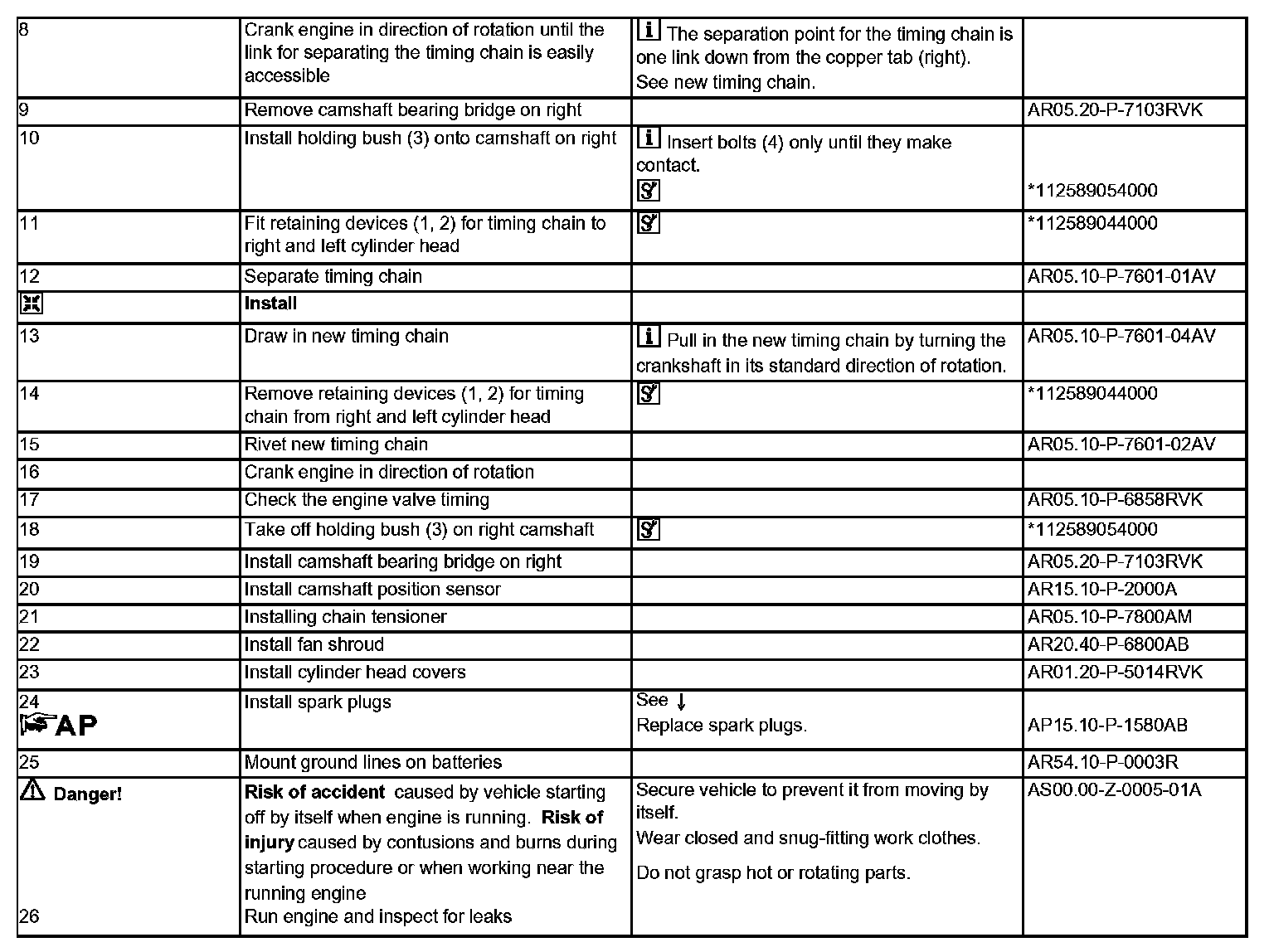

Steps 8-26:

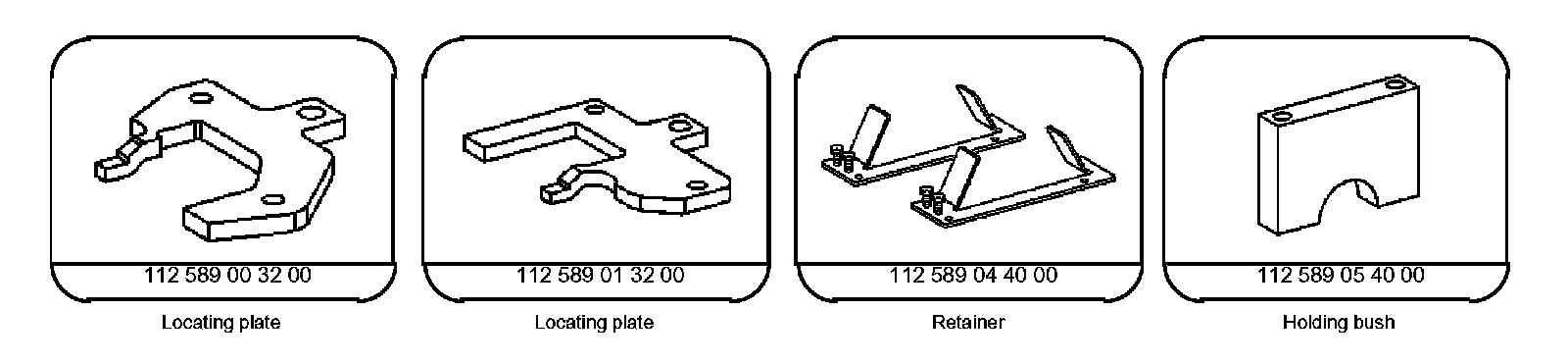

Special Tools:
