AR01.00-P-1300RVK Inspecting Cylinders For Leaks



AR01.00-P-1300RVK Inspecting cylinders for leaks

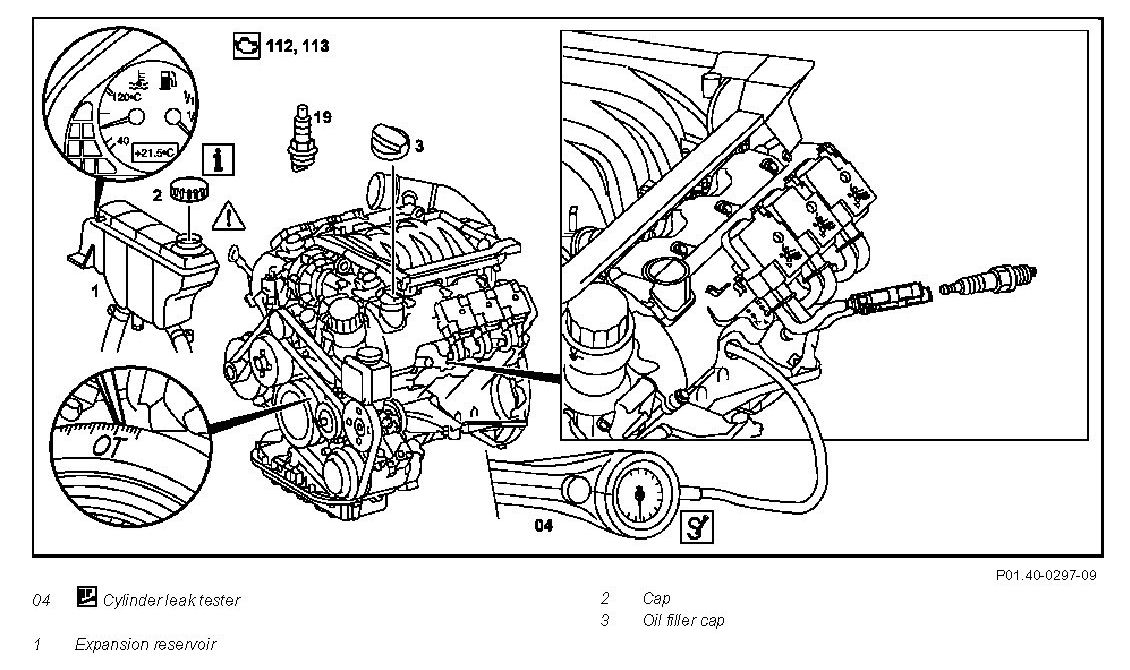

Component Identification:

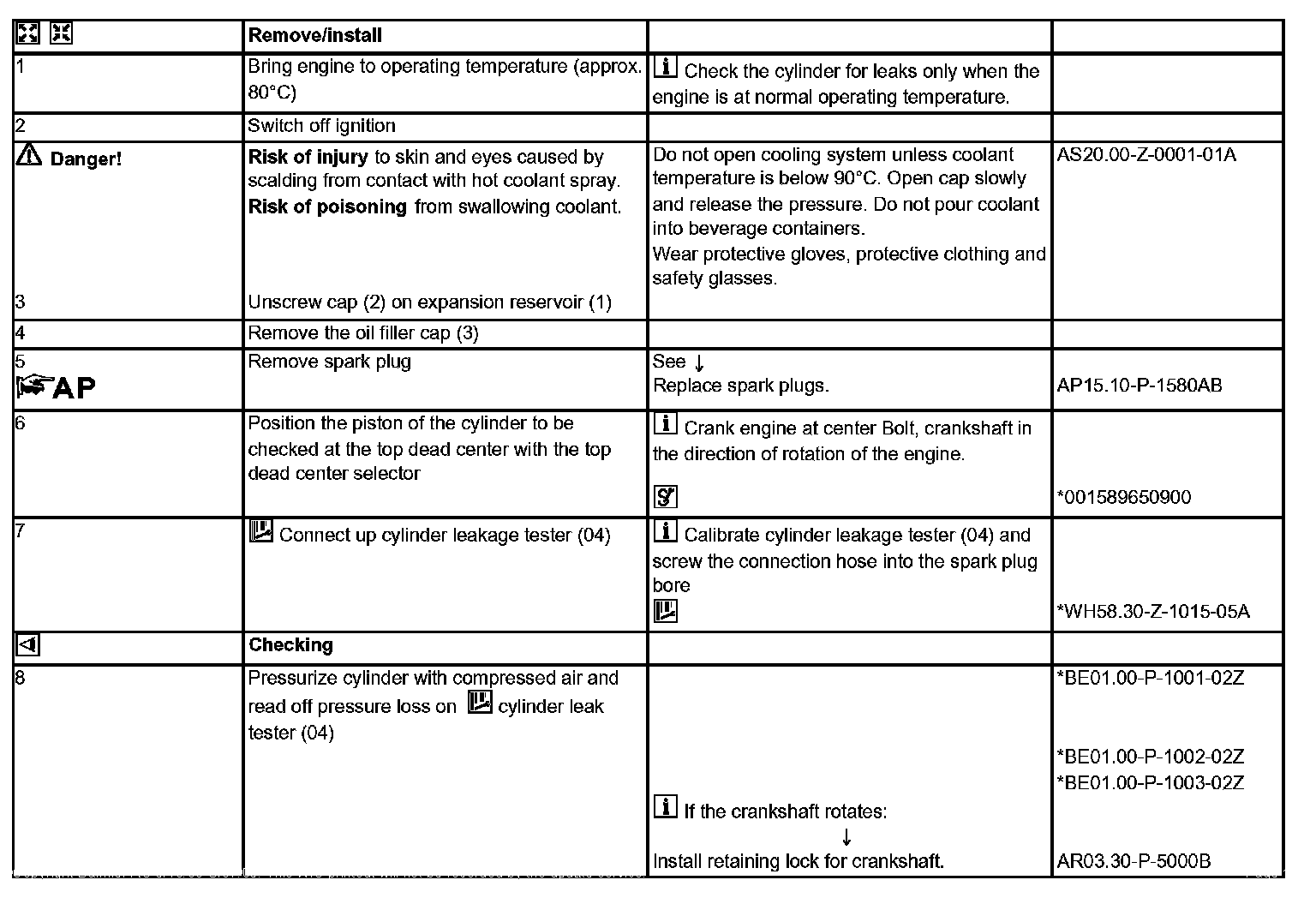

Remove/install Steps 1-8:




Remove/install Steps 9-10:

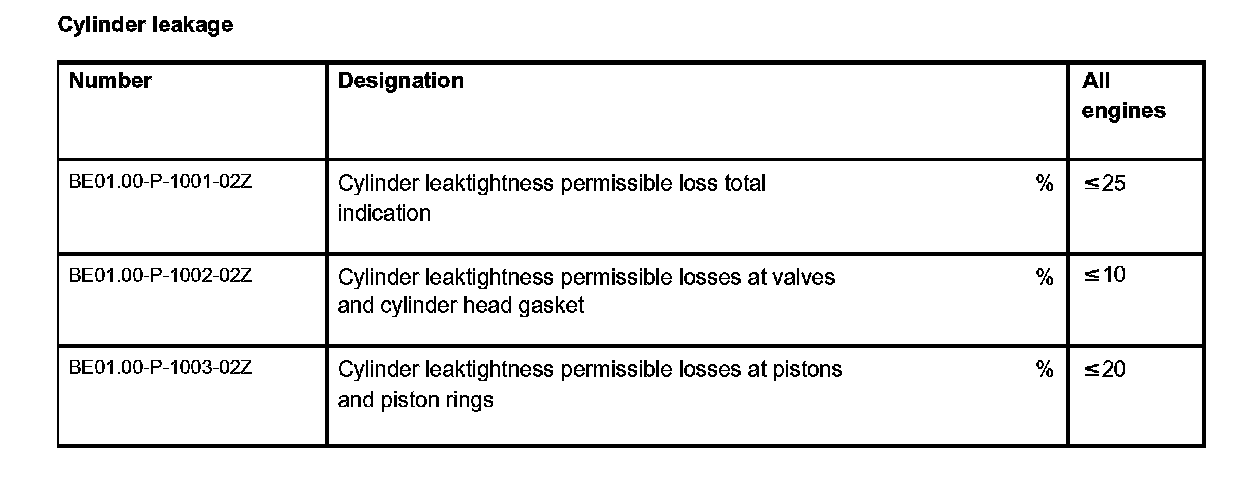

Cylinder leakage:




Special Tools:




Commercially available tools:
