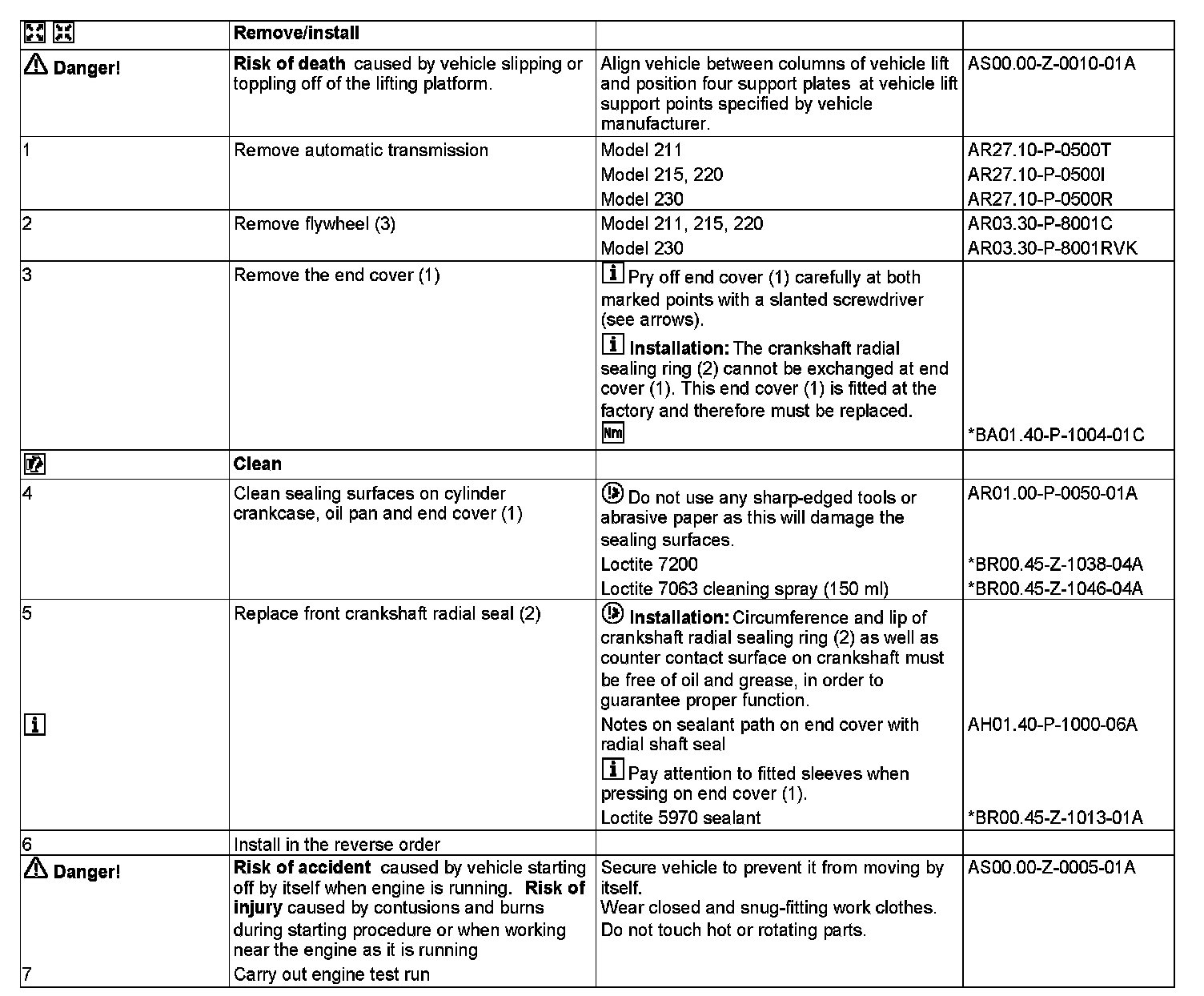

AR03.20-P-3063RVK Replace Rear Crankshaft Radial Sealing Ring




AR03.20-P-3063RVK Replace Rear Crankshaft Radial Sealing Ring
ENGINES 113.990 in MODEL 211.076 /276
ENGINES 113.991 in MODEL 215.374, 220.074 /174
ENGINES 113.995 in MODEL 230.472

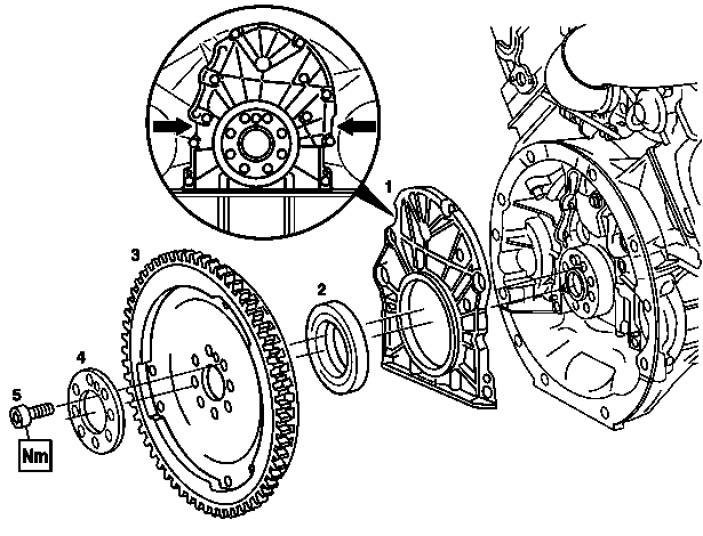

1 End cover
2 Crankshaft radial seal
3 Flywheel
4 Washer
5 Bolt, flywheel
