Oil Spray Jet: Service and Repair

AR18.00-P-4000RVK Remove, install oil spray nozzles (pistons)

Component Identification:

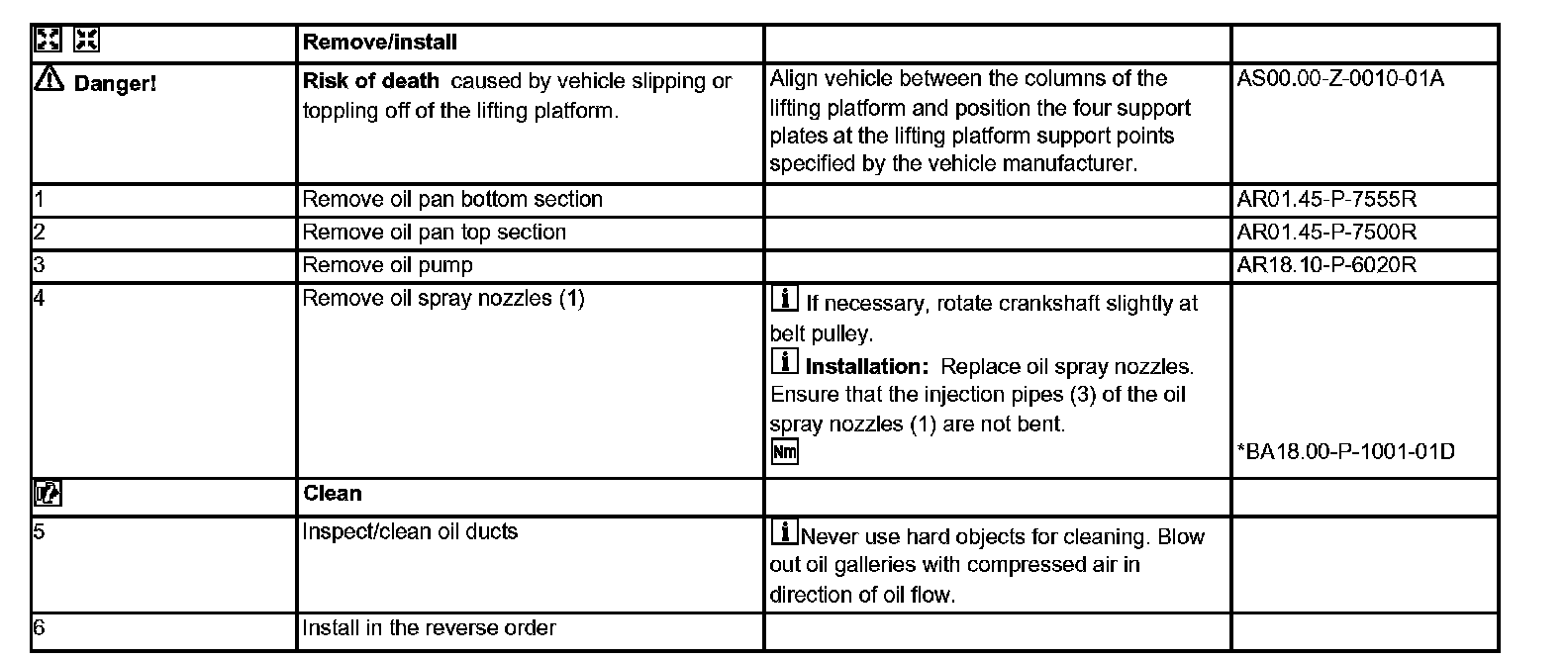

Remove/install Steps 1-6:

Engine lubrication, engine oil cooling, general:
