AR05.30-P-3511RVK Remove, install valves
Component Identification:

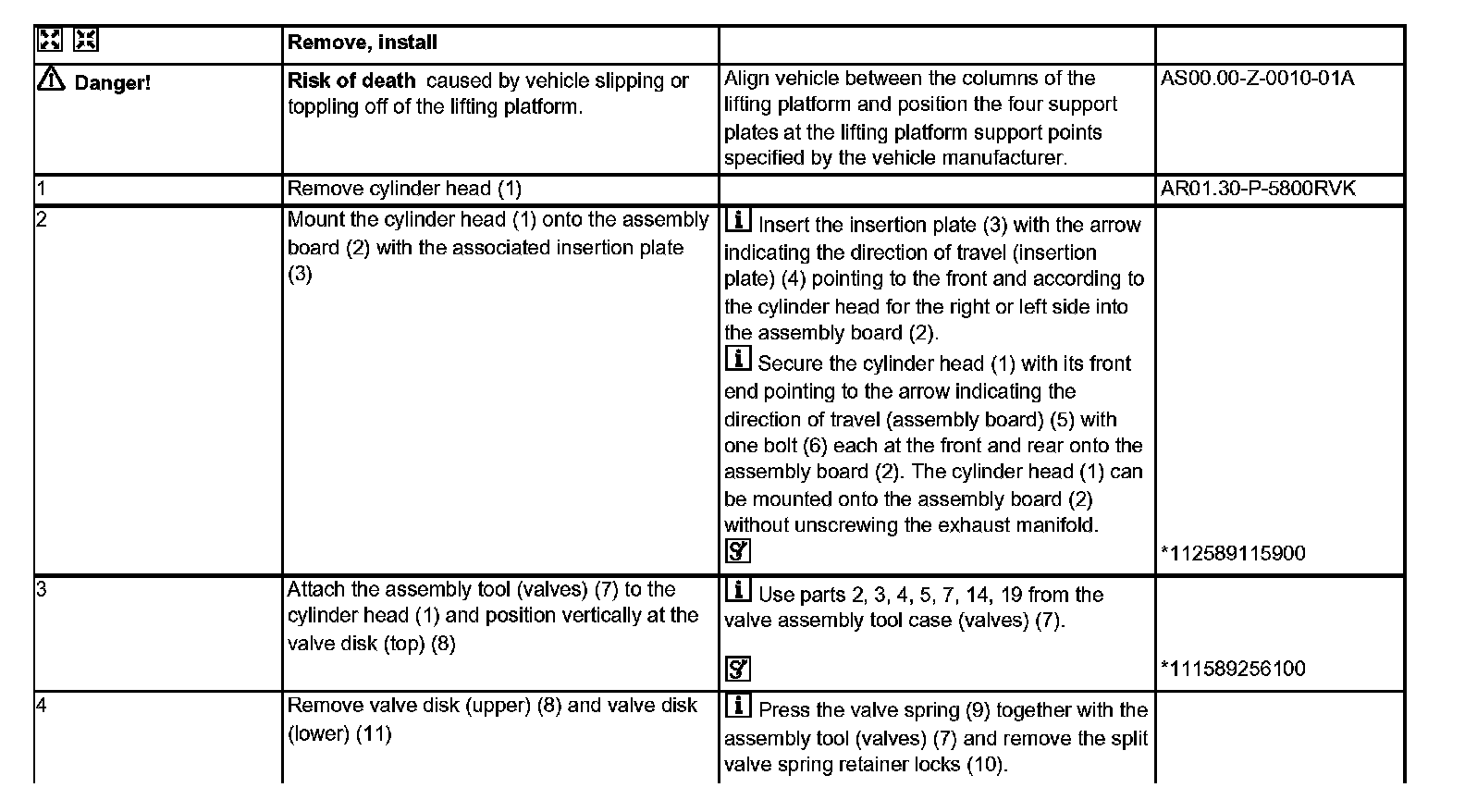

Remove/install Steps 1-4:

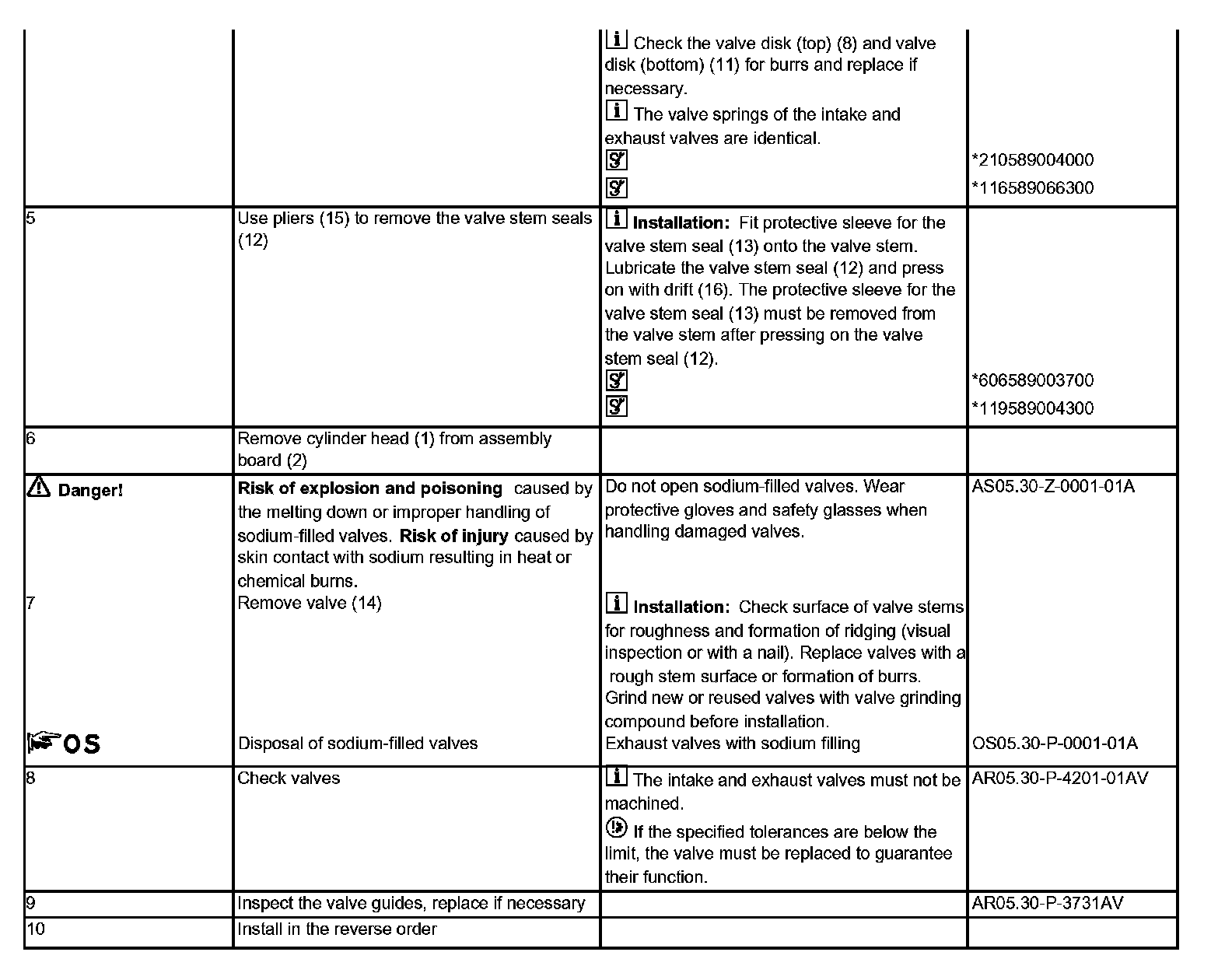

Remove/install Steps 4 (Continued)-10:

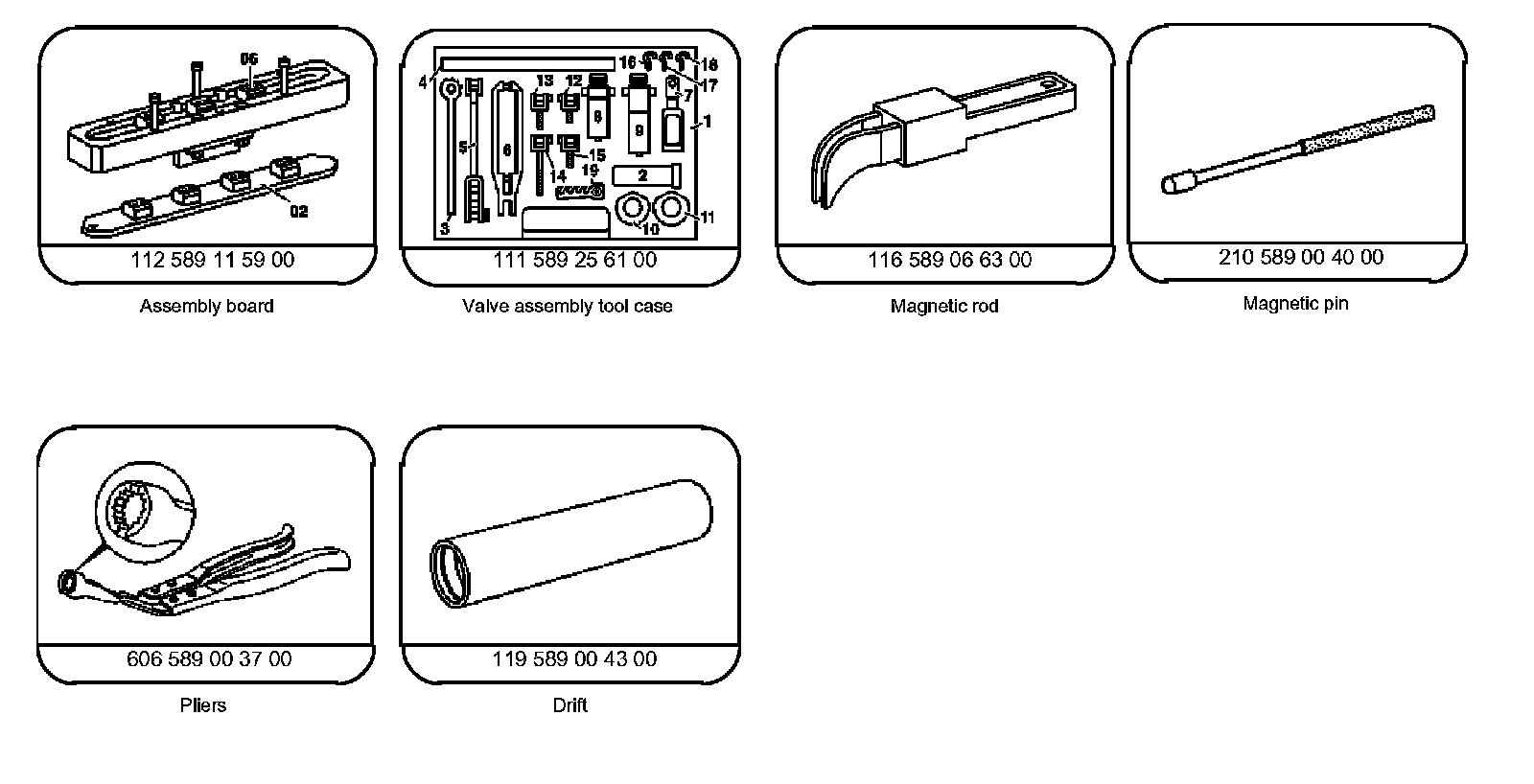

Special Tools:
