AR03.10-P-7021RVK Piston Removal and Installation



AR03.10-P-7021RVK Piston removal and installation

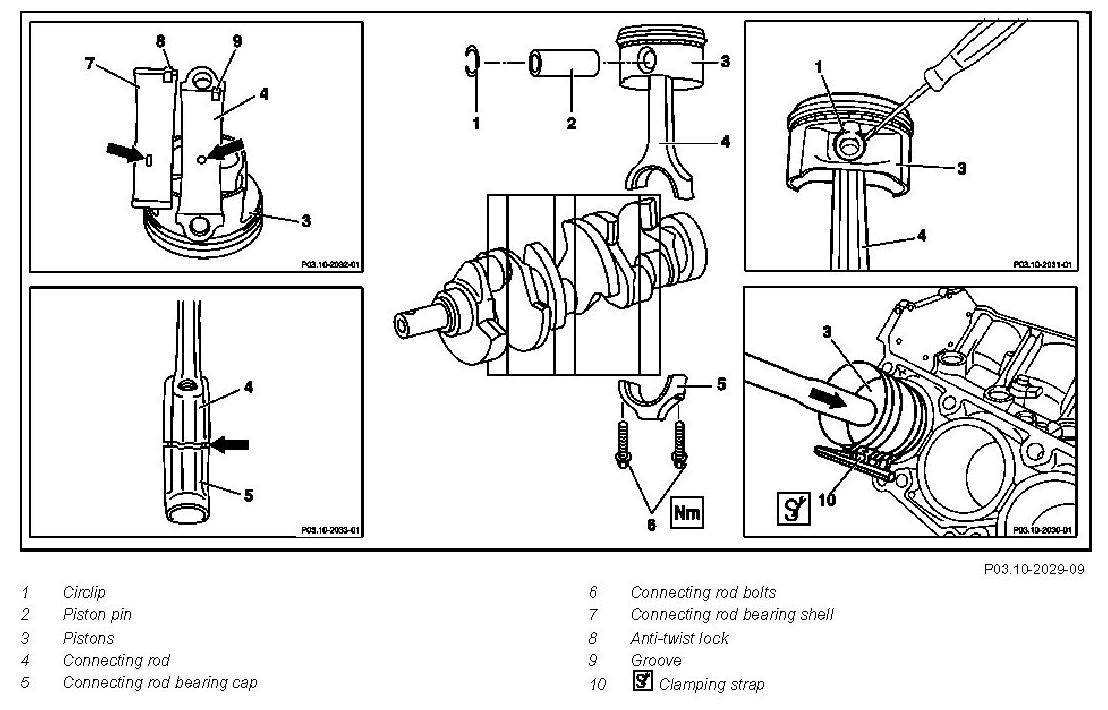

Component Identification:

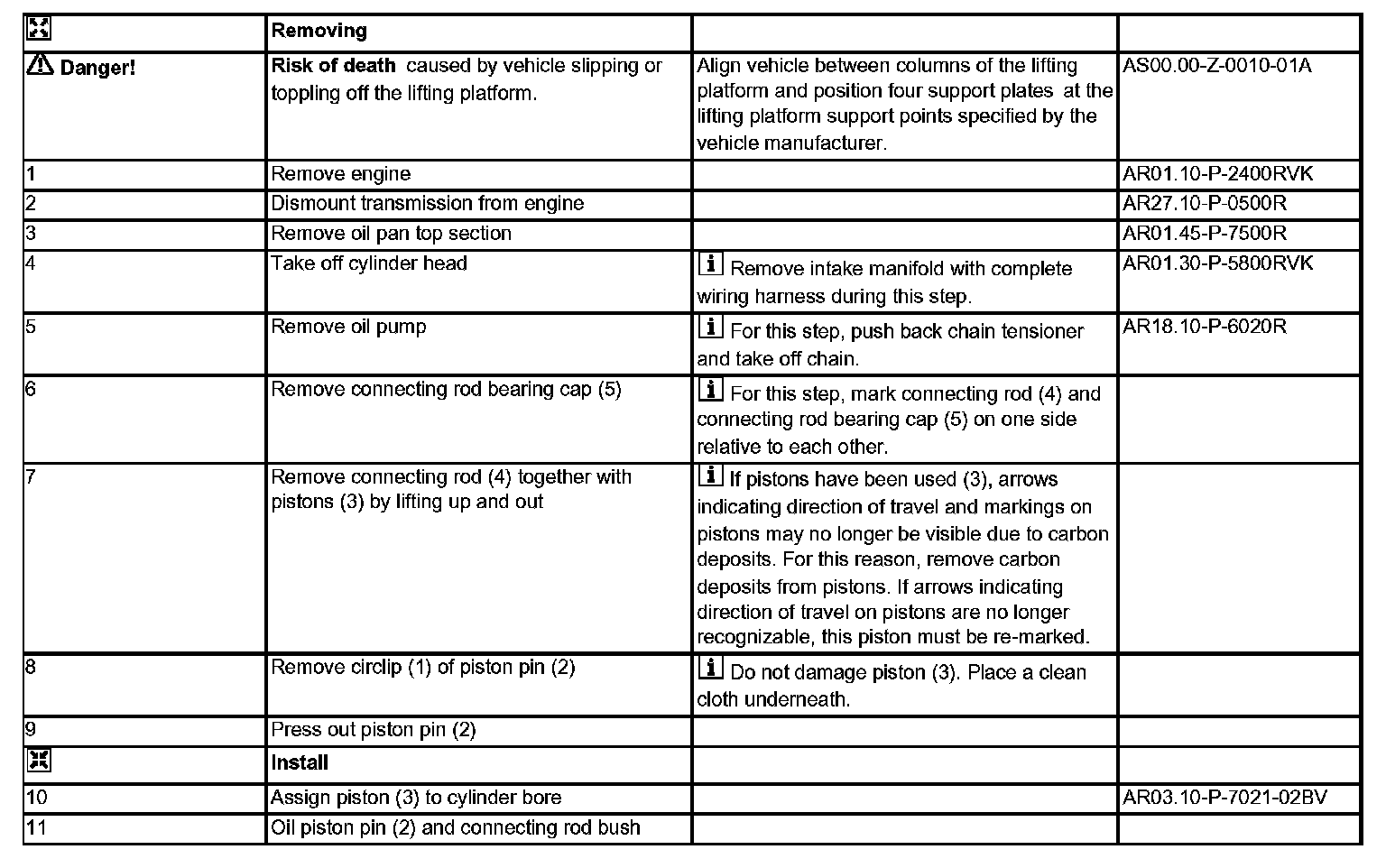

Steps 1-11:

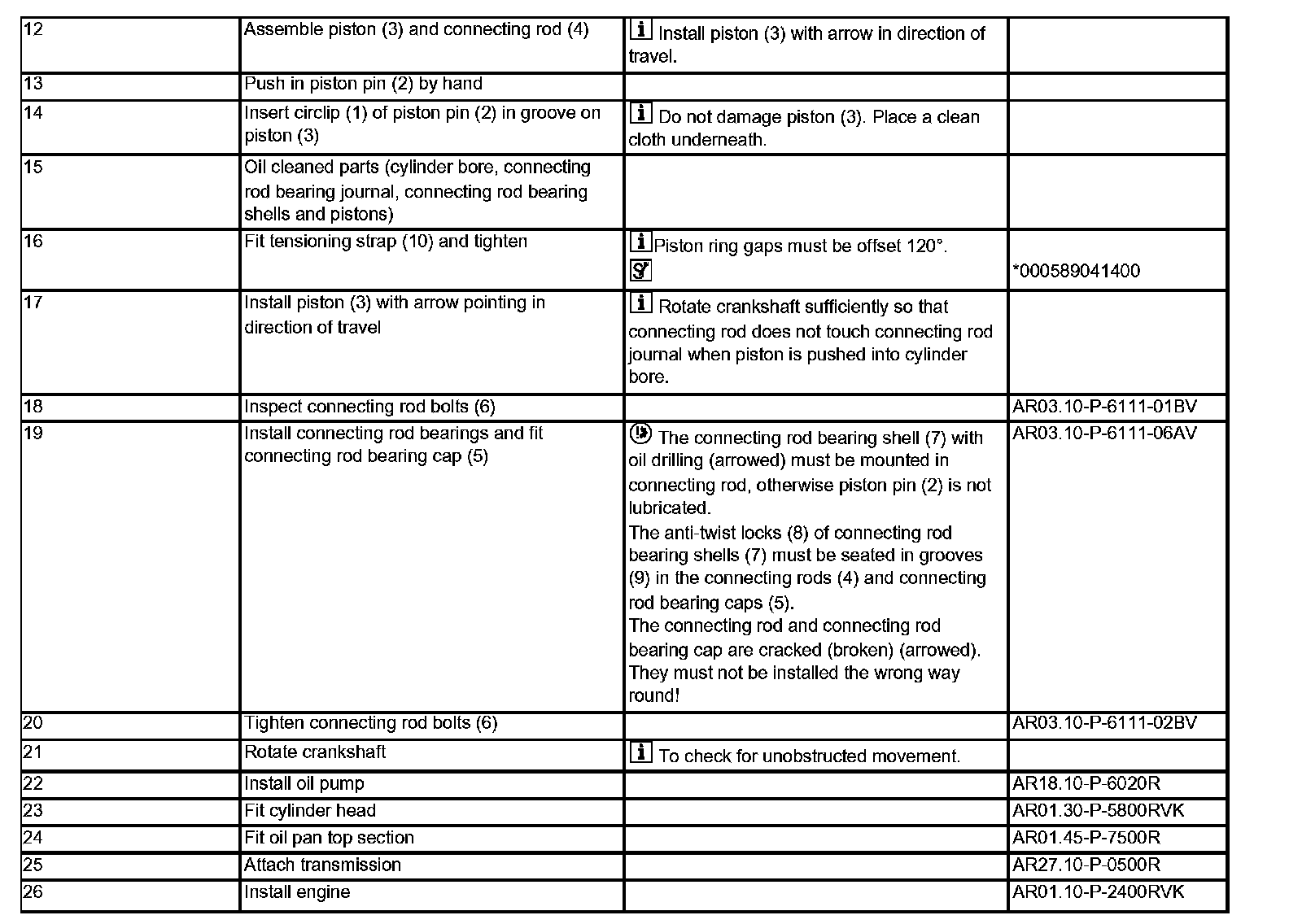

Steps 12-26:

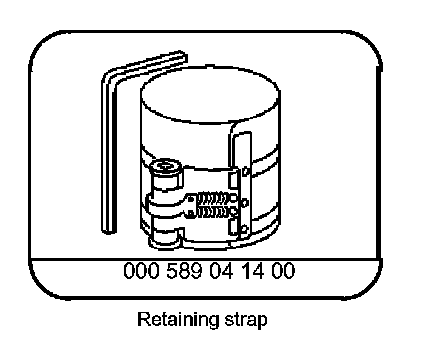

Special Tools:
