AR03.20-P-4351RVK Remove/Install Crankshaft
AR03.20-P-4351RVK Remove/Install Crankshaft
AR03.20-P-4351RVK Remove/install
crankshaft

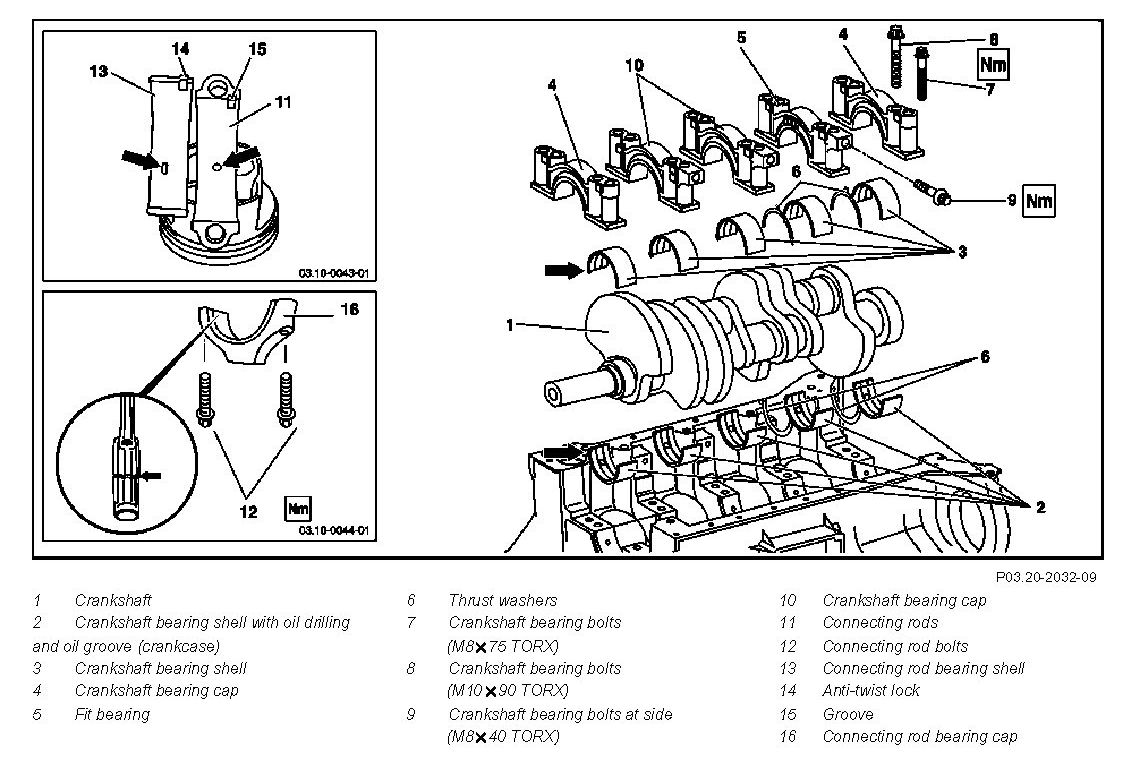

Component Identification:

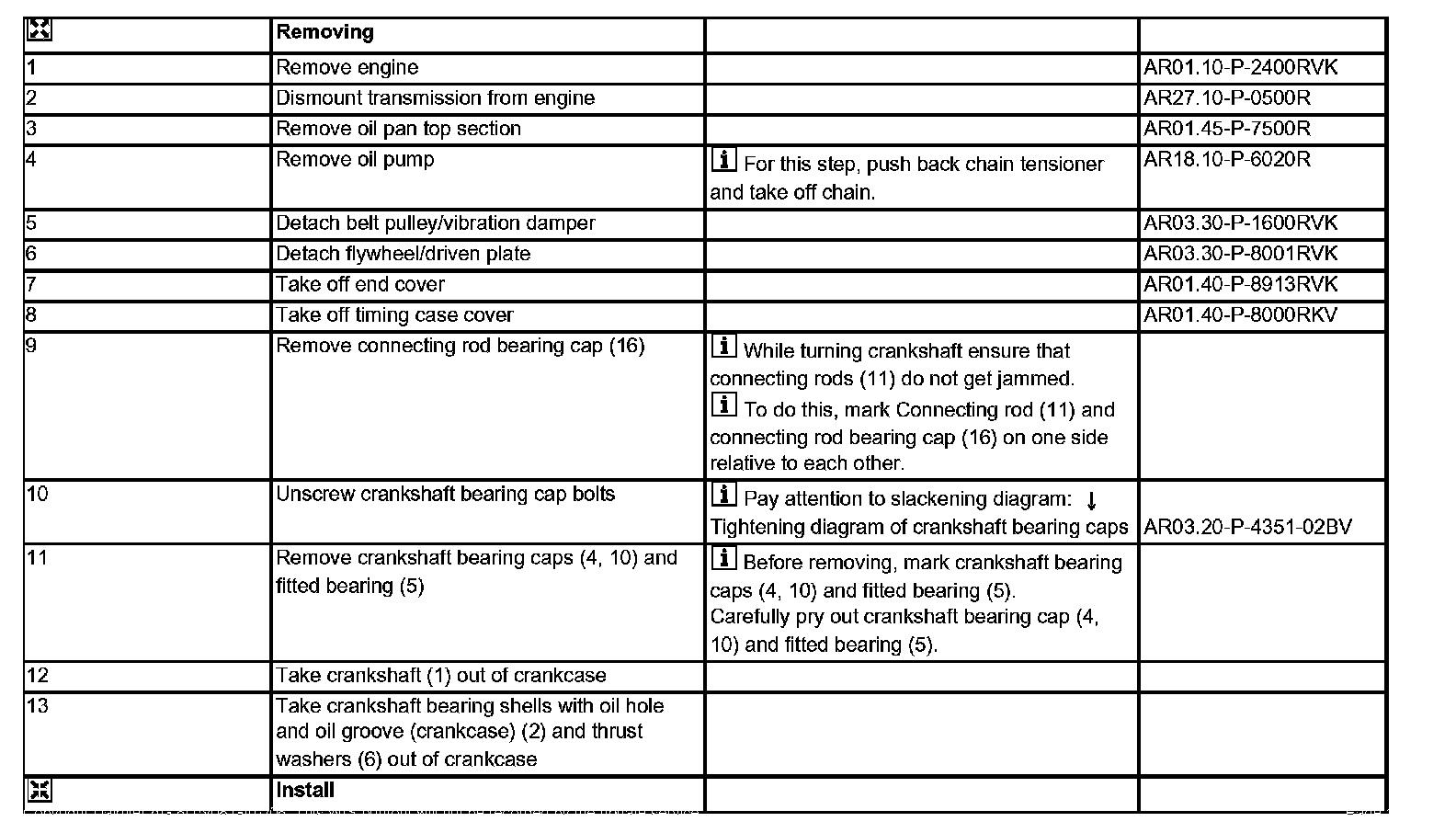

Steps 1-13:

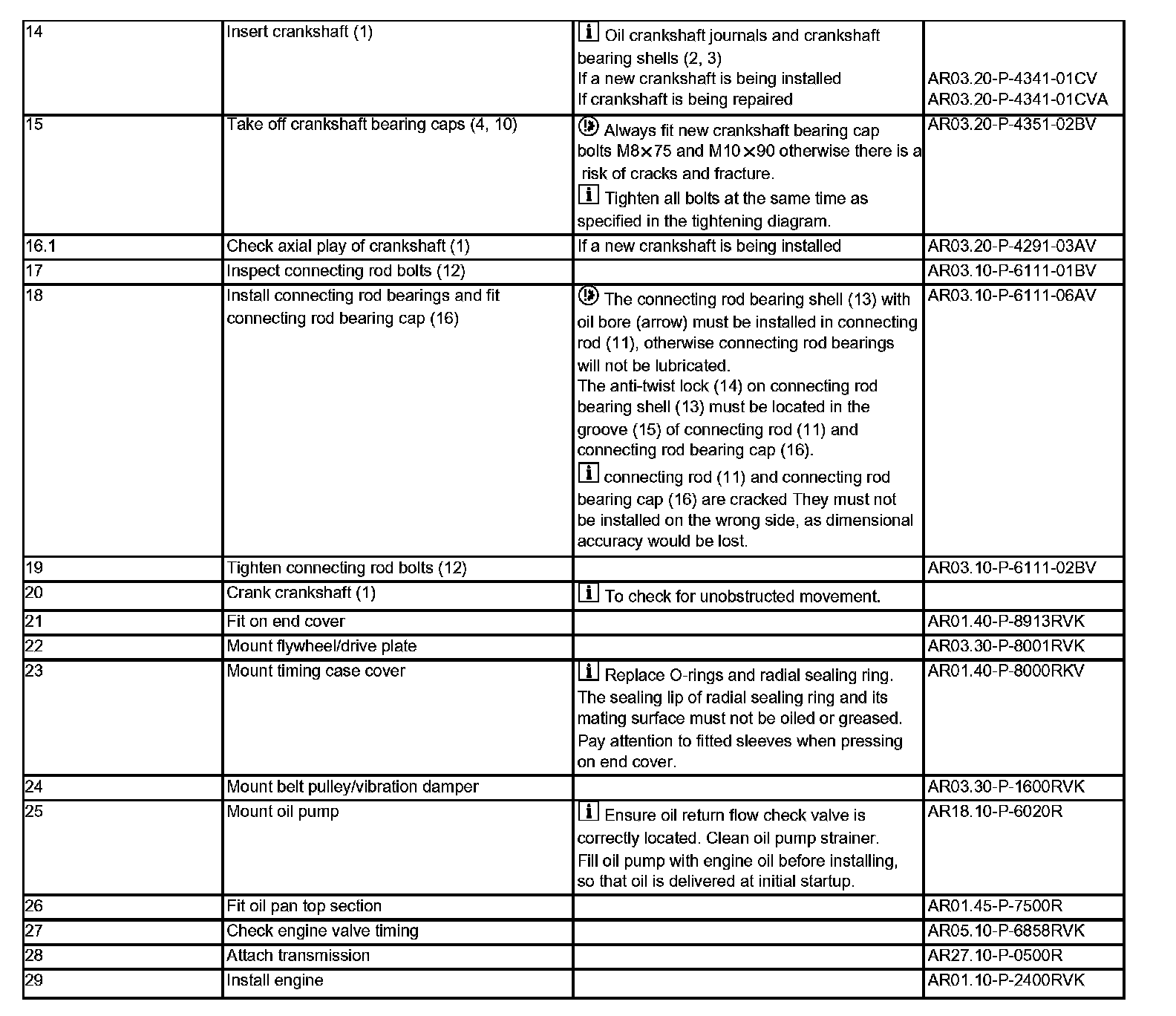

Steps 14-29:
