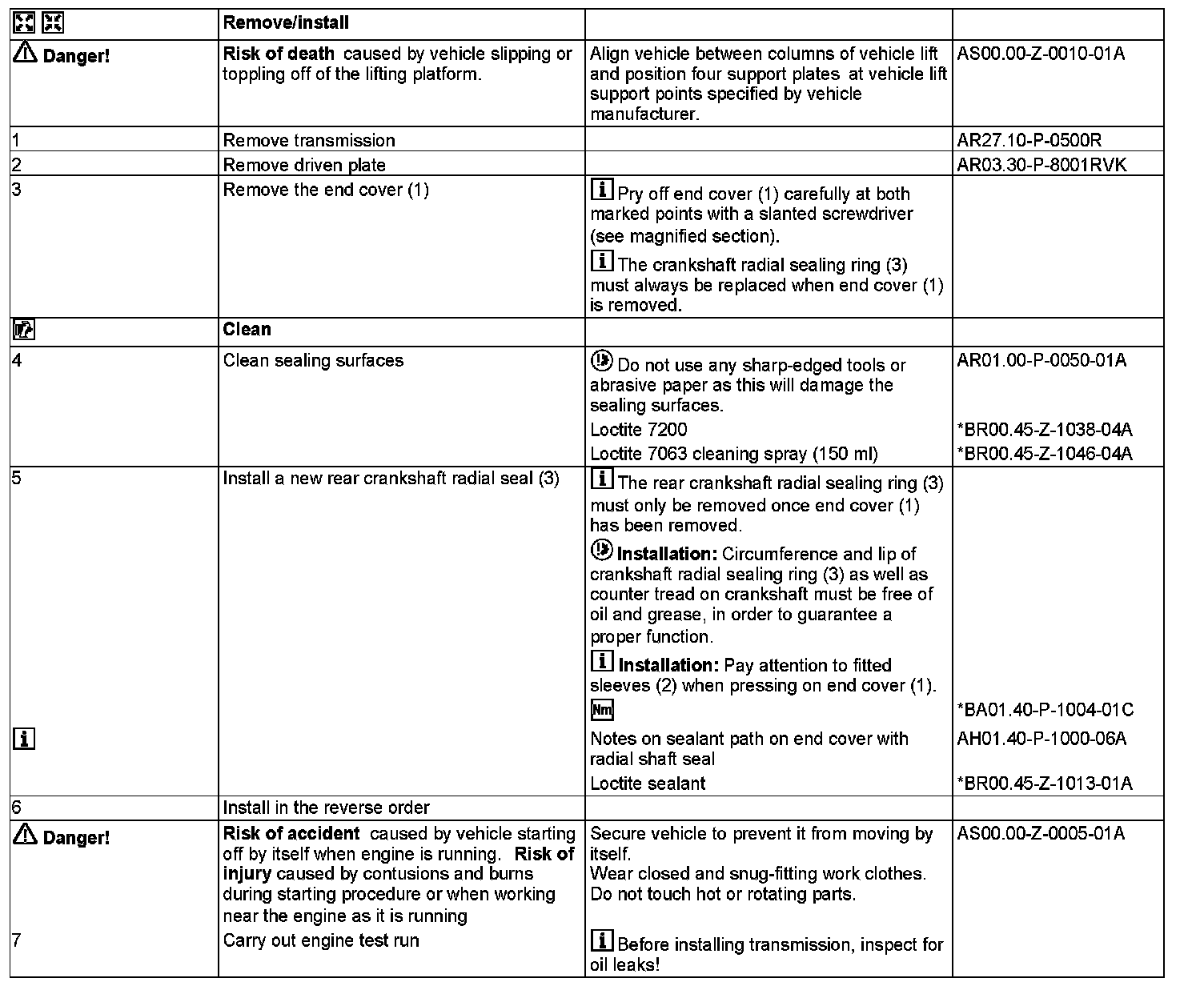

AR01.40-P-8913RVK Remove/Install End Cover




AR01.40-P-8913RVK Remove/Install End Cover
ENGINES 113.995 in MODEL 230.472

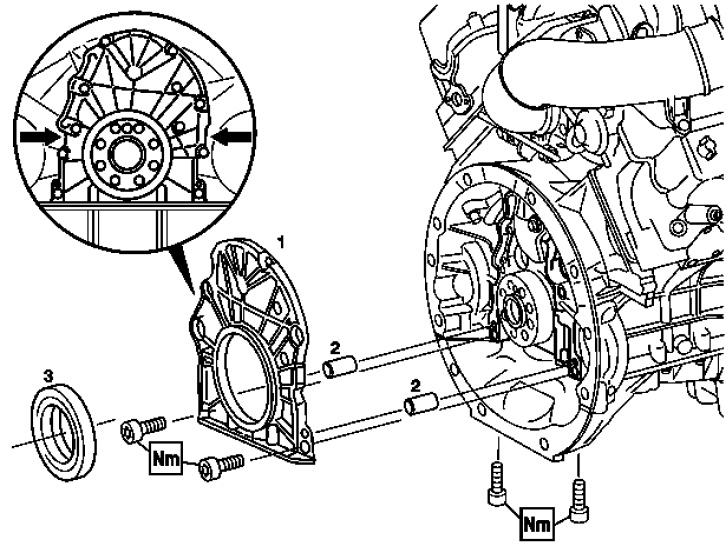

1 End cover
2 Fitting sleeves
3 Crankshaft radial sealing ring
