Thermostat: Testing and Inspection
AR20.10-P-2455RVK Testing coolant thermostat

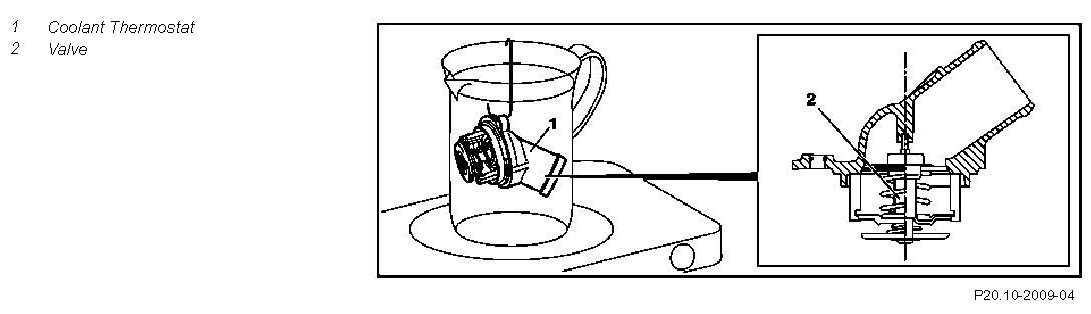

Component Identification:

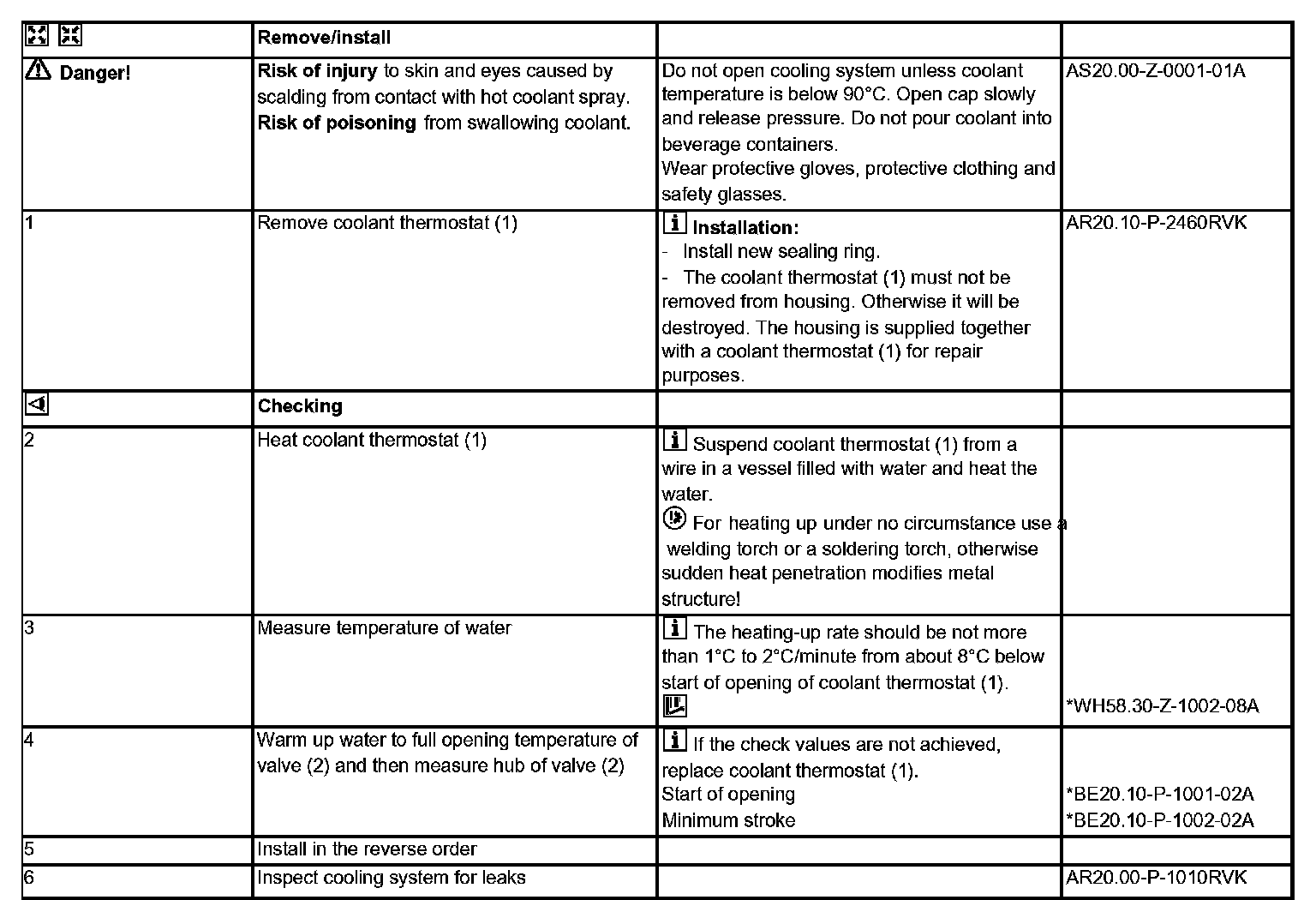

Remove/install Steps 1-6:

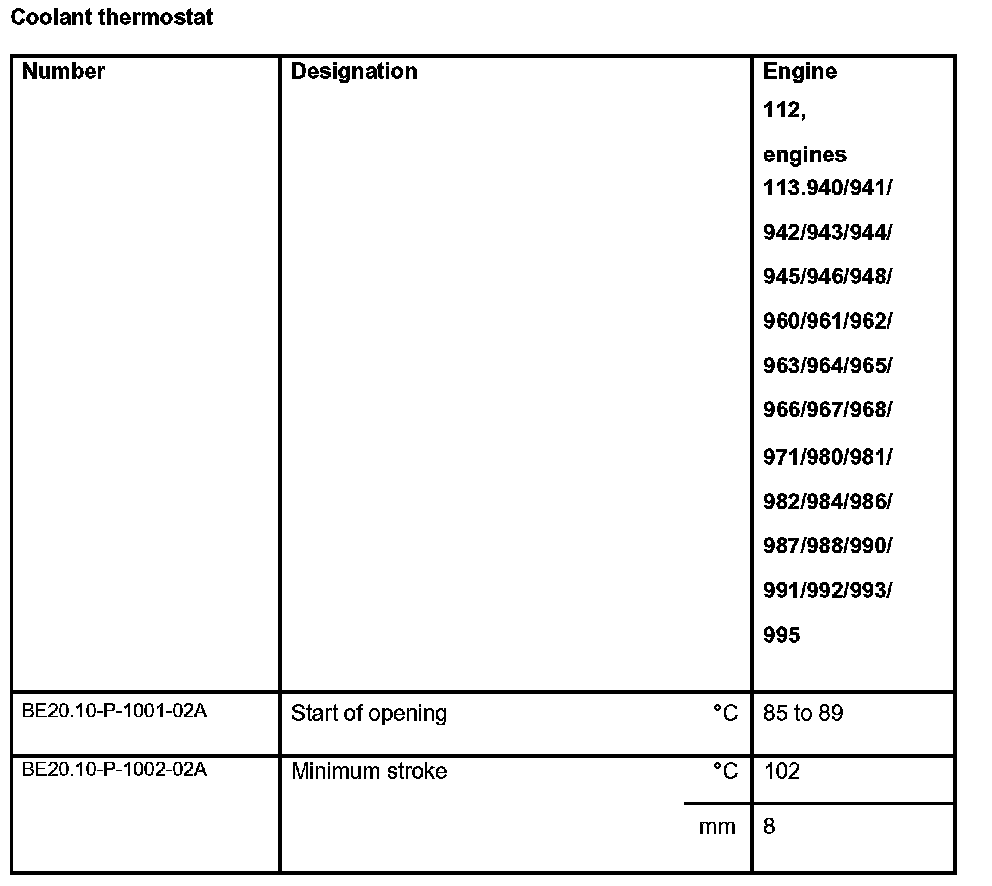

Coolant thermostat:

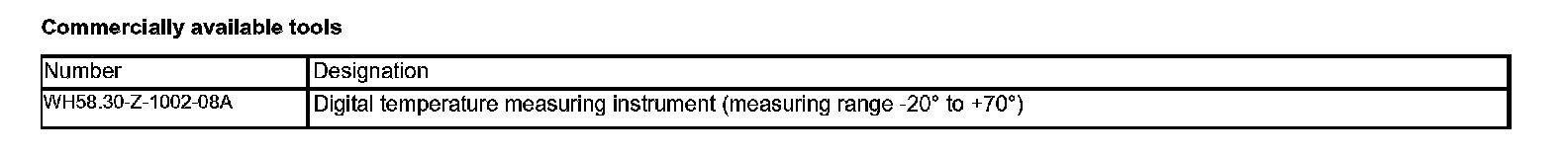

Commercially available tools:
