Function Diagrams

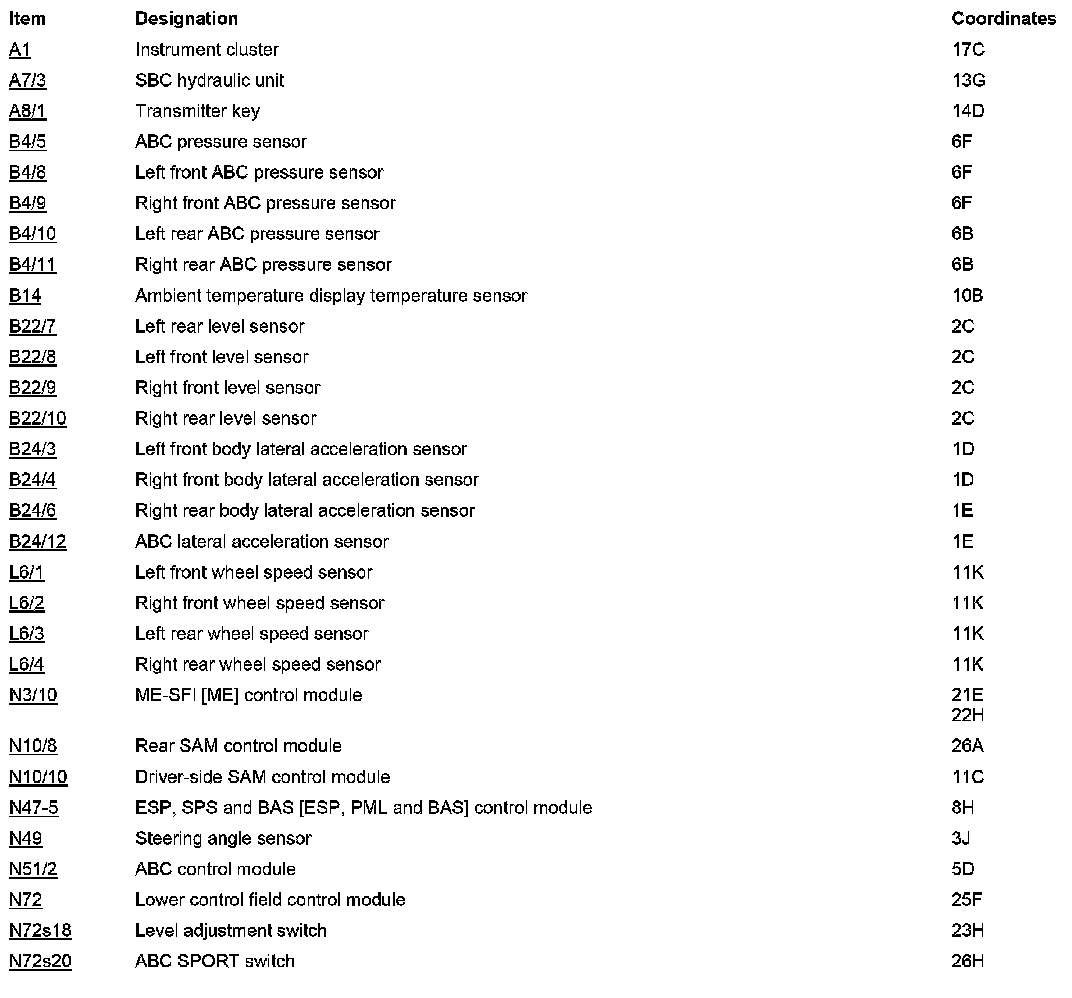

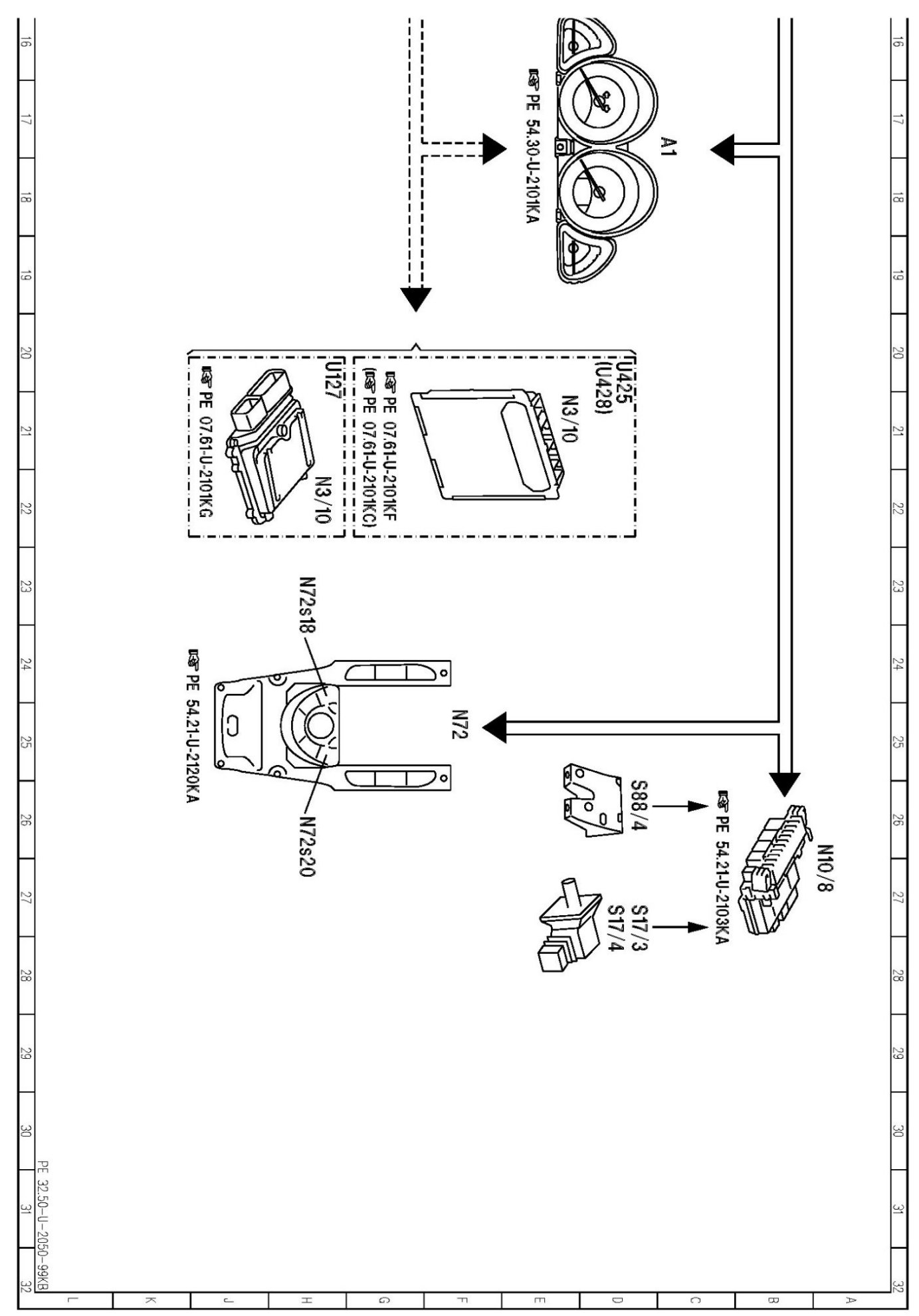

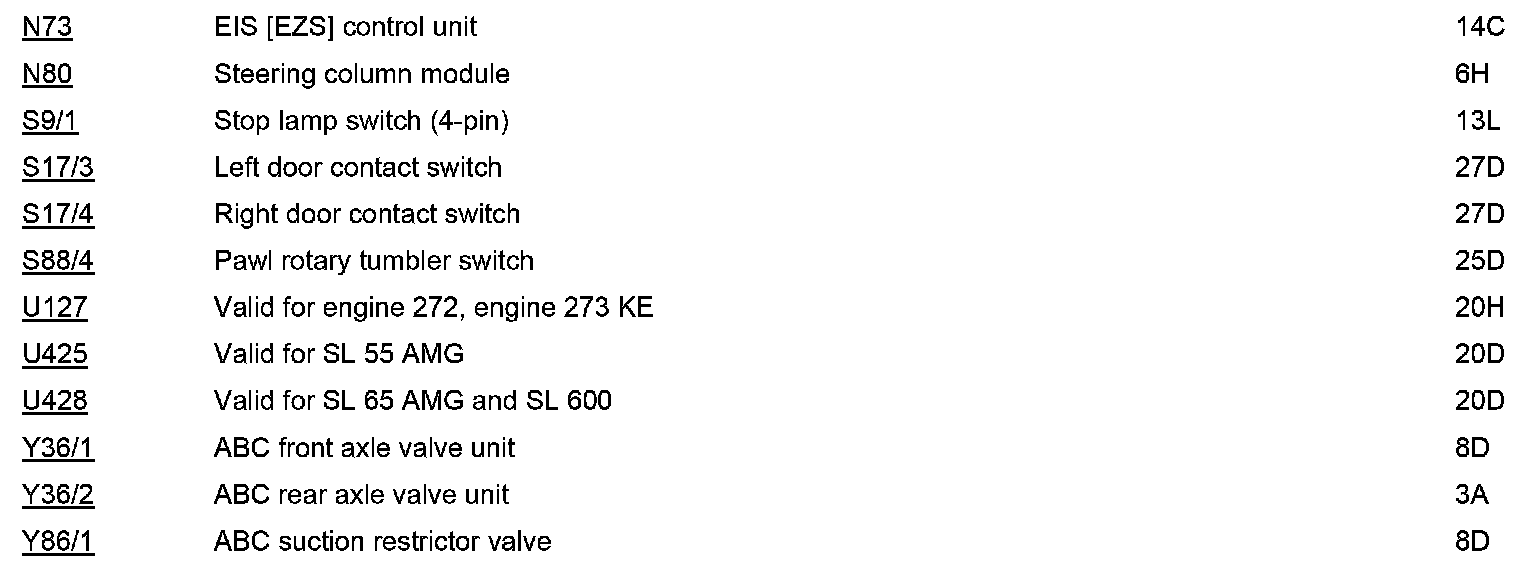

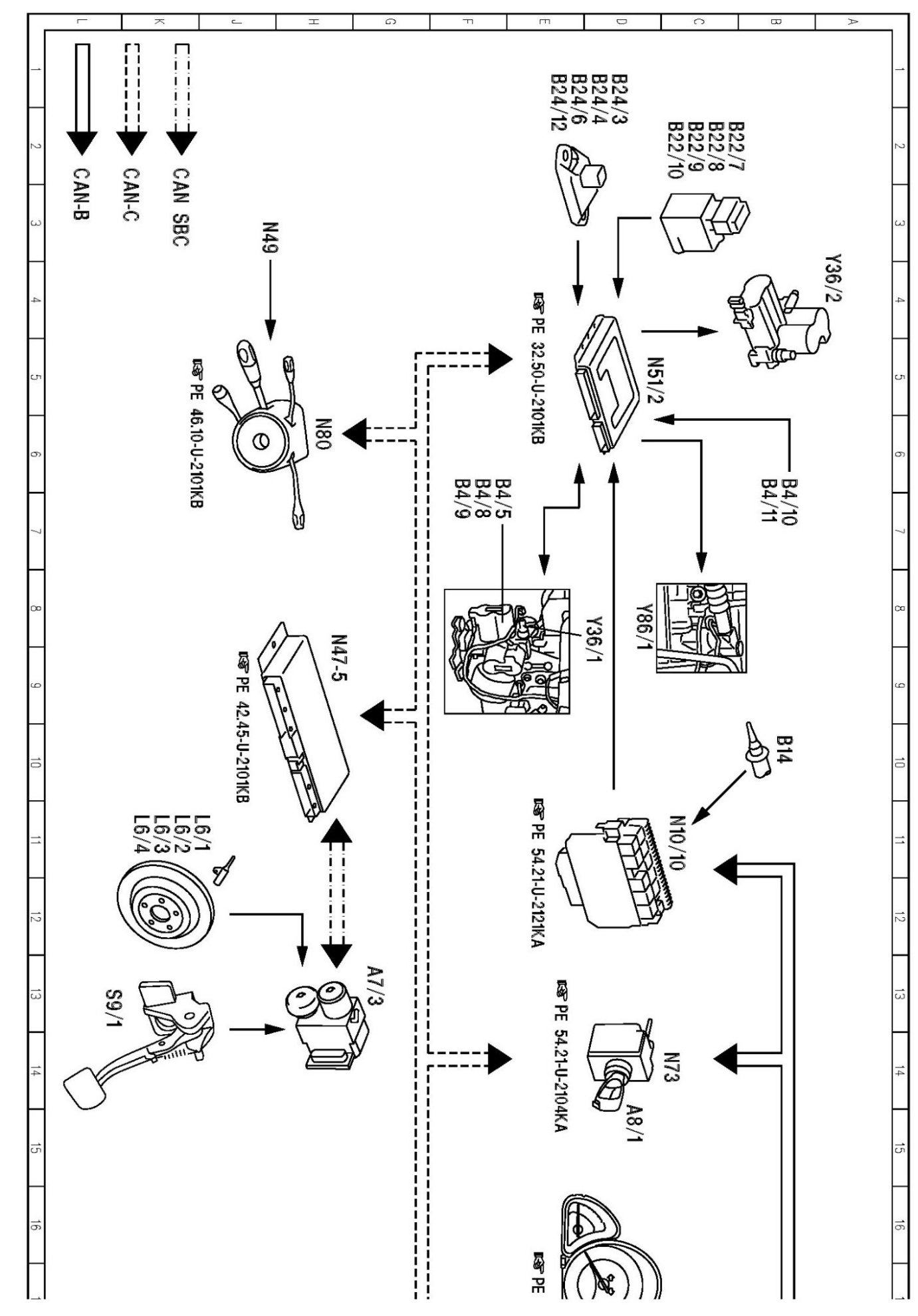

PE32.50-U-2050KB Electrical Function Diagram For Active Body Control (ABC)
- with CODE (487) Active Body Control (ABC)
- as of 03/01/06



















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
