PE91.29-U-2101KA Left Front Seat Control Module

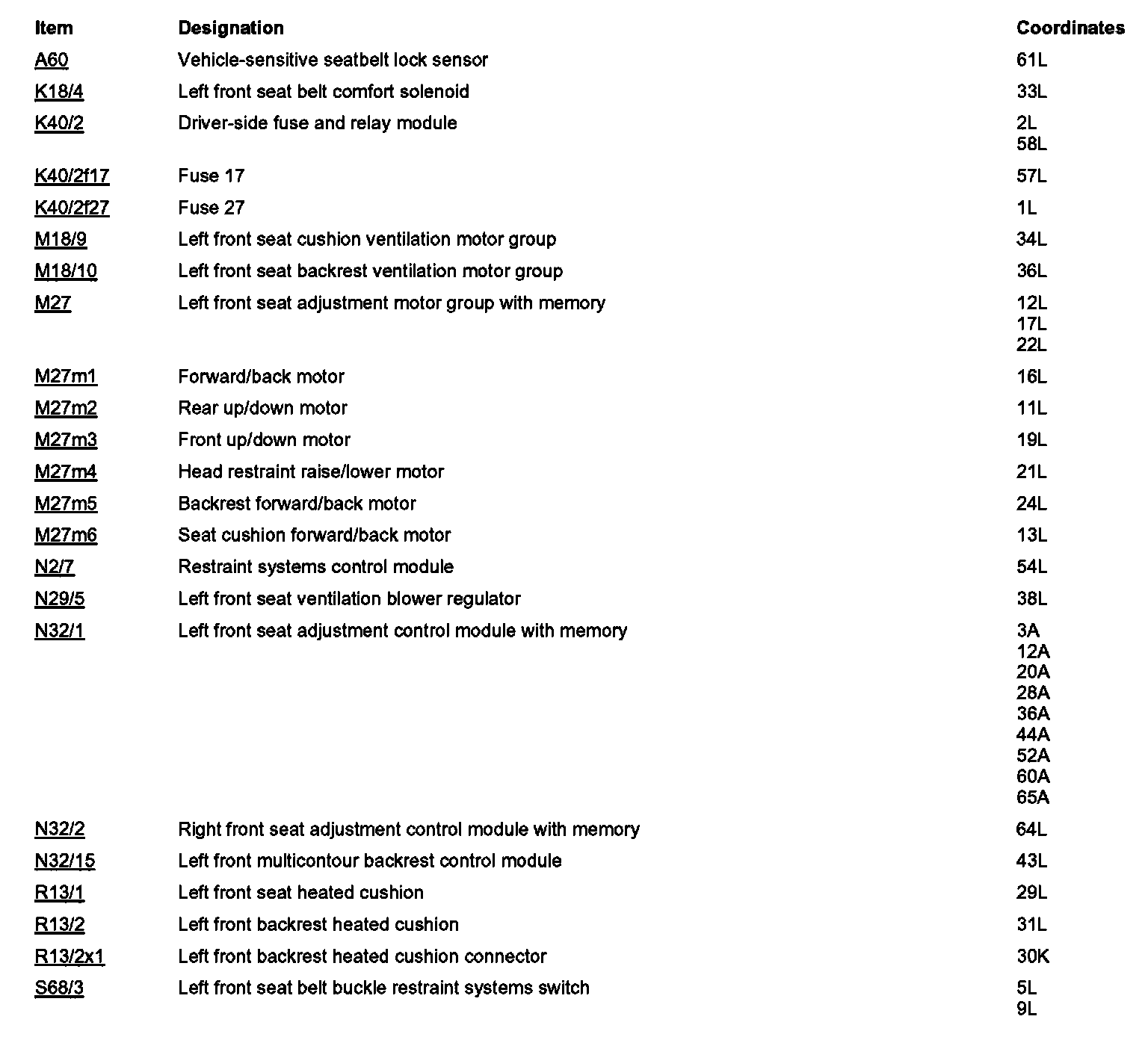

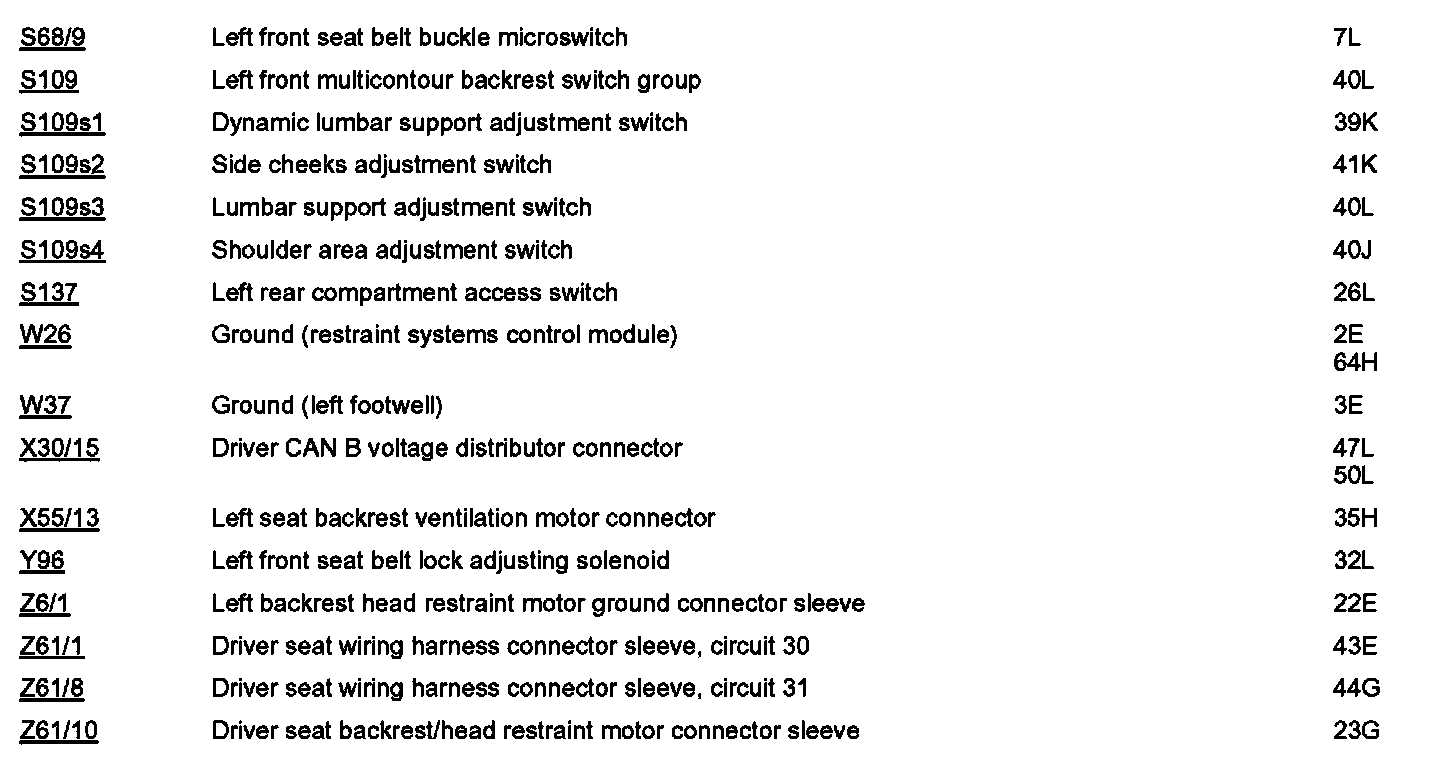

PE91.29-U-2101KA Left front seat control module































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
