PE82.60-P-2302KA Wiring Diagram For Digital Audio Broadcasting Control Unit System (DAB)

Wiring Diagram For Digital Audio Broadcasting Control Unit System (DAB) PE82.60-P-2302KA
- except CODE (494) USA version
- except CODE (498) Japan version
- control unit N87/3

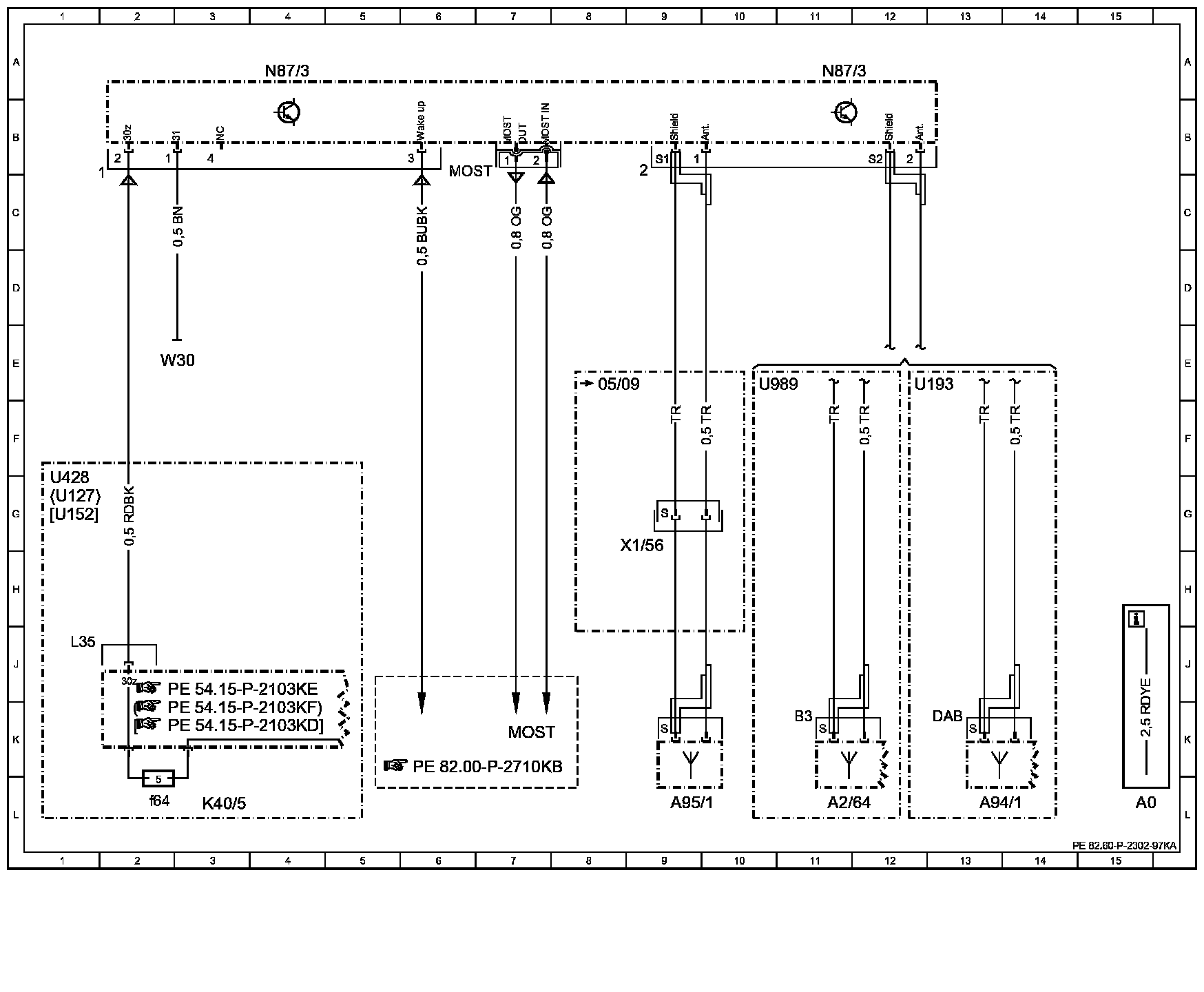

Wiring Diagram:

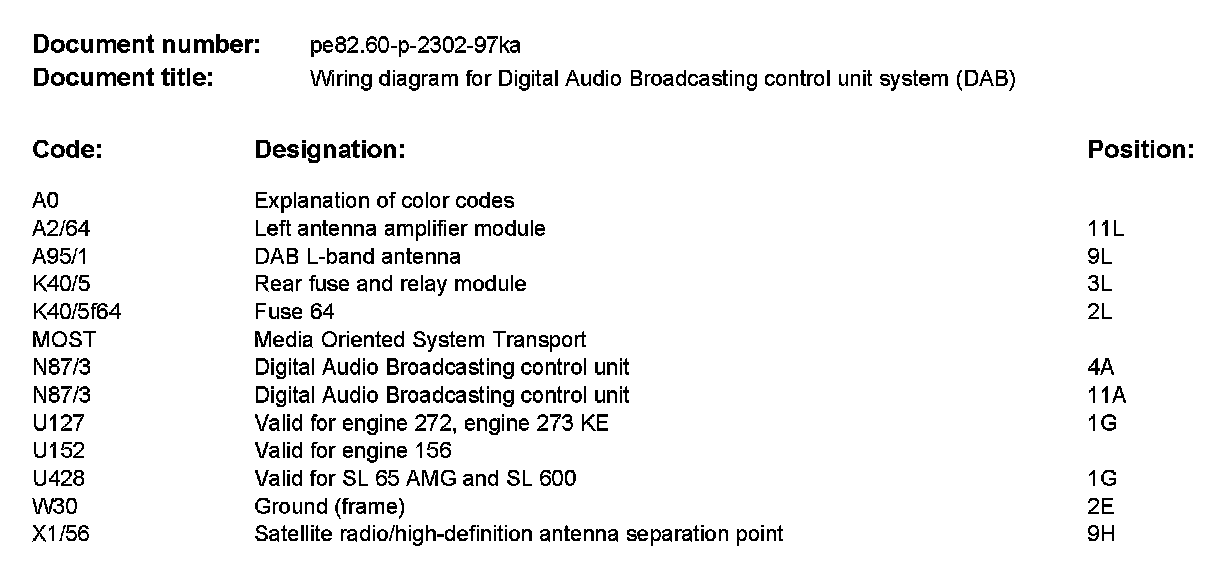

Component Description/Coordinates A0 To X1/56:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
